Key Technical Specifications
- Module Type: Analog input module
- Input Signal: 4–20 mA common input
- Channel Count: 16 channels
- Input Impedance: 300 Ω
- Normal-Mode Voltage: 50 V
- Normal-Mode Rejection: 60 dB at 50/60 Hz
- System Supply: 24 V DC ±4.0 V
- Module Current: Approximately 125 mA
- Bus Interface: Metso maxPAC I/O bus
- Mounting: maxPAC I/O chassis backplane
- Field Termination: Two 16-point Euro-style screw-clamp plugs
- Diagnostics: Front-panel status indication and module diagnostics
- Calibration: Self-calibration at power-up; periodic online temperature compensation
- Hot Replacement: Reference documentation states that maxPAC I/O modules may be inserted or withdrawn with 24 V DC and field power applied; verify site procedures before removal.
Product Introduction
The Metso Automation IOP302 is a 16-channel, 4–20 mA common analog input module for the maxPAC/maxDNA distributed control system. It receives process-current signals from transmitters and transfers measured values through the I/O bus to the DPU for monitoring and control.
The IOP302 uses 300 Ω input impedance, 50 V normal-mode voltage, and 60 dB normal-mode rejection at 50/60 Hz. Verify the chassis, bus address, jumper configuration, terminal plugs, and module condition before ordering; supplier listings for this legacy part contain conflicting descriptions.

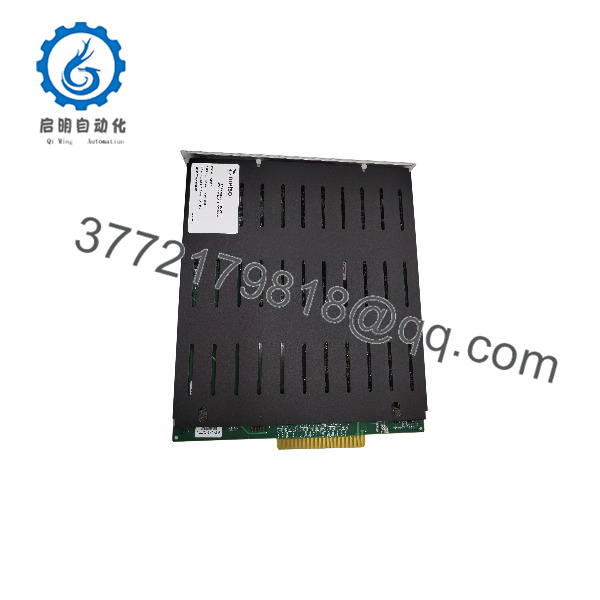

IOP302

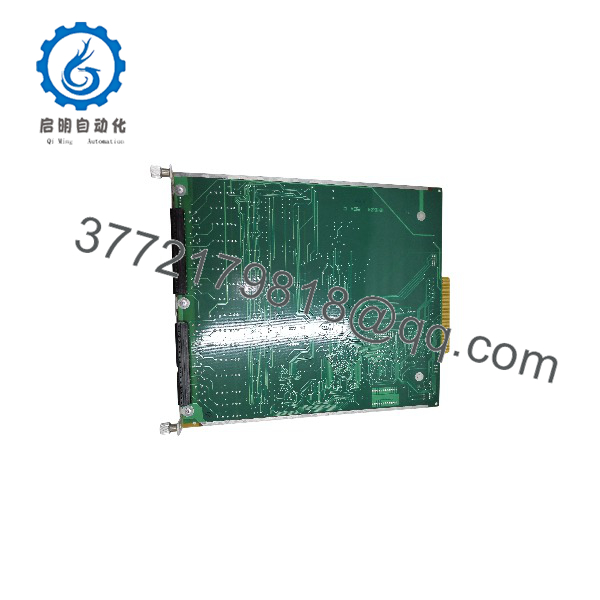

IOP302
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No module status indication | Missing 24 V DC system supply, blown module fuse, backplane fault | ✅ High | Measure 24 V DC ±4.0 V at the I/O backplane supply terminals; inspect the module fuse and adjacent-slot power | Check supply and backplane before replacing the IOP302 |
| All 16 channels read zero | Missing loop power or common return, incorrect field wiring, bus communication fault | ⚠️ Medium | Measure loop current directly at each transmitter circuit; verify common wiring and backplane communication status | Do not condemn the module until field power and return wiring are confirmed |
| One channel reads zero | Open loop, failed transmitter, loose terminal, damaged input channel | ⚠️ Medium | Measure current in series with the affected loop and compare it with a known-good channel | Repair the loop or replace the IOP302 only when the input circuit is proven good |
| Reading is consistently high or low | Incorrect transmitter range, wiring resistance, grounding issue, calibration/configuration error | ⚠️ Medium | Inject a known 4 mA and 20 mA test signal at the channel terminals and compare the DPU value | Check scaling and configuration before changing hardware |
| Values fluctuate on several channels | Noise, poor shield termination, unstable 24 V DC supply, grounding problem | ❌ Low | Measure supply ripple; inspect shield termination and route separation from AC or drive wiring | Correct power and grounding issues first |
| DPU reports module communication timeout | Incorrect bus address, poor backplane connection, I/O bus fault, failed module electronics | ✅ High | Compare the rotary address with the configuration; reseat the module and inspect bus diagnostics | Replace the module only after address and backplane checks |
| Channel values are shifted after replacement | Wrong jumper settings, incorrect slot configuration, incompatible revision | ✅ High | Photograph the original module settings; compare jumpers, address, slot assignment, and configuration database | Match the original hardware settings before commissioning |
| Intermittent faults after handling | ESD damage, oxidized edge connector, loose terminal plug | ✅ Medium | Inspect the connector and edge contacts; reseat using ESD protection and review diagnostic logs | Test the module on a known-good rack before field installation |
Support note: Send clear photos of the module label, connectors, jumpers, address settings, and diagnostic logs if the fault remains unresolved. Also provide the maxPAC chassis type and the DPU configuration.
Frequently Asked Questions (FAQ)
What system does the Metso IOP302 fit?
The IOP302 is documented as a maxPAC analog input module used with the Metso maxDNA distributed control system. It connects through the I/O chassis backplane and handles sixteen common 4–20 mA channels. Confirm the exact rack, DPU, and system revision before installation.
Is the a digital input module?
No. The documented is a 16-channel, 4–20 mA analog input module. Some reseller listings incorrectly describe it as a digital or general-purpose control module, so verify the original hardware guide and the nameplate before purchasing.
Can I use an as a direct replacement?
Usually, a same-model replacement is the lowest-risk option, but it still requires verification. Match the module address, jumper configuration, terminal plugs, chassis type, DPU configuration, and firmware or revision information. Do not assume that an IOP301, IOP303, or another I/O model has the same channel type or wiring.
Can I hot-swap the ?
The maxPAC hardware guide states that I/O modules may be inserted and withdrawn with 24 V DC and field power applied. However, site safety procedures, process risk, cabinet design, and maintenance rules take priority. Confirm the approved procedure with the system owner before removing a live module.
Will the control program be lost when I replace the module?
Replacing the normally does not erase the DPU application because the module provides field I/O rather than the primary control program. The replacement must still use the correct bus address and slot configuration. Back up the current configuration and record the original module settings before removal.
Why is this module cheaper than buying from the original manufacturer?
The is a legacy Metso Automation part, so industrial suppliers may offer new surplus, used, or refurbished inventory rather than current factory production. Ask for the exact condition, date code, photos, test report, warranty period, and return terms. Do not accept “new” without clarification of whether it means factory sealed or unused surplus.
What should I verify before placing an order?
Confirm the full model marking as , required condition, quantity, terminal plugs, shipping lead time, warranty, and return policy. Provide photos of your existing module and rack if possible. The seller should confirm that the unit was tested for 4–20 mA input operation and that its address and jumper settings can be documented before shipment.
