3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | GU-D08 |
| Compatible GCT Unit | GCU08AA-130 (and related 800 A class) |
| Power Supply | 19–21 VDC (guaranteed operating range) |
| Power Consumption | ≤90 W (typical under load conditions) |
| Control Interface | Optical fiber data link (HFBR-1521 transmitter / HFBR-2521 receiver) |
| Max Operating Frequency | 780 Hz |
| Peak On-Gate Current | Up to 1200 A (critical di/dt capability) |
| On-Gate Current Width | Configurable per application |
| Operating Temperature | Recommended ≤40 °C ambient (device limits higher) |
| Status Signal | Available for monitoring |
| Application | High-power inverters, DC choppers, induction heaters, motor drives |
4. Product Introduction
The Mitsubishi GU-D08 is the dedicated gate driver unit designed for use with the GCU08AA-130 Gate Commutated Turn-Off (GCT) thyristor. It supplies the precise high-current gate pulses required to turn the 800 A-class symmetrical GCT on and off while providing optical isolation via fiber-optic links.
This driver enables reliable operation in high-power inverter, chopper, and induction heating applications. It accepts a 19–21 VDC supply and delivers the controlled gate current waveforms needed for clean commutation. The unit is field-replaceable and commonly stocked as a spare for legacy power electronics systems that still rely on the GCU08AA-130 series.

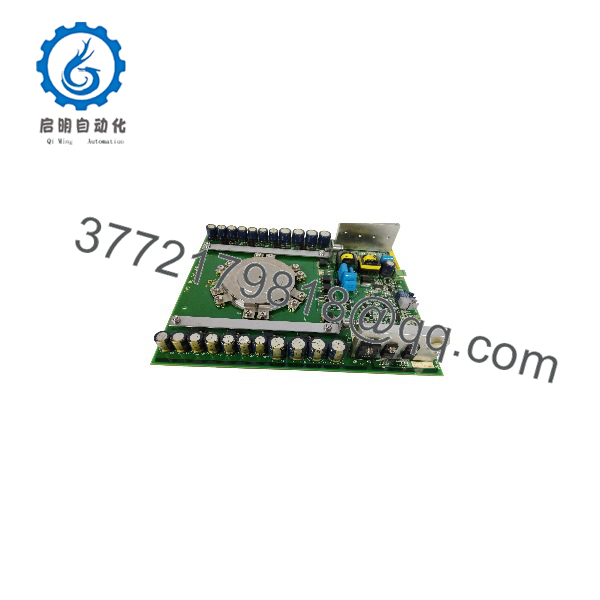

GU-D08

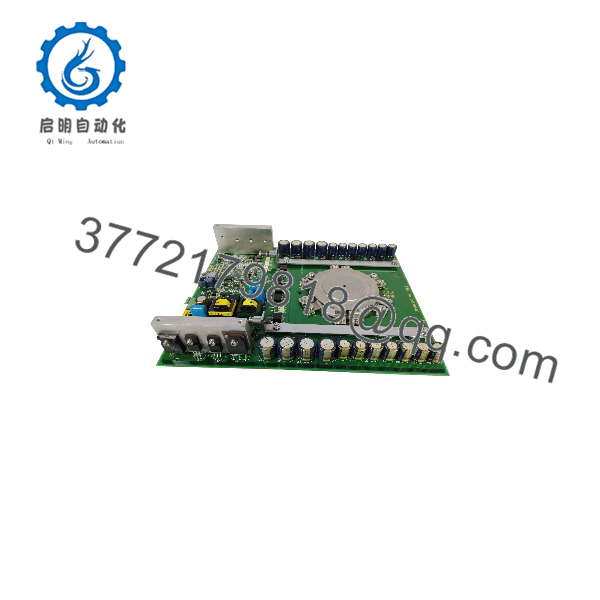

GU-D08
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| GCT fails to turn on | Missing or low gate supply voltage | ✅ High | Measure 19–21 VDC at driver power terminals | Confirm supply is within range and stable before replacing driver |
| No response to control signal | Optical fiber link failure or dirty connectors | ✅ High | Inspect fiber ends; verify transmitter/receiver LEDs if present | Clean fiber connectors; test with known-good fiber pair |
| Excessive heating of driver | Overloaded gate current or high ambient | ✅ Medium | Check actual frequency and duty cycle against ratings | Reduce operating frequency or improve cooling; verify GCT matching |
| Status signal indicates fault | Internal driver protection or GCT short | ✅ High | Monitor status output; measure G-K voltage | Isolate GCT; if status clears with GCT disconnected, replace GCT |
| Intermittent commutation | Incorrect gate timing or fiber delay | ❌ Low | Scope gate current waveform against control signal | Timing is usually set by the system controller; check cable lengths |
If the fault persists after basic checks, provide measured supply voltage, fiber status, and any status signal readings to technical support.
6. Frequently Asked Questions (FAQ)
Q: Is the GU-D08 still in production?
A: No. It is an older-generation gate driver paired with the GCU08AA-130 GCT series. Genuine new-surplus units remain available from secondary stock, but long-term availability is limited. Confirm form-fit-function compatibility with any newer GCT driver before ordering.
Q: Can I use the GU-D08 with a different GCT module?
A: It is specifically matched to the GCU08AA-130 (800 A class). Using it with a mismatched GCT can result in insufficient gate current or damage. Always verify the GCT part number and gate requirements against the original datasheet.
Q: What power supply do I need?
A: A regulated 19–21 VDC supply is required. The driver draws significant current under switching conditions. Undersized supplies cause voltage sag and unreliable turn-on. Do not exceed 25 V even briefly.
Q: Does the optical fiber need to be a specific type?
A: Yes. The original design uses HFBR-1521 / HFBR-2521 style fiber links. Substituting incompatible fiber or exceeding recommended length can introduce delay or signal loss. Keep fiber runs short and protect connectors from contamination.
Q: Why is the secondary-market price lower than original Mitsubishi pricing?
A: These are new-surplus or carefully tested units from decommissioned systems. They are fully functional when verified, but they do not carry a current factory warranty. Most reputable sellers provide a 12-month functional warranty.
Q: Is this the same as the CNC spindle thyristor array board sometimes labeled GU-D08?
A: Some CNC spindle drive boards carry the GU-D08 marking and alternate numbers such as 80173-109-01. Confirm the exact application and physical appearance before ordering. The GCT gate driver and the CNC array board are different assemblies even if they share a similar designation.
Q: Can the GU-D08 be repaired?
A: Field repair is not practical. The high-current gate circuitry and optical interface are specialized. Replacement with a verified unit is the standard approach when the driver fails.
