Modicon AS-B883-200 High-Density Discrete Output Module

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The Modicon AS-B883-200 is a high-density 32-point 24 V DC transistor output card engineered for 800 Series PLC rack architectures in automated packaging, automotive assembly, and continuous process plants. It delivers fast-switching, solid-state actuation for solenoid valves, control relays, indicator panels, and solid-state starters operating on 24 V DC control logic.

Supplied strictly as Brand New Surplus, this module gives plant maintenance and procurement managers an immediate insurance policy against long OEM lead times and elevated marketplace premiums. Sourcing New Surplus mitigates the operational hazards of used or refurbished alternatives—such as degraded switching transistors, thermal stress fractures, or intermittent backplane trace faults—ensuring high turnover efficiency and zero unscheduled downtime on legacy control racks.

5. Installation & Configuration Guide

1.Stage 1: Pre-Installation (Prep & Safety):Safety Lockout & Site Prep.

Disconnect and lock out main power to the PLC rack and external 24 V DC field load power supplies using standard lock-out/tag-out (LOTO) procedures. Strap on a grounded ESD wrist band before handling electronic cards. Photograph the existing module’s field wiring connections, group jumpers, and terminal block labeling for complete reference.

Verification: Check field output terminals with a calibrated multimeter to verify 0 V DC potential before disconnecting wiring arms.

2.Stage 2: Removal:Safe Card Extraction.

Loosen the top and bottom retaining screws securing the module faceplate to the rack. Release the field wiring terminal block latch and carefully swing the terminal assembly away from the module face to keep existing wiring intact. Pull the card straight outward along the housing guides to avoid bending backplane connector pins.

Verification: Visually inspect the backplane slot for metallic debris, contamination, or damaged pins.

3.Stage 3: Installation (Clone & Seat):Keying & Installation.

Check that the rear mechanical keying pins on the new AS-B883-200 card line up with the designated slot keying on the rack to avoid inserting an incorrect module type. Slide the new card evenly into the sub-rack guides until the backplane connector fully seats. Tighten top and bottom retaining screws, then snap the pre-wired terminal block back into position.

Verification: Confirm terminal block retaining latches click securely into place on both sides.

4.Stage 4: Power-On & Testing:Cold Checks & Boot Sequence.

Apply power to the main PLC rack while leaving field output power disconnected. Observe front panel status indicators during initial system initialization to ensure power rails are stable and no red fault LEDs illuminate. Force individual output bits via programming software to confirm channel status LEDs turn on, then energize field load power to verify field output activation.

Verification: Confirm active output indicators match corresponding channel logic commands from the CPU.

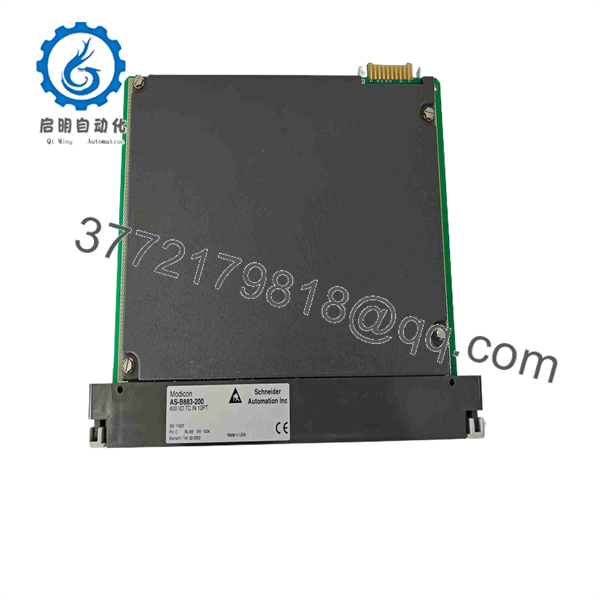

AS-B883-200

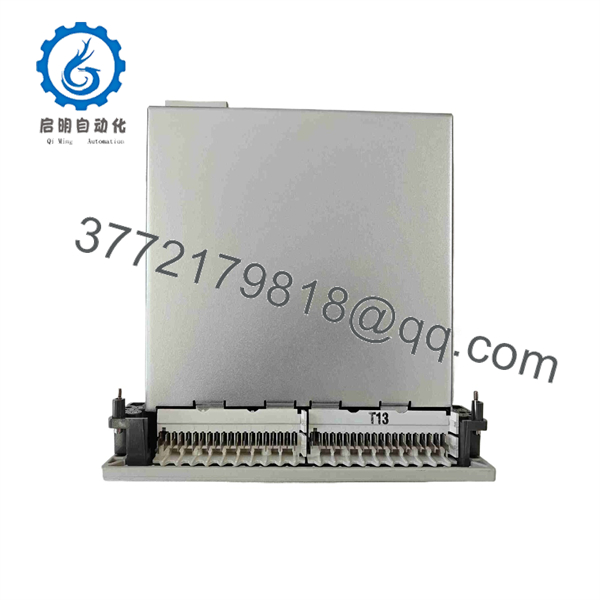

AS-B883-200

6. Firmware/Software Versions & Upgrade Notes

• Target Hardware Revision: Hardware Rev B / Rev C (Fully backplane-compatible with standard 800 Series backplane controllers).
• Cross-Compatibility Restrictions: The AS-B883-200 acts as a passive discrete output slave module, making it independent of main CPU firmware releases. Verify that the physical slot configuration in Modsoft, ProWORX 32, or EcoStruxure matches the module’s rack physical location.
• Replacement Guidance: Inductive DC loads (solenoids, relay coils) wired to solid-state output points must be fitted with external flyback diodes across the load terminals. Suppressing inductive spikes prevents voltage transients from damaging output transistor stages or triggering over-current faults.

7. Frequently Asked Questions (FAQ)

Q: Is this Modicon AS-B883-200 card brand new, or has it been refurbished?

A: This module is 100% Brand New Surplus. It has never been deployed in an active control system, never pulled from a decommissioned plant, and has zero circuit-level repairs. It ships in original anti-static packaging with clean edge contacts.

Q: Why should we choose New Surplus over lower-cost refurbished boards?

A: Refurbished high-density cards frequently suffer from silent thermal degradation on internal transistor arrays and field-side isolation components. A single channel failure can halt an entire production line. Paying a minor premium for New Surplus guarantees fresh silicon components, long operational lifespan, and eliminates multi-thousand-dollar downtime events.

Q: Can I hot-swap the AS-B883-200 while the PLC rack is powered ON?

A: No. Hot-swapping 800 Series modules can induce voltage spikes across backplane lines, disrupt backplane bus communication, or cause an immediate controller trip. Always isolate rack power and field supply voltage before inserting or removing the card.

Q: Does this module require parameter programming or DIP switch configuration before insertion?

A: No. The AS- is a hardware-configured discrete output card. It contains no DIP switches or user-configurable jumpers. Output channel addressing is governed entirely by the physical slot placement within the 800 Series I/O rack.

Q: What warranty is provided with this New Surplus board?

A: We back this AS- module with a comprehensive 1-year functional warranty from the date of shipment. Every card undergoes rigorous visual, pin, and electrical verification prior to dispatch.
