Key Technical Specifications
| Parameter | Specification |
| Supply Voltage | 24 V DC (18 to 30 V DC range, 100 mA max without valve load) |
| Command Inputs | Differential inputs for ±10 V voltage or 4–20 mA current loops |
| Feedback Inputs | Transducer feedback inputs (0 to ±10 V DC, configurable gains) |
| Control Architecture | Proportional + Integral (PI) closed-loop control |
| Maximum Output Current | Configurable up to ±100 mA (drives 200 Ω coil loads) |
| Dither Generator | Adjustable frequency (100–250 Hz) and amplitude (0–20% of max current) |
| Mounting Style | 35 mm DIN rail mount (EN 50022) |
| Operating Temperature | 0 to +60°C |
| Housing Construction | High-impact polyamide enclosure with screw terminal blocks |
| Status Indicators | LEDs for Power (Vs), In-Position, and Valve Enable status |
Product Introduction & Supply Chain Strategy
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Moog G122-829A-001 functions as a DIN rail-mounted, user-configurable PI servo amplifier designed to close control loops for electrohydraulic proportional valves, servovalves, and variable-displacement pumps.
Maintaining this module as New Surplus provides crucial risk protection for high-precision hydraulic machinery. Refurbished analog servo cards often suffer from thermal drift in internal op-amps, dried potentiometers, and degraded dither generators that induce spool sticking or erratic positioning. A minor calibration shift on a worn card can cause cylinder overshoot or hydraulic hammer, leading to expensive mechanical breakage. Sourcing verified New Surplus delivers full factory lifespan, stable tuning response, and immediate drop-in reliability without risking mission-critical motion control on second-hand electronics.

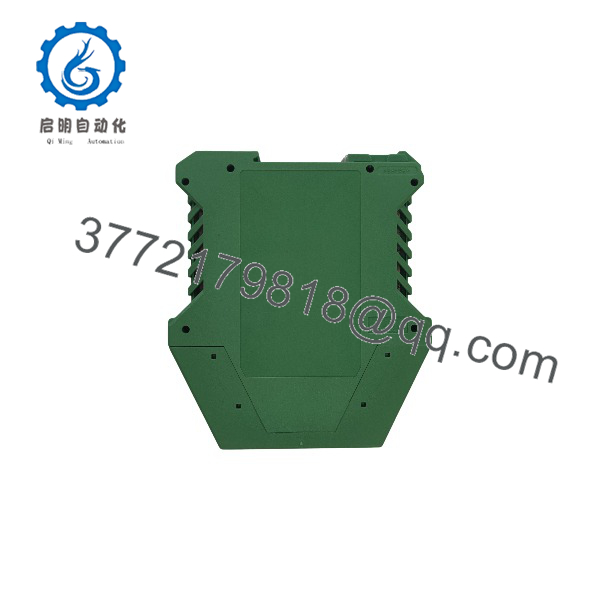

G122-829A-001

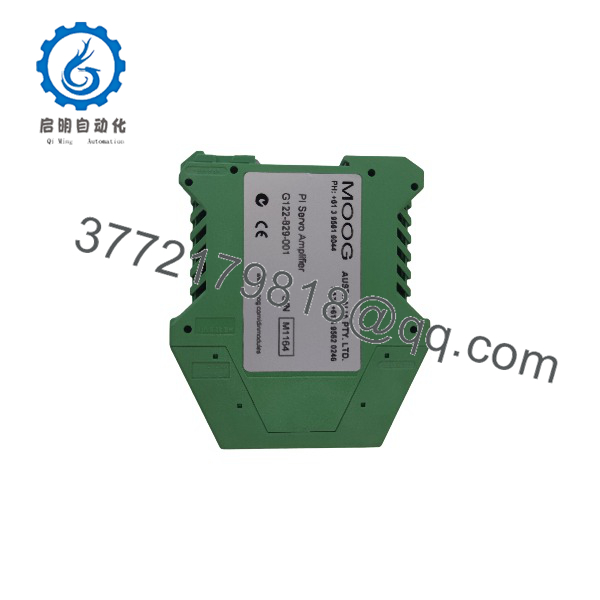

G122-829A-001
Installation & Configuration Guide
1.Pre-Installation (Prep & Safety):De-energize 24V supply and verify hydraulic isolation.
Isolate panel power using Lock-Out/Tag-Out (LOTO) protocols and depressurize the hydraulic circuit before touching control hardware. Wear a grounded ESD wrist strap. Document existing potentiometer dial positions (P-gain, I-gain, Dither) and DIP switch jumper settings on the current module with detailed photographs.
2.Removal:Disconnect wiring block and disengage DIN rail clip.
Label each wire clearly before loosening the screw terminal connections (terminals 1 through 16). Insert a flathead screwdriver into the bottom DIN rail release tab and pull downward to unclip the module from the mounting rail.
3.Installation (Clone & Seat):Set internal jumpers and mount on DIN rail.
Remove the side cover of the new G122-829A-001 to configure internal jumpers (input voltage/current mode, feedback polarity, and valve output range) to match the removed card exactly. Snap the module onto the 35 mm DIN rail and reconnect field wiring according to the terminal diagram.
4.Power-On & Testing:Calibrate zero bias, gain settings, and dither frequency.
Apply 24 V DC power and confirm the green power LED illuminates. Set command signal to zero and adjust the zero potentiometer until valve spool offset is eliminated. Enable the loop, tune P and I gain potentiometers for optimal transient response without oscillation, and set dither amplitude to prevent valve hysteresis.
Firmware/Software Versions & Upgrade Notes
- Analog Hardware Architecture: The G122-829A-001 is an analog processing module that operates without digital microprocessor firmware or software downloads.
- Hardware Revisions: Ensure internal jumper positions for input signal scaling (e.g., ±10 V vs. 4–20 mA) match system engineering drawings before powering the loop.
- Backward Compatibility: Fully compatible with legacy Moog G122 series amplifiers, provided output current ranges (e.g., ±10 mA, ±50 mA, ±100 mA) are jumpered to match the target servovalve coil resistance.
- Tuning Warning: Never adjust gain potentiometers while the machine is executing a high-speed motion cycle. Uncontrolled gain increases can cause immediate hydraulic instability, pressure spikes, and mechanical collisions.
Frequently Asked Questions (FAQ)
Q: Is this Moog amplifier completely unused OEM stock?
A: Yes, this item is strictly New Surplus in its original packaging. It has never been installed in a control cabinet, used as a temporary field service test tool, or subjected to circuit repairs.
Q: Why choose New Surplus over a lower-cost refurbished servo card?
A: Refurbished analog cards frequently retain aged potentiometers and drift-prone capacitors, causing thermal calibration drift during daily operation. Buying New Surplus ensures exact circuit tolerances, stable closed-loop response, and zero risk of hidden component wear.
Q: Is the G122-829A-001 an obsolete model, and why should I stock a spare?
A: The G122 series is a mature platform widely deployed across plastic injection molding, metal forming, and power generation systems. Maintaining 1–2 New Surplus units in buffer stock eliminates long sourcing delays when an unexpected amplifier failure stops a production line.
Q: Can this amplifier directly power a proportional valve coil?
A: Yes, the -829A-001 provides an integrated power stage capable of supplying up to ±100 mA directly to servovalve or proportional valve coils, eliminating the need for external power drive cards.
Q: How does the dither feature work on this module?
A: The integrated dither generator overlays a low-amplitude, high-frequency AC current onto the main DC output signal. This keeps the hydraulic valve spool in continuous microscopic motion, overcoming mechanical friction and hysteresis without altering average flow.
Q: What warranty coverage applies to this module?
A: All New Surplus Moog modules include a full 1-year replacement warranty. If any functional hardware defect occurs under standard operating conditions within 12 months, we replace the unit immediately from our available inventory.
