Key Technical Specifications
- Model: 01-W3853B-01F
- Brand: Motorola
- Product category: VMEbus board (likely SBC or processor module)
- Bus standard: VME/VME64
- Form factor: VME board (slot requirements vary; verify crate specifications)
- CPU: Not publicly confirmed; likely PowerPC or 68040-class (verify with datasheet)
- Memory: Not publicly confirmed; verify installed RAM on the exact unit
- I/O interfaces: Not publicly confirmed; may include serial, Ethernet, or PMC slots
- Operating temperature: Commercial or extended (model-dependent; verify)
- Warranty typically offered: 90 days to 1 year (varies by supplier)
- Use case: Legacy VME rack processing, industrial control, or embedded systems
- Compatibility note: Exact revision, CPU speed, memory, and firmware must be verified before substitution
Product Introduction

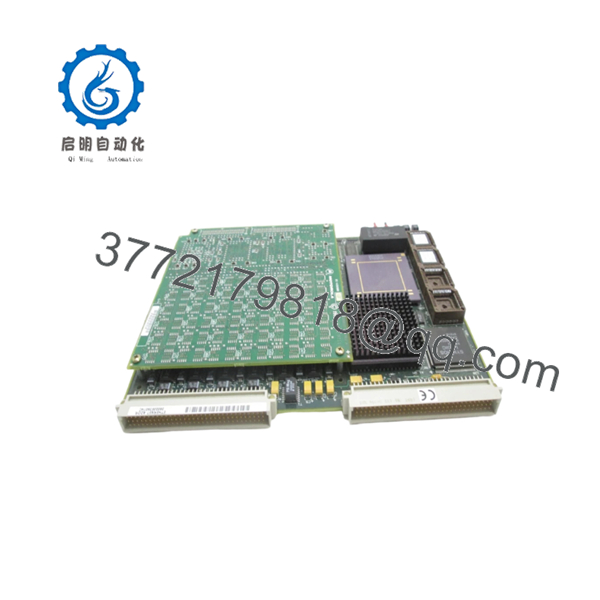

Motorola 01-W3853B-01F is a VMEbus board from Motorola’s legacy 01-W series, typically used as a processor module or SBC in older VME racks for industrial control and embedded automation systems.
This board is chosen as a direct replacement when a plant must keep an existing VME chassis operational. Buyers focus on matching the exact CPU speed, memory size, firmware version, and I/O configuration to avoid boot or driver failures in the field.
- 01-W3853B-01F
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power LEDs, no boot | Missing backplane power or failed board | ✅ High | Measure VME rails (5 V, 12 V, -12 V) at the slot with a multimeter | If rails are correct and no LEDs, the board may be faulty |
| Boots but hangs early | Memory mismatch or firmware issue | ✅ High | Check installed memory and compare firmware version to the original system spec | Match memory and firmware before swapping the card |
| I/O not responding (serial/Ethernet) | Cable, config, or board PHY fault | ⚠️ Medium | Swap cable, test another port, and verify link/status LEDs | If link still fails, the board’s I/O may be damaged |
| Board not detected in VME crate | Poor seating or backplane issue | ✅ High | Reseat the card, inspect edge connector, and confirm correct slot voltage | Clean contacts and reseat firmly before replacing |
| Random resets under load | Power instability or thermal issue | ⚠️ Medium | Measure VME rails under load and monitor board temperature | Check crate PSU, grounding, and cooling; add buffer if needed |
Contact technical support with clear photos of LEDs, slot seating, and any diagnostic logs if the fault is unclear.
Frequently Asked Questions
Q: What exact CPU and memory does 01-W3853B-01F have?
A: That information is not publicly confirmed in accessible datasheets. You must verify the CPU type, speed, and installed memory on the exact unit before ordering or installing.
Q: Is this a direct replacement for every Motorola 01-W board?
A: No. The 01-W series has multiple variants with different CPUs, memory, and I/O. Match the exact part number and revision before swapping.
Q: Can I hot-swap this VME board?
A: No. VMEbus boards are not designed for hot-swapping. Power down the crate before installing or removing the card.
Q: Will my existing firmware/driver work with this board?
A: Only if the firmware version and OS config match. Legacy VME boards often require specific driver versions for VxWorks, OS-9, or other RTOS. Confirm the exact firmware before ordering.
Q: Why is this board cheaper than a new OEM part?
A: Because it’s obsolete and typically sold as used/tested stock. New OEM units are no longer in mass production, so prices drop but availability is limited.
Q: What condition should I expect?
A: Most units are used and tested. You’ll get a board with visible signs of prior use, but functional. Ask for test photos, firmware version, and status LED behavior before purchase.
Q: What warranty do suppliers usually offer?
A: Common warranties range from 90 days to 1 year. Check the specific supplier’s terms, as obsolete stock often carries shorter coverage than new production.
Q: What should I verify before ordering?
A: Confirm the exact part number, board revision, CPU speed, memory size, I/O interfaces, and the crate/backplane type. A mismatch here is the fastest way to lose time during installation.
