3. Key Technical Specifications
- Manufacturer Part Number: 885 72739840
- Model Designation: MC-103-02Z
- Product Category: Printed Circuit Board (PCB) for marine automation
- Primary Application: Bridge maneuvering system and main engine control interface
- Compatibility: NABCO main engine remote control systems (M-800 series and related)
- Typical Use Environment: Shipboard engine control rooms and bridge consoles
- Form Factor: Standard industrial/marine PCB card
- Condition Options: New Surplus or tested used units available
- Note: Exact voltage, current draw, connector pinout, and firmware revision must be verified against the original installed board and OEM documentation before installation.
4. Product Introduction
The NABCO MC-103-02Z (part number 885 72739840) is a printed circuit board used in marine main engine remote control and bridge maneuvering systems. It serves as a critical interface card within NABCO control architectures commonly found on vessels equipped with MAN B&W and similar engines.
This board handles control and signal processing functions essential for engine start, stop, reversing, and remote operation from the bridge or engine control room. Buyers select the MC-103-02Z when replacing a failed unit in an existing NABCO system because it matches the original form, fit, and function. Always confirm the exact revision and system configuration against the vessel’s drawings before ordering.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No response from bridge telegraph or remote control | Power supply failure or blown fuse upstream | ❌ Low | Measure supply voltage at the control cabinet terminals with a multimeter | Verify PSU and fuses first; do not replace the PCB until power is confirmed |
| Specific control functions (start/stop/reversing) fail while others work | Faulty PCB or degraded component on MC-103-02Z | ✅ High | Check status LEDs on the board (if present) and compare with system diagnostic logs | Swap with a known-good board only after isolating power; document original switch settings |
| Intermittent communication or control lag | Loose connector, corrosion, or intermittent board fault | ✅ Medium | Inspect edge connectors and wiring for oxidation or damage; reseat the board | Clean contacts if needed; if problem persists after reseating, replace the PCB |
| System throws communication or fault alarms after board swap | Firmware or configuration mismatch | ✅ High | Photograph original board DIP switches/jumpers and note any revision markings before removal | Mirror exact physical configuration; contact support with photos if alarms remain |
| Board powers up but no output signals | Downstream actuator, solenoid, or wiring issue | ❌ Low | Check continuity and voltage at output terminals under commanded conditions | Trace the signal path beyond the PCB before condemning the card |
If diagnostics remain unclear, provide clear photos of the board (both sides), the system diagnostic screen or log, and the exact alarm text to technical support.

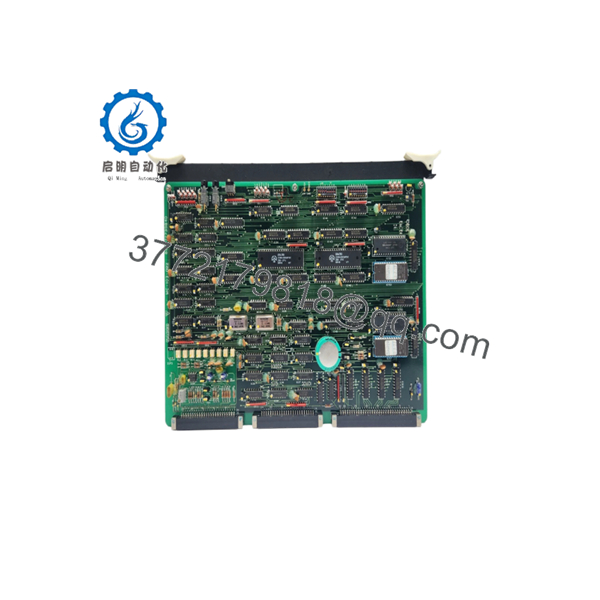

MC-103-02Z 885 72739840

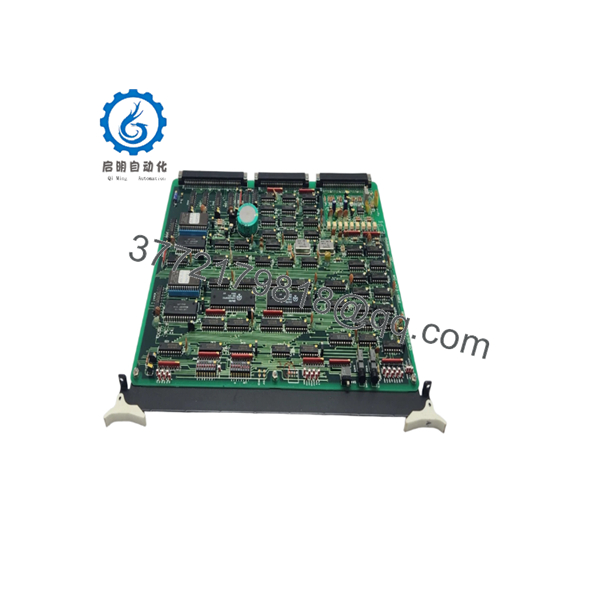

MC-103-02Z 885 72739840
6. Frequently Asked Questions (FAQ)
Q: Is the NABCO MC-103-02Z (885 72739840) a direct drop-in replacement for the MC-103-01A or other MC-103 variants? A: It is the same part-number family and is frequently used as a functional replacement in NABCO bridge and main-engine control systems. However, always compare the physical revision markings, connector layout, and any DIP-switch or jumper settings on the original board. Slight hardware or firmware differences between suffixes can exist. Verify against your vessel’s drawings before installation.
Q: What is the condition of the boards you supply? A: We offer New Original (New Surplus) units when available and fully tested used/refurbished boards. Every unit undergoes visual inspection, power-on checks, and functional verification where a test setup exists. Test photos and reports are available on request. Condition is clearly stated on the quotation.
Q: Can I hot-swap this PCB while the system is powered? A: No. Power down the control cabinet completely before removal or insertion. Hot-swapping risks damage to the board, backplane, or connected devices and can create unexpected engine control behavior. Follow standard lock-out/tag-out procedures.
Q: Will my existing configuration and settings be retained after replacement? A: Configuration is typically stored in hardware settings (DIP switches, jumpers) or in other system modules, not solely on this board. Photograph the original board’s switch positions and any labels before removal and duplicate them exactly on the replacement. Confirm system behavior after power-up.
Q: Why is this priced lower than a new unit from the OEM? A: New Surplus and professionally tested used boards come from excess inventory or decommissioned systems. They are not factory-fresh sealed stock from the current production line. We test them and provide a warranty, but the price reflects secondary-market reality rather than OEM list pricing.
Q: What warranty do you provide? A: Standard coverage is 1 year on New Surplus units and a defined period (typically 6–12 months) on tested used boards. Warranty covers functional failure under normal operating conditions. Physical damage, incorrect installation, or use outside specified conditions voids coverage.
Q: Do you have the exact firmware or revision I need? A: We document the visible markings and, where possible, the firmware version on each board. If your system requires a specific revision range, state it when ordering. We will match as closely as available stock allows and advise if a different revision is proposed.
