NABCO MC-151-01B Automatic Door Controller Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

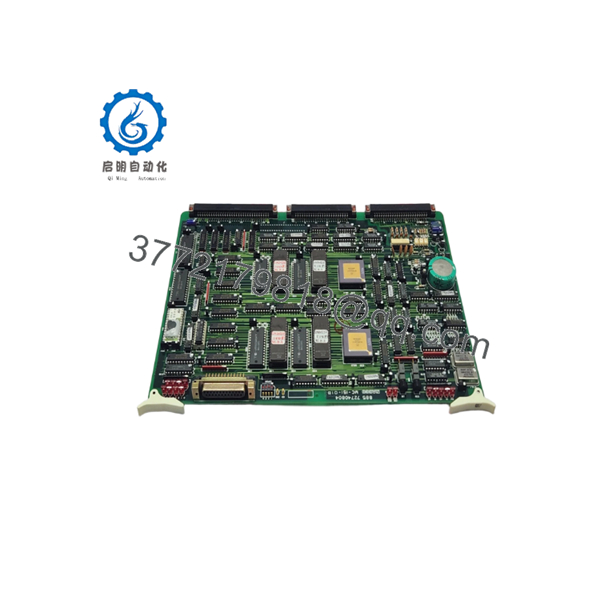

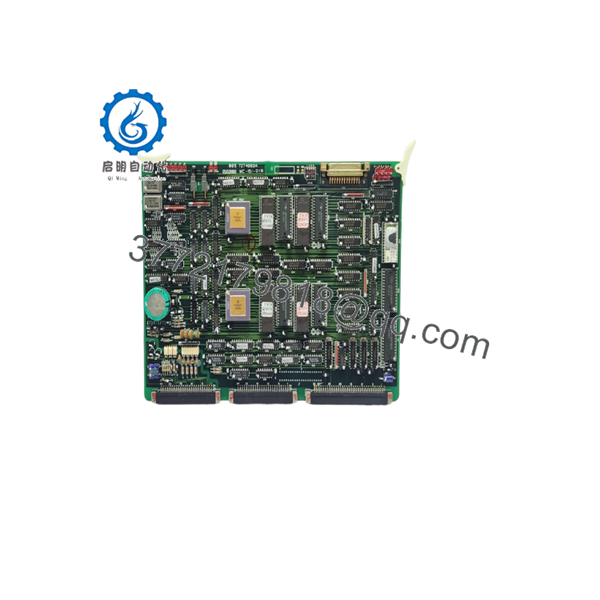

The NABCO MC-151-01B is the central processing unit for NABCO automatic sliding door operators, managing speed profiles, sensor inputs, and motor brake sequencing. Designed for high-traffic commercial and industrial entrances, this controller ensures smooth acceleration, obstacle detection, and reliable hold-open cycles.

Maintaining this unit as a New Surplus spare is a critical risk mitigation strategy for facility managers. Automatic door controller failures immediately lock down entranceways or compromise building security, resulting in emergency service calls and operational friction. Acquiring genuine New Surplus avoids the severe failure rates associated with degraded capacitors found in second-hand parts while eliminating long factory lead times for legacy hardware.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Power Lockout: Disconnect the primary AC line power feeding the door operator header box. Confirm zero voltage at the transformer output using a digital multimeter.
2. ESD Protection: Attach a grounded ESD wrist strap before touching the replacement module.
3. Documentation: Take clear photographs of all wiring terminations, cable routings, and DIP switch settings on the existing board.

Stage 2: Removal

1. Unclip or unscrew the terminal block connectors from the board. Avoid pulling directly on the individual wires.
2. Remove the retaining screws securing the board to the header track chassis.
3. Lift the old module straight off its mounting standoffs to prevent bending any alignment pins or scoring the rear heat sink.

Stage 3: Installation (Clone & Seat)

1. Match the DIP switch settings (door direction, hold-open time, speed settings) on the new MC-151-01B to match the old board exactly.
2. Mount the new MC-151-01B onto the chassis standoffs and tighten retaining screws to 0.8 N·m.
3. Reattach all wiring terminal plugs firmly into their corresponding headers.

Stage 4: Power-On & Testing

1. Re-apply 24V power. Verify the main power status LED illuminates solid green without warning tones.
2. Execute a manual activation test. Observe door opening speed, slow-down zone, and backcheck braking.
3. Test safety sensors with a test barrier to ensure immediate reversing action works as intended.

MC-151-01B

MC-151-01B

Firmware/Software Versions & Upgrade Notes

• Hardware Revisioning: The MC-151-01B revision features upgraded onboard power-filtering circuits compared to older “01A” variants.
• Firmware Compatibility: Firmware is permanently burned to the onboard EPROM at the OEM factory. No external software flasher or field updates are required or supported.
• Compatibility Warning: Do not attempt to swap harness connectors with non-B suffix variants (such as MC-151-01) without validating pinout diagrams. Connector keying is identical, but pin functions for auxiliary safety inputs differ slightly between sub-revisions.

Frequently Asked Questions (FAQ)

Is this NABCO MC-151-01B unit brand new or refurbished?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Why choose New Surplus over a cheaper refurbished unit?

Refurbished door controllers frequently suffer from dried-out electrolytic capacitors, worn relay contacts, and hidden thermal stress from years of continuous operation. A refurbished board may fail weeks after installation, triggering emergency service fees and building entry disruptions. Buying New Surplus gives you full 10–15 year operational longevity and original factory reliability at a fraction of OEM list price.

Is the MC-151-01B a direct drop-in replacement for older MC-151 models?

Yes, the MC-151-01B serves as a direct functional replacement for the standard MC-151 series in most standard sliding door operator track layouts. Always check the DIP switch configuration on your original board and replicate the positions precisely before restoring power.

Does replacing this controller require specialized software or programmers?

No software setup or external handheld terminal is needed. The MC-151-01B operates via onboard potentiometers and DIP switches for parameter adjustment (such as door speed, braking distance, and hold-open duration).

What warranty is provided with this New Surplus controller?

Every MC-151-01B shipped from our inventory is covered by a comprehensive 1-year replacement warranty, giving you complete coverage against operational defects.
