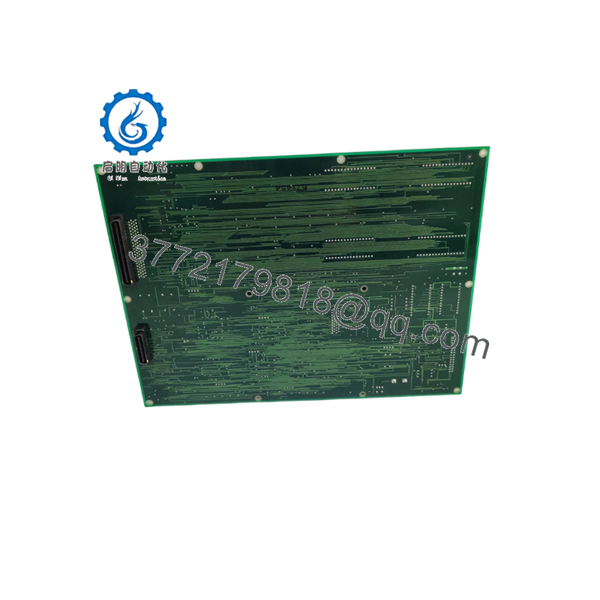

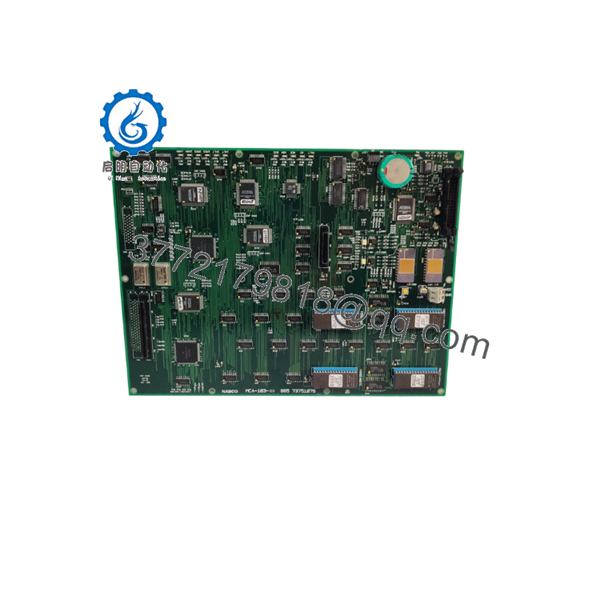

NABCO MCA-103-01 Automatic Door Microprocessor Controller

  • Model: MCA-103-01
  • Brand: NABCO / Nabtesco
  • Series: MCA Series Automatic Door Controllers
  • Core Function: Main logic control and motor drive processing for automatic sliding door operators.
  • Product Type: Microprocessor Controller Board
  • Key Specs: 24V DC Power Input | Integrated Motor Speed & Braking Logic | Dual Safety Input Channels
  • Condition: New Original / New Surplus
  • Inventory Status: Legacy item; recommended for strategic safety stock to eliminate commercial facility entrance downtime.
Get a Quote
Categories: , , , , SKU: MCA-103-01 Brand:

Description

Key Technical Specifications

Parameter Specification
Model Number MCA-103-01
Manufacturer NABCO (Nabtesco Corporation)
Primary Application Commercial automatic sliding door operator control system
Operating Voltage 24 V DC (±10%)
Logic Processing Microprocessor-based digital architecture
Input Signals Motion activation sensors, safety beam, hold-open switch, key switch
Output Signals Motor drive PWM signal, auxiliary alarm relay, status LED indicators
Adjustable Parameters Opening speed, closing speed, hold-open timer, backcheck braking
Operating Temperature -10°C to +50°C (14°F to 122°F)
Mounting Style Direct chassis mount in operator header box
Weight 0.48 kg (1.06 lbs)



Product Introduction & Supply Chain Strategy

The NABCO MCA-103-01 is a microprocessor-based main controller designed for NABCO automatic sliding door operators. It processes activation and safety sensor telemetry to manage opening profiles, backcheck braking, and obstacle-reversing sequences in high-traffic commercial and institutional building entrances.

Maintaining an MCA-103-01 unit as New Surplus inventory is a vital risk management strategy for facility operations. A failure in the main door controller disables access, creates security vulnerabilities, and triggers costly emergency call-out fees. Acquiring genuine New Surplus avoids the failure risks associated with degraded capacitors in second-hand parts while bypassing long OEM manufacturing lead times.

MCA-103-01

MCA-103-01

MCA-103-01

MCA-103-01

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

  1. Power Lockout: Disconnect the primary AC mains supply to the automatic door header box. Use a multimeter to confirm zero voltage at the transformer secondary output.
  2. ESD Protection: Attach a grounded ESD wrist strap before handling the replacement module.
  3. Record Configuration: Take clear photographs of all wiring connections, terminal plug locations, and DIP switch/potentiometer settings on the existing board.

Stage 2: Removal

  1. Unplug the terminal block wiring harnesses carefully without pulling on individual wires.
  2. Remove the retaining screws securing the board assembly to the header track chassis.
  3. Lift the old module straight out from its mounting standoffs.

Stage 3: Installation (Clone & Seat)

  1. Align and duplicate all DIP switch settings and potentiometer positions from the original board onto the new MCA-103-01.
  2. Mount the new MCA-103-01 onto the chassis standoffs and tighten retaining screws to 0.8 N·m.
  3. Reattach all wiring terminal plugs firmly into their corresponding board headers.

Stage 4: Power-On & Testing

  1. Re-apply 24V DC power. Verify the main power LED illuminates solid green without fault tones.
  2. Trigger an activation signal to perform a cycle test. Observe opening speed, slow-down zone, and hold-open timing.
  3. Obstruct the door during closing to verify that the safety reversal mechanism reacts immediately.



Firmware/Software Versions & Upgrade Notes

  • Onboard Logic: The MCA-103-01 features factory-flashed microcode on its onboard processor. Field software programming or external laptop connections are not required.
  • Revision Matching: Ensure the designation matches your target unit. Do not substitute with MC prefix variants (such as MC-151) without verifying wiring harness pinouts, as connector layouts differ between series generations.
  • Potentiometer Tuning: Adjust door speed and braking potentiometers incrementally during commissioning to avoid mechanical strain on the drive belt.



Frequently Asked Questions (FAQ)

Is this NABCO unit brand new or refurbished?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned building, and not refurbished. All modules undergo quality inspection to ensure OEM-level reliability.

Why choose New Surplus over a refurbished door controller?

Refurbished automatic door controllers often contain degraded electrolytic capacitors and worn relay contacts caused by millions of operating cycles. Installing a refurbished unit carries a high risk of premature failure, leading to building entry disruptions. New Surplus provides original factory reliability and full service life at a significant savings compared to OEM list price.

Does replacing the require specialized programming tools?

No programming tools or handheld terminals are needed. Operating parameters (such as speed profiles and hold-open delay) are adjusted directly on the board using onboard DIP switches and potentiometers.

What causes most main controller failures in automatic door operators?

The primary causes are input power surges, water ingress through the header box, and thermal degradation of capacitors due to unventilated header track enclosures.

What warranty protection comes with this module?

Every NABCO controller supplied from our inventory includes a 1-year functional replacement warranty.
