Key Technical Specifications
| Parameter | Specification Value |
| Model / Part Number | PMD03C / PMD03CA |
| Manufacturer | Oriental Motor (Vexta) |
| Motor Type | 5-Phase Stepping Motors (New Pentagon Bipolar) |
| Power Supply Input | 24 VDC \pm 10\% |
| Excitation Mode | Full Step (0.72^\circ/step) / Half Step (0.36^\circ/step) |
| Control Signal Input | Photocoupler Input (Pulse, Direction, All Windings Off) |
| Current Control | Adjustable operating current via DIP/trimmer settings |
| Mounting Style | Compact Open-Frame / Chassis Mount |
| Cooling | Natural Convection |
Product Introduction
The Oriental Motor PMD03C (Vexta series) is a compact, high-precision stepping motor driver designed to power 5-phase 24 VDC stepper motors. Utilizing Oriental Motor’s New Pentagon bipolar drive configuration, it delivers high torque at higher speeds, reduced vibration, and fine resolution stepping compared to standard 2-phase drivers.
The driver accepts standard 24 VDC control power and optocoupled logic inputs for Pulse, Direction, and Hold Off controls. It supports both full-step (0.72^\circ) and half-step (0.36^\circ) drive modes, making it ideal for precision positioning tasks in semiconductor handling, medical automation, optical equipment, and industrial labeling machines.

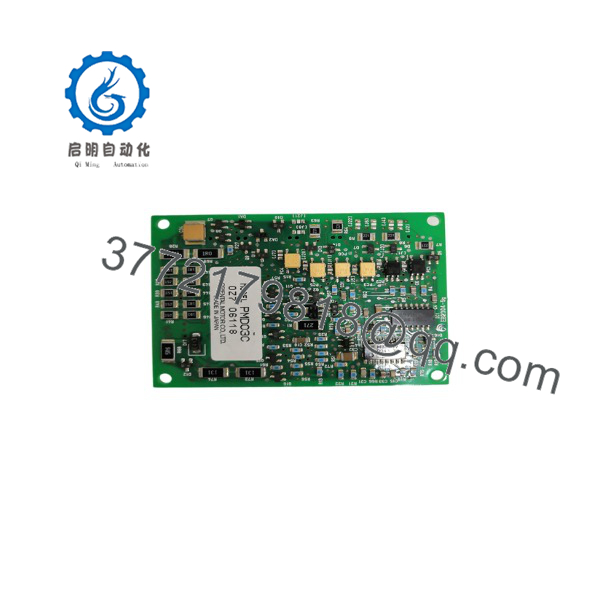

PMD03C

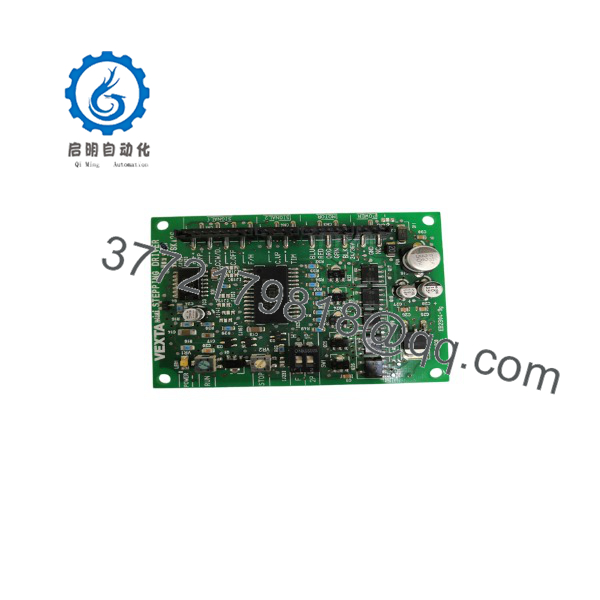

PMD03C
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to Part | Quick Check Method | Recommendation |
| Motor Does Not Rotate | Missing 24 VDC power or Active “All Windings Off” signal | ✅ High | Measure DC input voltage across power terminals; check enable/hold-off optocoupler state. | Restore 24 VDC input power; ensure the Off/Enable signal is correctly toggled off in control logic. |
| Motor Overheating | Run current set too high for motor rating | ✅ High | Check motor body temperature and verify drive current setting pot position. | Reduce the operating current setpoint on the driver trimmer to match motor nameplate specs. |
| Missing Steps / Inaccuracy | Pulse signal frequency too high or signal noise | ❓ Medium | Inspect input pulse train with an oscilloscope for signal ringing or frequency spikes. | Ramp up acceleration times in PLC/controller profile; use twisted-pair shielded cables for control signals. |
| Motor Vibrates / Hum | Phase miswiring or improper excitation setting | ✅ High | Verify motor phase color wiring against the 5-phase Pentagon wiring diagram. | Re-wire motor leads according to Oriental Motor 5-phase pinouts; switch between full/half step mode. |
Frequently Asked Questions (FAQ)
Q: Is the PMD03C still in active production by Oriental Motor?
A: No, the PMD03C / PMD03CA driver series is a legacy/discontinued line from Oriental Motor. Fully tested New Surplus and Refurbished inventory items are routinely supplied as drop-in spares.
Q: What motor type is compatible with the PMD03C driver?
A: It is specifically designed to drive 5-phase (New Pentagon topology) stepping motors operating on 24 VDC. Do not connect standard 2-phase or 4-phase stepper motors to this driver.
Q: How do I switch between full-step (0.72^\circ) and half-step (0.36^\circ) modes?
A: Step resolution is selected via the onboard DIP switch or external control input pin on the logic connector.
SOP Quality Control Process
- Visual & Mechanical Check: Inspect PCB trace condition, connector pins, terminal block alignment, and factory part labels.
- 24V DC Bench Test: Connect to a regulated 24 VDC supply; verify internal logic reference voltages and standby power draw.
- 5-Phase Motor Load Test: Drive a compatible Oriental Motor 5-phase stepper motor across continuous speed profiles in both clockwise and counter-clockwise directions.
- Current & Step Resolution Check: Measure phase output current using a current probe and verify smooth transition between 0.72^\circ full-step and 0.36^\circ half-step modes.
- ESD Packaging: Treat board with anti-static solution and seal in a vacuum ESD shielding bag prior to shipment.
Technical Pitfall & Survival Guide
- ❗ 5-Phase Pentagon Wiring Sequence: Unlike standard 2-phase stepping motors (4-wire), 5-phase motors use a 5-wire or 10-wire Pentagon configuration. Swapping any two phase leads on the PMD03C will result in severe motor cogging or no movement at all.
- ❗ Control Signal Logic Voltage: Ensure pulse and direction logic signals match the optocoupler input specifications (typically 5V or 24V via external current-limiting resistor) to avoid burning out the input photocouplers.
- ❗ Heat Dissipation: Mount the driver vertically on a metal panel or chassis frame to allow effective natural convection across the onboard heatsink power components.
