3. Key Technical Specifications
The Pacific Scientific 6410-001-N-N-N is a high-density, board-level microstepping drive designed to precise digital current regulation for standard 2-phase stepper motors.
| Parameter | Value |
|---|---|
| Part Number | 6410-001-N-N-N |
| Manufacturer | Pacific Scientific (Kollmorgen) |
| Product Family | 6410 Series Stepper Drives |
| DC Bus Voltage | 24 to 75 VDC |
| Output Current | 0.625 A to 5.0 A Peak (3.5 A RMS continuous) |
| Control Inputs | Step & Direction (Optically Isolated) |
| Resolution Options | Dip-switch selectable microstepping (Up to 50,000 steps/rev) |
| Form Factor | Open-frame / L-bracket chassis |
| Operating Temperature | 0°C to +50°C |
4. Product Introduction & Supply Chain Strategy
The Pacific Scientific 6410-001-N-N-N stepper drive is a trusted motion control module used across automated indexing, packaging, assembly machinery, and CNC positioning axes. It receives standard step and direction command pulses from an external indexer or PLC and converts them into microstepped motor phase currents for smooth, resonance-free motor operation.
Maintaining an uninstalled 6410-001-N-N-N unit as New Surplus stock is a critical strategy for avoiding extended machine downtime. Stepper drives operating under high bus voltages and continuous thermal cycles face capacitor and power MOSFET degradation over time. Securing a genuine New Surplus unit ensures untouched power silicon, unheated PCB traces, and immediate drop-in restoration without requiring mounting adjustments or controller re-programming.
6410-001-N-N-N

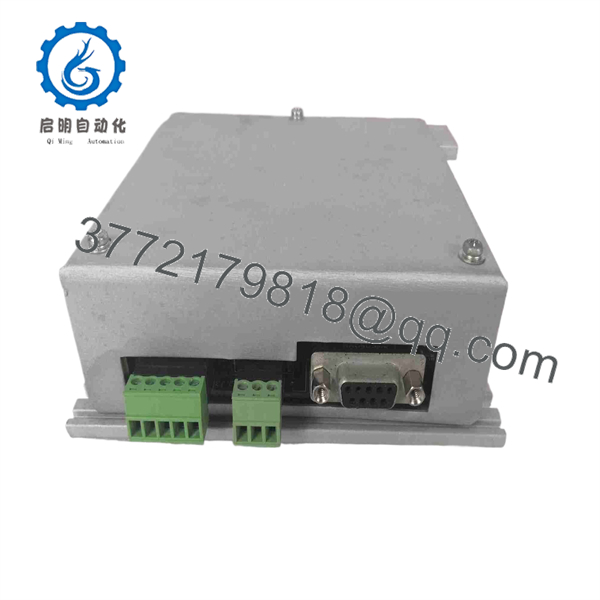

6410-001-N-N-N
5. Installation & Configuration Guide
High Voltage & Inductive Energy Warning
Disconnect DC bus power and allow filter capacitors to fully discharge before connecting or disconnecting motor phase leads. Unplugging motor leads while the drive is energized will destroy output MOSFET switching transistors.
1
Power Isolation & Discharge
Prerequisite
1.Power Isolation & Discharge:Prerequisite.
Disconnect main DC power feeds supplying the drive bus. Use a voltmeter across the DC input terminals to verify bus voltage has dropped below 5 VDC before handling terminals.
2
Chassis & Heatsink Securing
Mechanical Mounting
2.Chassis & Heatsink Securing:Mechanical Mounting.
Mount the 6410-001-N-N-N drive vertically onto a clean, unpainted metal backplate to ensure adequate thermal dissipation. Maintain at least 2 inches of clearance above and below the drive for natural convection.
3
Current & Resolution Setup
DIP Switch Config
3.Current & Resolution Setup:DIP Switch Config.
Set the onboard DIP switches to match the motor’s rated phase current and desired microstepping resolution (e.g., 10 microsteps/step) according to the 6410 hardware manual switch tables.
4
Signal Landing & Initial Motion Test
Wiring & Power-Up
4.Signal Landing & Initial Motion Test:Wiring & Power-Up.
Wire motor phases (A, A-, B, B-), step/direction signals, and DC bus power to their designated terminal pins. Apply DC power, enable the drive, and send test pulse trains to confirm smooth motor movement.
6. Firmware/Software Versions & Upgrade Notes
- Hardware Configuration: All operating parameters (peak current, idle current reduction, microstep resolution) are set directly via onboard DIP switches.
- Motor Matching: Ensure output current DIP switch settings do not exceed the continuous current rating of the connected stepper motor to prevent thermal damage.
- Shielding: Always use twisted-shielded pair cabling for step and direction control signals to avoid noise coupling from the DC power bus.
7. Frequently Asked Questions (FAQ)
Q: Is this Pacific Scientific 6410-001-N-N-N drive genuinely new? A: Yes, this item is a Brand New Surplus unit. It has never been installed in a cabinet or powered on a production line, and is stored in ESD-protective packaging.
Q: Why choose New Surplus over refurbished stepper drives? A: Power MOSFETs and electrolytic capacitors on stepper drives undergo significant thermal stress during normal operation. Refurbished drives often have reduced operational life and increased risk of sudden failure under full load. New Surplus offers factory-fresh reliability.
Q: Can this drive operate with non-Pacific Scientific 2-phase stepper motors? A: Yes. The 6410-001-N-N-N is compatible with standard 4-, 6-, or 8-lead 2-phase hybrid stepper motors from any manufacturer, provided voltage and current specs are respected.
Q: What warranty is provided with this unit? A: Every Pacific Scientific 6410-001-N-N-N drive comes with a full 1-year replacement warranty and a certified quality verification report prior to shipment.
