Pilz 311041 SafetyBUS p Diagnostic Connector

Description

Key Technical Specifications

The Pilz operating documentation specifies the 311041 connector for SafetyBUS p copper cabling, with a second interface used for diagnostics. It also specifies IP20 installation, -25 °C to +70 °C operating temperature, 7.6–8.2 mm cable diameter, and conductors up to 0.75 mm².

Product Introduction

The Pilz 311041 PSS SB SUB-D4-DIAG is a SafetyBUS p connection accessory used to couple a bus subscriber to the Pilz SafetyBUS p network. Unlike the standard 311040 SUB-D4 connector, the 311041 includes a second interface that allows the connector to be used for diagnostic access. It also incorporates a selectable terminating resistor for bus-network configuration.

The connector uses a 9-pin Sub-D bus connection and connects individual copper conductors through insulation-displacement terminals. It is intended for installation in an IP20 environment and must be used with compatible SafetyBUS p cabling. This is a network accessory, not a standalone PLC, safety relay, or I/O module.

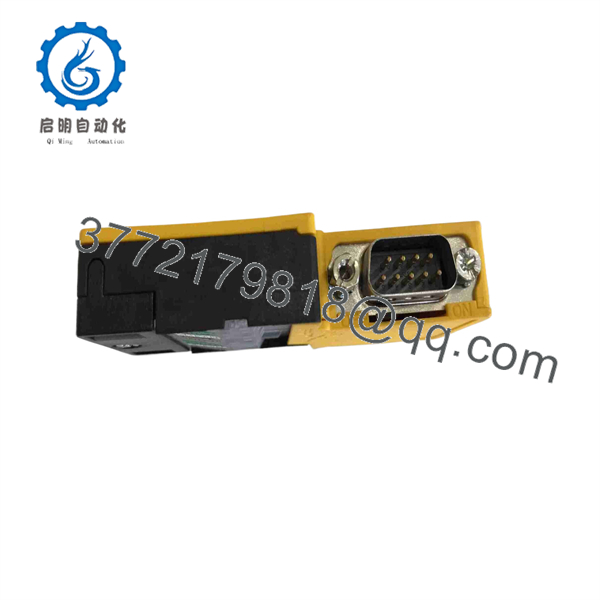

311041

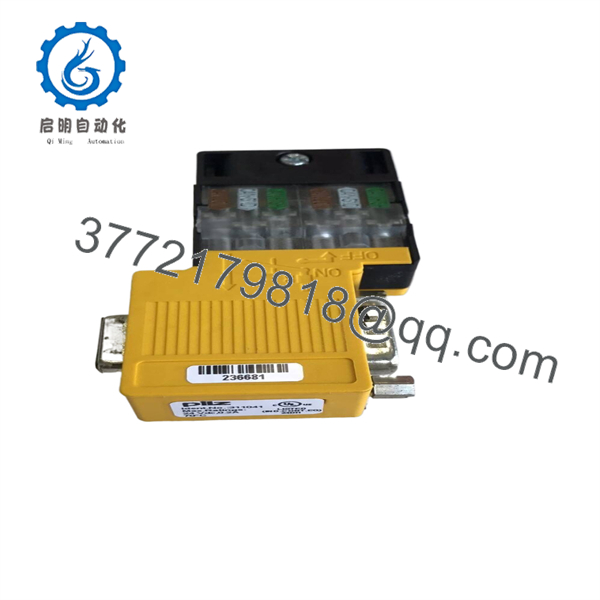

311041

Installation & Configuration Guide

Estimated installation time: 15–30 minutes for an experienced controls technician, excluding SafetyBUS p network validation.

Stage 1 — Pre-Installation Preparation

1. Confirm the replacement part number is Pilz 311041 / PSS SB SUB-D4-DIAG.
2. Verify that the installed network is SafetyBUS p and uses compatible copper bus cable.
3. Record the existing bus wiring and connector orientation.
4. Identify the network termination arrangement before removing the connector.
5. Prepare an ESD-safe work area, labels, suitable screwdriver, and cable preparation tools.
6. Follow the plant’s LOTO and machine-safety procedures before working on the safety-control network.

⚠️ Do not assume that every 9-pin Sub-D connector is electrically interchangeable with the Pilz 311041. The connector contains SafetyBUS p-specific wiring and termination functionality.

Stage 2 — Removing the Old Connector

1. Place the machine in its approved safe state.
2. Remove power where required by the machine’s maintenance procedure.
3. Record the position of the bus connector and termination setting.
4. Disconnect the Sub-D connection from the SafetyBUS p participant.
5. Open the connector housing according to the Pilz procedure.
6. Release the cable from the insulation-displacement terminals.
7. Inspect the cable jacket, shield, conductors, and connector for damage.

⚠️ Do not cut or reterminate the bus cable until the original conductor arrangement has been documented.

Stage 3 — Installing the 311041

1. Verify the replacement connector is marked PSS SB SUB-D4-DIAG / 311041.
2. Confirm the cable diameter is within the specified 7.6–8.2 mm range.
3. Prepare the SafetyBUS p cable according to the Pilz installation instructions.
4. Insert the cable fully into the connector.
5. Position the individual conductors according to the specified color assignment.
6. Engage the insulation-displacement contacts.
7. Secure the cable strain relief.
8. Connect the main 9-pin Sub-D interface to the SafetyBUS p participant.
9. Connect the diagnostic interface when required.
10. Set the terminating resistor only when this connector is located at the appropriate end of the bus segment.

The Pilz manual specifically warns that the cable must be inserted to the housing stop and that the same cable position must not be clamped repeatedly.

Stage 4 — Power-On & Network Testing

1. Inspect the connector for loose conductors or incomplete IDC contact.
2. Verify the termination arrangement against the SafetyBUS p network topology.
3. Restore power according to the machine manufacturer’s procedure.
4. Check the SafetyBUS p network for communication or diagnostic faults.
5. Verify the connected safety participant is recognized correctly.
6. Test the relevant safety functions according to the machine’s validated safety procedure.
7. Confirm that the diagnostic interface operates when required.
8. Document the replacement part number and termination setting.

⚠️ A SafetyBUS p connector replacement is part of a safety-related control system. Do not return the machine to production until the required safety-function validation has been completed.

FAQ

Q1. What is Pilz 311041?

Pilz 311041 is the PSS SB SUB-D4-DIAG, a SafetyBUS p bus connector with a dedicated diagnostic interface and selectable terminating resistor. It connects a SafetyBUS p participant to the copper bus network.

Q2. What is the difference between 311041 and 311040?

Both are PSS SB -family SafetyBUS p connectors. 311040 is the standard connector, while 311041 adds a second interface for diagnostics. Pilz lists both as separate accessories.

Q3. Does 311041 contain an electronic safety controller?

No. The 311041 is a passive bus connection accessory. It does not replace a Pilz CPU, safety controller, I/O module, or safety relay.

Q4. Does the 311041 include a terminating resistor?

Yes. The connector has a selectable terminating resistor for SafetyBUS p network configuration. The resistor setting must correspond to the actual position of the connector in the bus topology.

Q5. What cable can be used with 311041?

Pilz documentation identifies compatible SafetyBUS p copper cables including PSS SB BUSCABLE0, part 311070, and PSS SB BUSCABLE MOVE, part 311071. The documented cable diameter is 7.6–8.2 mm, with conductor cross-sections up to 0.75 mm².

Q6. Is Pilz 311041 still available from the manufacturer?

The 311041 appears in current Pilz documentation and accessory listings, but availability should be confirmed directly for the required delivery date. Secondary industrial suppliers also list new and used units.

Q7. Can 311041 be replaced with any standard 9-pin Sub-D connector?

No. The 311041 incorporates SafetyBUS p-specific termination and IDC wiring features, plus the diagnostic interface. A generic 9-pin Sub-D connector does not provide equivalent functionality.
