PILZ 774150 PZE 9 24VDC Safety Contact Expansion Module

Key Technical Specifications

Product Introduction

The PILZ 774150 PZE 9 is a 24 V DC safety contact expansion module designed to increase the number of safety relay contacts available from an existing safety controller. It provides eight normally open safety contacts and one normally closed auxiliary contact for machine safety applications.

The module is typically installed with PILZ safety evaluation devices where additional switching contacts are required for multiple contactors, motor disconnect circuits, or safety zones. The PZE 9 transfers the existing safety function through monitored relay expansion rather than creating an independent safety control function.

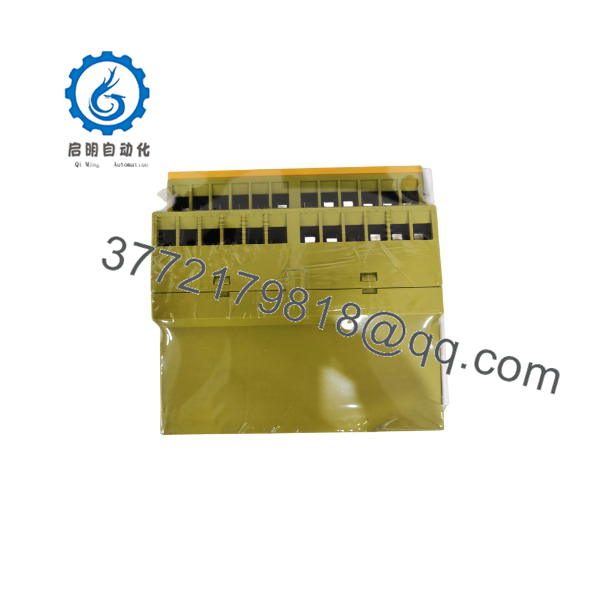

774150

774150

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

1. Notify production and maintenance personnel before replacing the PILZ 774150.
2. Place the machine into a safe condition.
3. Apply lockout/tagout (LOTO) procedures.
4. Remove 24 V DC control power.
5. Wait at least 5 minutes before touching wiring or terminals.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Digital multimeter
• Wire labels
• Smartphone for terminal photos

Data Backup

1. Document the existing safety circuit.
2. Photograph:
   • Terminal wiring
   • Relay connections
   • Feedback loop wiring
   • Adjacent PILZ safety devices
3. Record:
   • Supply voltage
   • Safety input wiring method
   • Connected contactors
   • Reset circuit arrangement

Stage 2: Removing the Old Module (Estimated Time: 10 Minutes)

1. Remove the electrical cabinet cover.
2. Verify zero voltage at the 24 V DC supply terminals.
3. Label every connected wire.
4. Disconnect screw terminals carefully.
5. Release the DIN rail mounting clip.
6. Remove the PZE 9 module from the rail.

Inspect:

• DIN rail condition
• Terminal screws
• Wire ferrules
• Signs of overheating
• Moisture contamination

⚠️ Keep the removed 774150 until commissioning is complete.
Safety relay wiring errors can prevent machine restart or create an unsafe condition.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear an ESD strap before handling the replacement.

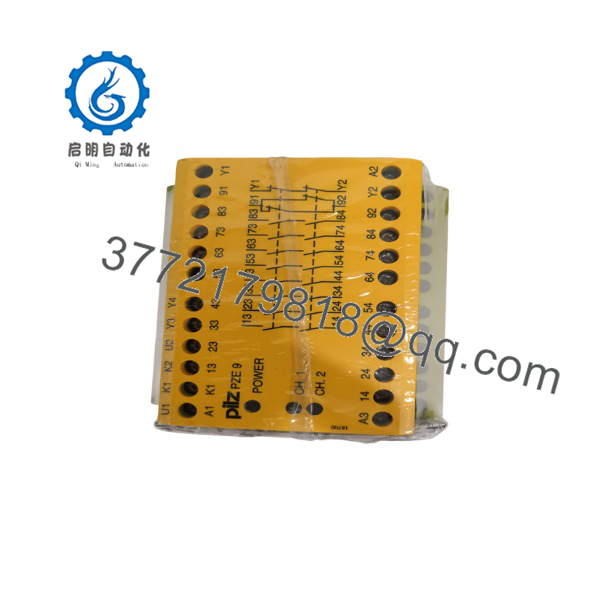

2. Verify the label:
   • PILZ
   • 774150
   • PZE 9
   • 24 V DC
3. Mount the module on the DIN rail.
4. Reconnect wiring using the original photographs.

Configuration Verification (Critical Step)

The PZE 9 does not require PLC software configuration. However, verify:

• Correct safety input arrangement.
• Correct feedback loop connection.
• Correct output contact assignment.
• Correct contactor wiring.

Self Checklist

• Supply voltage verified
• Safety contacts wired correctly
• Feedback loop restored
• Terminal screws tightened
• DIN rail latch secured

Stage 4: Power-On & Testing (Estimated Time: 20 Minutes)

Pre-Power Check

1. Measure 24 V DC supply voltage.
2. Verify no short circuit exists between:
   • +24 V DC
   • 0 V DC
   • Safety output terminals

Power-On Steps

1. Energize the control circuit.
2. Check PILZ LED status indicators.
3. Activate the connected safety device.
4. Verify safety outputs drop correctly.
5. Reset the safety circuit.
6. Confirm all connected contactors energize normally.

⚠️ Troubleshooting Note

• If safety outputs remain open, check feedback loop wiring first.
• If LEDs indicate a fault, verify input circuit wiring.
• If contactors chatter, inspect supply stability and contactor suppression components.

Frequently Asked Questions (FAQ)

Q1: What is the PILZ 774150 used for?

The PILZ 774150 PZE 9 expands the number of available safety relay contacts from an existing safety controller. It is commonly used when one safety relay must control multiple contactors, machine zones, or shutdown circuits.

Q2: Is the PILZ 774150 a complete safety controller?

No. The 774150 is a contact expansion module. It does not replace a safety evaluation device such as a PILZ PNOZ safety relay. It expands the available contacts while relying on the original safety controller for the safety function.

Q3: Can I hot-swap the PILZ 774150 under power?

No. Even though the module is a relay expansion device, replacing it under power is not recommended. Remove control voltage before disconnecting terminals. Safety circuits require controlled replacement procedures.

Q4: Will replacing the 774150 require PLC programming?

Normally, no. The PZE 9 is a hardware relay expansion module and does not require PLC software configuration. The main requirement is correct terminal wiring and safety circuit verification.

Q5: Is PILZ 774150 obsolete?

The availability of individual PZE 9 variants depends on regional inventory and lifecycle status. Before purchasing for a critical machine, verify current PILZ documentation and replacement recommendations.

Q6: What is the difference between New Original and Refurbished PILZ 774150 units?

New Original / New Surplus: Unused OEM inventory stored after production.

Refurbished (tested): Previously installed equipment inspected, cleaned, tested, and verified before resale.

For safety-related applications, request test records, product photos, and serial verification before installation.

Q7: What should be checked before replacing a PILZ 774150?

Verify:

• Exact model: 774150
• Supply voltage: 24 V DC
• Contact arrangement: 8 N/O + 1 N/C
• Terminal wiring
• Feedback loop design
• Connected safety controller compatibility

A similar-looking safety relay expansion unit may have different contact arrangements and cannot always be substituted directly.
