PRSTECH DMP10.24 24V DC 10A Industrial DIN Rail Power Supply

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The PRSTECH DMP10.24 is an industrial-grade switch-mode power supply designed to provide steady, regulated 24 V DC power to Programmable Logic Controllers (PLCs), Distributed Control System (DCS) nodes, and field instruments across heavy manufacturing environments. Operating on a wide 100–240 V AC input range, it delivers 10 A continuous output current with ultra-low output ripple, ensuring clean signal conditions for sensitive analog loops and control backplanes.

From a total cost of ownership (TCO) standpoint, maintaining a New Surplus PRSTECH DMP10.24 on-site serves as an essential buffer stock insurance policy. Power supplies are single-point-of-failure components; when a primary DC rail fails, entire production lines grind to a halt. Sourcing this unit as New Surplus provides genuine OEM manufacturing standards, zero backplane contact wear, and full component lifespan at a lower acquisition cost than factory lead-time orders. Sourcing refurbished power supplies introduces major hidden risks—aged internal electrolytic capacitors and stressed switching transistors in second-hand units frequently lead to premature voltage sags or sudden short-circuit failures. A chemical plant recently attempted to save 400 on procurement by buying a refurbished power module; three months later, an internal capacitor shorted, triggering an unexpected PLC shutdown and causing over 45,000 in lost production. Securing certified New Surplus inventory eliminates these catastrophic failure modes while guarding against unexpected supplier lead time variability.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Lock-out / Tag-out: De-energize the incoming AC line power feeding the control cabinet. Use a calibrated multimeter to verify 0 V AC across the feed terminals before touching any conductors.
2. ESD Precautions: Put on an anti-static wrist strap connected to cabinet earth ground.
3. Documentation: Take clear photos of the existing wiring, terminal block positions, and any potentiometer settings or external jumper configurations on the unit being replaced.

Stage 2: Removal

1. Terminal Disconnection: Loosen the screw terminals or push-in tension clamps on the output (24 V DC) and input (AC) blocks. Pull conductors clear and cap exposed AC leads immediately.
2. DIN Rail Extraction: Insert a flathead screwdriver into the bottom DIN rail locking clip. Pull down to release the spring mechanism and pivot the bottom of the power supply outward to disengage it from the rail.

Stage 3: Installation (Clone & Seat)

1. Physical Mounting: Hook the top recess of the DMP10.24 onto the upper edge of the 35 mm DIN rail. Press firmly on the lower half until the bottom clip snaps securely over the rail.
2. Wiring Termination: Connect input and output wiring strictly according to terminal polarity markings (+ / − DC output; L / N / PE AC input). Torque screw terminals to 1.2 Nm to prevent high-resistance thermal hot spots.

Stage 4: Power-On & Testing

1. Short Circuit Check: Measure resistance across the DC output terminals before applying AC voltage to confirm no external field shorts exist.
2. Voltage Adjustment: Apply AC input power. Verify that the DC output LED illuminates green. Using an insulated adjustment tool, measure output voltage at the terminals and trim the front potentiometer to set exactly 24.0 V DC (or up to 28.0 V DC if compensating for long cable line drops).

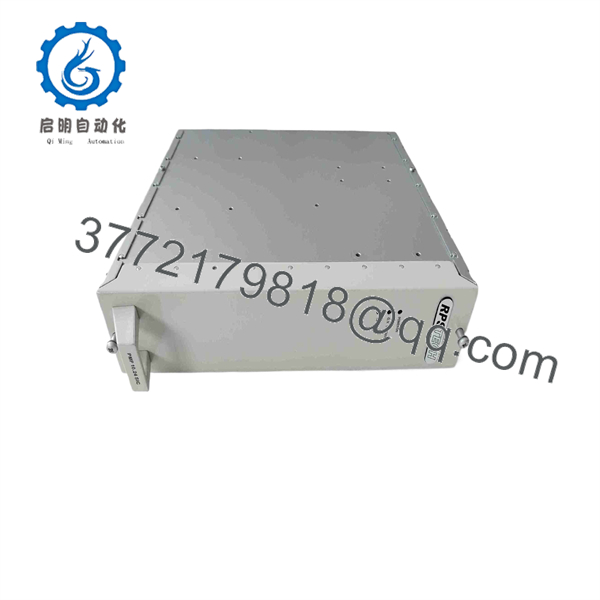

DMP10.24

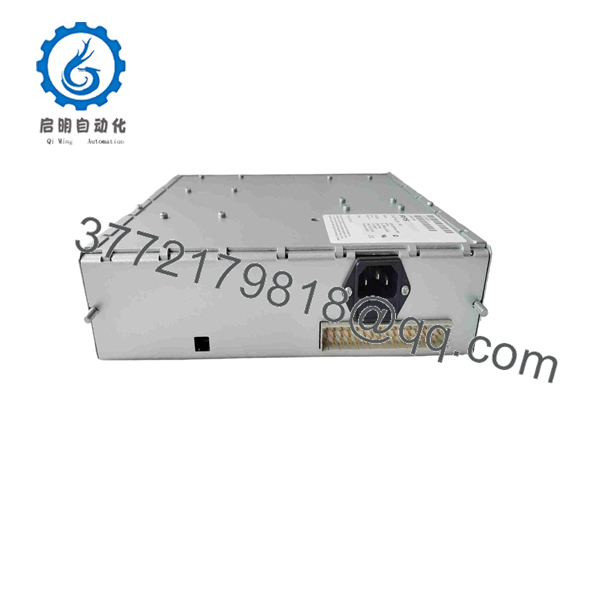

DMP10.24

Firmware/Software Versions & Upgrade Notes

• Firmware Dependency: As a hardware-based industrial power supply, the PRSTECH DMP10.24 operates independently of internal programmable firmware or logic software downloads.
• Hardware Revisions: Verify hardware revision levels printed on the side specification label. While revision increments maintain pin-for-pin mechanical drop-in compatibility, subtle component changes may affect parallel load-sharing behavior when mixing old and new revisions in redundant configurations.
• Redundancy & Parallel Operation: Do not tie output terminals of multiple DMP10.24 units directly in parallel without an external decoupling diode module or active redundancy controller. Direct parallel wiring across different production series can cause the unit with the higher set trim voltage to supply 100% of the load, causing thermal overload and premature shutdown.

Frequently Asked Questions (FAQ)

Q: Are these PRSTECH .24 units genuinely brand new, or are they refurbished parts with clean housing?

A: These units are strictly Original New Surplus. They are completely unused, sourced from verified surplus inventory and authorized distribution channels, and stored in original packaging. They have never been installed in a panel, repaired, or refurbished. Every module undergoes inbound ESD-safe inspection and electrical testing before shipment.

Q: Why is New Surplus pricing lower than OEM list price but higher than second-hand alternatives?

A: Our pricing reflects the market value of obtaining authentic, zero-hour OEM components that are available for immediate shipment without standard factory lead times. It is priced higher than used or refurbished parts because it contains factory-fresh internal components (capacitors, transformers) with full rated operating lifespans (10–15 years), eliminating the downtime risk associated with second-hand parts.

Q: Can I hot-swap the .24 power supply while the cabinet is energized?

A: No. Standard safety regulations and maintenance best practices mandate turning off incoming AC mains power before removing or installing power supply modules. Disconnecting high-current line voltage conductors under load creates arcing hazards and risks shorting adjacent terminal points or damaging sensitive downstream PLC backplanes.

Q: Does this power supply require a external cooling fan in the control enclosure?

A: The .24 utilizes natural convection cooling and does not contain internal cooling fans. Ensure a minimum clearance of 40 mm above and below the module on the DIN rail to allow adequate vertical airflow. If ambient enclosure temperatures exceed 50 °C, derate total output power or add cabinet filter fans to prevent thermal shutdown.

Q: What warranty coverage is provided with this New Surplus power supply?

A: Every PRSTECH .24 unit comes backed by a comprehensive 1-year functional replacement warranty. If the module fails under standard operational parameters within the warranty period, we provide an immediate replacement unit from stock to minimize plant interruption.
