Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | SLIO 02 (CANMAN Module) |
| Part Number / Ref | SLIO02 / CANMAN Controller Network |
| System Compatibility | Rolls-Royce CANMAN / K-Chief 600 / Helicon X3 Propulsion Systems |
| Operating Voltage | 24 VDC nominal marine power (18–32 VDC range) |
| Quiescent Current Draw | 120 mA @ 24 VDC (350 mA max load) |
| Digital Inputs (DI) | 16 configurable channels (dry/wet contact compatible) |
| Digital Outputs (DO) | 8 switching channels (high-side/low-side, 2 A max per channel) |
| Analog Inputs (AI) | 4 universal channels (configurable 4–20 mA or 0–10 V) |
| Network Interface | Dual redundant CAN bus (CANopen protocol support up to 1 Mbit/s) |
| Signal Response Latency | < 10 ms (distributed edge execution) |
| Enclosure Rating | IP20 base module body (up to IP65 in sealed marine enclosure) |
| Operating Temperature | −25 °C to +70 °C |
| Type Approvals | DNV GL, ABS, Lloyd’s Register (LR), Bureau Veritas (BV) |
Product Introduction & Supply Chain Strategy
The Rolls-Royce SLIO 02 is a heavy-duty distributed I/O and local processing controller engineered specifically for harsh marine propulsion environments, pitch control (CPP/FPP), thrusters, and vessel automation networks. Operating on the CANMAN dual-CAN bus topology, the SLIO 02 handles edge signal collection from engine sensors and solenoid actuators while performing standalone threshold monitoring and emergency interlocks independent of the central supervisor.
Procuring the SLIO 02 as New Surplus provides a critical insurance policy against catastrophic marine stock-outs. Because an unexpected failure in a vessel’s propulsion interface can result in immediate off-hire penalties, port detention, or tug assistance costs exceeding $50,000 per day, holding verified New Surplus inventory eliminates long factory backorders. It guarantees 100% signal processing integrity while avoiding the elevated risk of internal capacitor degradation inherent in second-hand or repaired cards.
SLIO 02

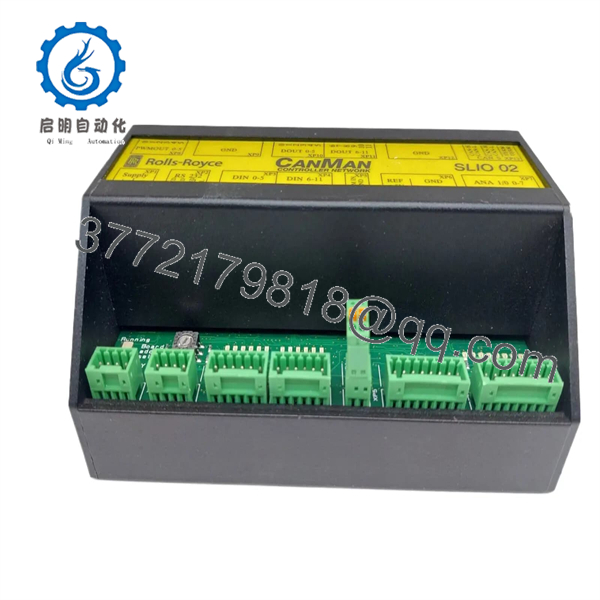

SLIO 02
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Isolation & Safety: Execute Lock-Out/Tag-Out (LOTO) procedures on the vessel’s 24 VDC main and emergency automation distribution breakers. Use a calibrated multimeter to confirm zero potential on terminal blocks.
- ESD Control: Connect a wrist strap to the panel enclosure’s main earth bonding stud before opening the anti-static packaging.
- Visual Documentation: Photograph the existing module wiring, terminal designation strips, and node identification settings prior to disconnecting hardware.
Stage 2: Removal
- Unscrew and disconnect all heavy-duty terminal blocks or multi-pin connectors from the top and bottom faces of the SLIO 02.
- Disconnect the dual CAN bus communication lines, taking care not to strain the shield drain wires.
- Release the DIN rail mounting clips or backplane retention bolts and carefully lift the module straight out to prevent physical shock to adjacent rack cards.
Stage 3: Installation (Clone & Seat)
- Verify the physical node address switches on the new SLIO 02 match the original unit exactly.
- Mount the new module securely onto the standard DIN rail or backplane framework until the locking mechanism fully engages.
- Re-attach the CAN bus cabling, ensuring signal lines (CAN_H, CAN_L) and shield grounds are wired strictly to designated pins.
- Re-insert and tighten all terminal connector blocks.
Stage 4: Power-On & Testing
- Restore 24 VDC auxiliary power to the control cabinet.
- Check the front status LEDs: confirm the POWER indicator is solid green and the CAN 1 / CAN 2 link LEDs show active, error-free communication with the central CANMAN processor.
- Cycle local thruster or engine governor control inputs and verify live telemetry updates on the bridge or engine control room operator panel (e.g., K-Chief / Helicon display).
Firmware/Software Versions & Upgrade Notes
- CANMAN Bus Integration: The SLIO 02 communicates across dual-redundant CAN bus links. Parameter assignment (node ID, baud rate, signal scaling) is broadcast from the primary CANMAN controller or configured using the Rolls-Royce engineering service tool.
- Backward Compatibility: Hardware revisions of the SLIO 02 maintain pin-for-pin functional equivalence across production series. However, ensure the node address settings (DIP/rotary switches) mirror the failed unit prior to applying control power.
- System Firmware Coherency: Replacing a module does not require flashing firmware manually on the card itself, as local logic parameters are synchronized upon bus handshaking. Avoid updating central CANMAN controller software during a routine hardware swap to prevent protocol timeouts.
Frequently Asked Questions (FAQ)
Q: Is this Rolls-Royce SLIO 02 module guaranteed to be Brand New Surplus?
Yes. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.
Q: Why is New Surplus critical for marine propulsion and thruster control systems?
Marine automation modules operate under extreme vibration, temperature cycling, and moist salt-air environments. Refurbished or repaired boards frequently suffer from latent solder joint fatigue and dried-out electrolytic capacitors that lead to intermittent CAN bus drops. New Surplus guarantees full thermal and electrical component life expectancy.
Q: What primary systems utilize the Rolls-Royce SLIO 02 module?
The SLIO 02 is widely deployed across Rolls-Royce Marine (Kongsberg) propulsion suites, including CANMAN engine interface cabinets, Helicon X3 controllable pitch propeller (CPP) systems, Ulstein thruster controls, and K-Chief 600 alarm and monitoring panels.
Q: Do I need specialized software to commission a replacement SLIO 02 card?
In most standard replacement scenarios, no specialized field programming software is needed. Once the hardware node address switches are correctly mirrored from the old module, the central CANMAN master downloads channel parameters and logic definitions automatically over the CAN bus upon initialization.
Q: What warranty coverage applies to this SLIO 02 module?
Every New Surplus SLIO 02 unit carries a comprehensive 1Year functional replacement warranty. This provides absolute peace of mind for ship managers, chief engineers, and marine automation integrators who cannot risk shipboard downtime.
