Schneider 140SAI94000S Quantum Safety Input Module

Description

Key Technical Specifications

The published technical documentation identifies 140SAI94000S as an 8-channel, 16-bit analog safety input module with 13 input words and 4-20 mA capability.

Product Introduction

The Schneider Electric 140SAI94000S is an analog safety input module for the Modicon Quantum automation platform. It provides eight current-input channels with 16-bit conversion and is intended for safety-related analog signal acquisition in Quantum Safety PLC architectures.

The module provides channel and bus isolation, input diagnostics, out-of-range detection, and a 15 ms update time. Schneider Electric lists the 140SAI94000S as discontinued, with standard service scheduled through December 31, 2029, depending on market.

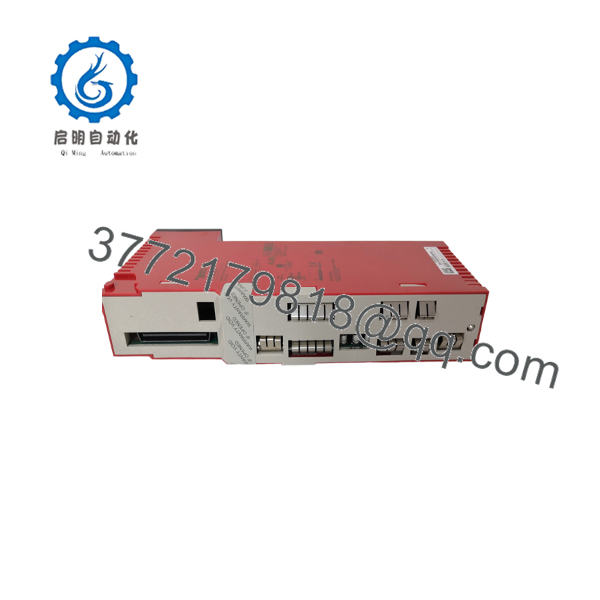

140SAI94000S

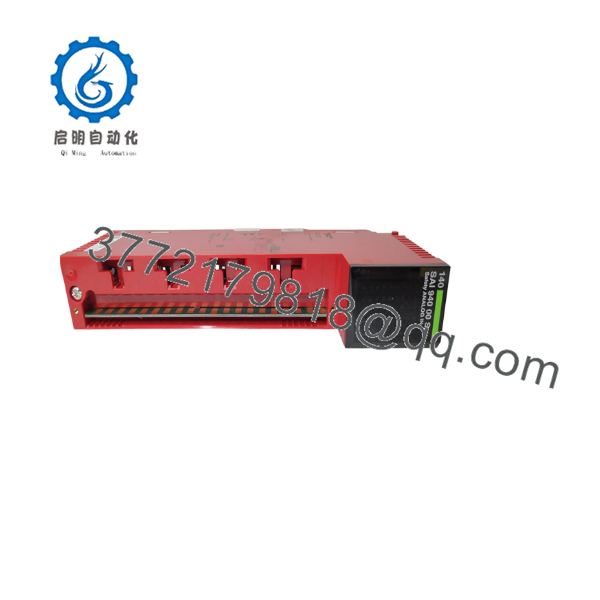

140SAI94000S

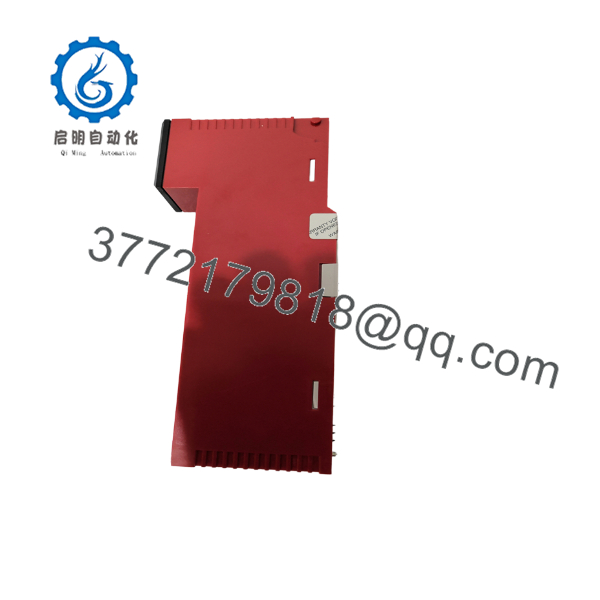

140SAI94000S

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — approximately 5 minutes

⚠️ Safety First: This is a safety I/O module. Do not treat it like an ordinary analog input card.

1. Place the controlled process in a verified safe state.
2. Apply the site’s lockout/tagout procedure before removing the module.
3. Isolate the applicable power sources and verify absence of hazardous voltage.
4. Allow the equipment to discharge according to the site/OEM procedure.
5. Prepare:
   • ESD wrist strap
   • Digital multimeter
   • Appropriate screwdriver
   • Wire labels
   • Smartphone or camera
6. Photograph the existing terminal wiring before disconnecting anything.
7. Record the existing Quantum CPU, rack position, application configuration, and module identification.
8. Save the current PLC/Safety configuration before beginning the replacement.

The Quantum Safety documentation identifies the 140SAI94000S as one of the dedicated Safety I/O modules and states that Safety I/O modules can be installed in local backplanes or remote I/O drops.

Stage 2: Removing the Existing Module — approximately 5 minutes

1. Verify that the replacement is exactly 140SAI94000S.
2. Confirm the rack location and module position.
3. Label every field connection before removal.
4. Disconnect the field wiring carefully; do not pull on individual conductors.
5. Release the module’s mechanical retention mechanism.
6. Pull the module straight out of the rack to avoid damaging backplane contacts.
7. Inspect the backplane connector for contamination, bent contacts, or mechanical damage.
8. Keep the removed module available until commissioning has been completed.

⚠️ Do not use the replacement module as an opportunity to change wiring conventions. A safety-system replacement should reproduce the approved configuration unless the safety design has been formally modified.

Stage 3: Installing the Replacement — approximately 5 minutes

1. Put on the grounded ESD wrist strap.
2. Compare the replacement label against the removed module.
3. Verify that the module is actually 140SAI94000S, not a visually similar Quantum analog I/O module.
4. Check the terminal arrangement against the applicable Schneider Electric documentation.
5. Insert the module squarely into the correct rack position.
6. Ensure the module is fully seated and mechanically secured.
7. Reconnect the field wiring according to the documented terminal assignment.
8. Check each conductor for secure termination.

The Schneider Electric documentation specifically identifies the 140SAI94000S as an 8-channel analog safety input module and provides dedicated wiring, addressing, diagnostics, and configuration information.

Self-check before energizing:

• Exact 140SAI94000S model verified
• Correct rack position verified
• Field wiring verified
• Terminations secure
• Safety configuration backed up
• No visible backplane damage

Stage 4: Power-On & Commissioning — approximately 10-15 minutes

1. Perform a final wiring and polarity check before power is applied.
2. Energize the Quantum rack according to the approved startup procedure.
3. Observe the module’s LED indications.
4. Confirm that the module establishes communication with the Safety CPU.
5. Check the Quantum diagnostic/status information.
6. Verify that all eight configured channels report the expected status.
7. Inject or simulate the approved test signals as permitted by the commissioning procedure.
8. Confirm that the measured values correspond to the expected input range.
9. Verify diagnostic behavior for the applicable fault conditions.
10. Return the process to service only after the safety function has passed the site’s required validation tests.

The module’s documented diagnostics include out-of-range detection and internal channel fault indication. The technical documentation also states that the module performs power-up self-tests before normal communication with the host.

⚠️ Important replacement issue: Do not assume that a newer Modicon X80 module is a plug-in replacement. Schneider Electric lists BMXSAI0410 as the recommended replacement, but migrating from Quantum Safety I/O to another platform requires compatibility and safety-application engineering rather than a simple card swap.

Frequently Asked Questions (FAQ)

Can I hot-swap the 140SAI94000S?

Do not assume hot-swapping is permitted. This is a Quantum Safety I/O module used in safety-related applications. Follow the approved Schneider Electric procedure and the site’s safety maintenance procedure before removing or installing the module.

Is the Schneider 140SAI94000S obsolete?

Yes. Schneider Electric lists the 140SAI94000S as discontinued. The exact discontinuation date varies by Schneider Electric regional page, while the published standard-service end date is December 31, 2029 on the referenced Schneider pages.

What is the recommended replacement?

Schneider Electric identifies BMXSAI0410, a Modicon X80 safety analog input module with four isolated inputs, as a recommended replacement. It should not be treated as a drop-in Quantum replacement without checking the complete hardware, software, wiring, and safety architecture.

How many analog channels does the 140SAI94000S provide?

It provides eight analog input channels. The module uses 16-bit resolution and is designed around current-input measurement, including 4-20 mA applications.

Will replacing the module erase my PLC or Safety logic?

Removing the I/O module does not by itself mean that the CPU’s application program is erased. However, do not rely on that assumption during a safety-system intervention. Back up the current configuration and verify the Safety CPU, I/O configuration, diagnostics, and application status before returning the system to operation.

Is a used or surplus 140SAI94000S equivalent to a factory-new unit?

No. Condition matters with discontinued safety hardware. A Factory Sealed, New Original/New Surplus, and Refurbished/Tested unit should be identified separately. For procurement, request the actual part-label photographs, serial/traceability information, condition statement, and test documentation before committing the replacement.

Why is availability difficult for this module?

The 140SAI94000S has reached discontinued status, so remaining inventory is primarily dependent on existing stock and the secondary market. Schneider Electric itself directs users toward the Modicon X80 replacement path rather than continued production of the Quantum module.
