Schneider AS-B883-001 High-Speed Counter Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Modicon AS-B883-001 is an 8-channel High-Speed Counter module designed for Modicon 800 Series I/O architectures. It processes high-frequency pulse trains from incremental encoders and flow meters up to 50 kHz, offloading time-critical counting routines directly from the central processing unit. Primary applications include position monitoring, high-speed bottling lines, turbine flow metering, and material web handling.

Securing this module as New Surplus is a critical risk-mitigation step for legacy plant infrastructure. Because OEM support for the 800 Series has shifted to mature EOL status, buying verifiable New Surplus guarantees a 10–15 year operational life extension for your control system. Unlike secondhand components with degraded optocouplers or stressed capacitors, our unused surplus inventory maintains factory electrical specs, protecting your plant against multi-thousand-dollar downtime events caused by premature failure.

Installation & Configuration Guide

1.Pre-Installation & Setup:Safety protocols and configuration verification.

1. Perform Lock-Out/Tag-Out (LOTO) on the local control cabinet and disconnect all 24 V DC power sources feeding the I/O rack.
2. Attach a calibrated ESD wrist strap grounded to the panel enclosure to prevent electrostatic damage to the module.
3. Document and photograph all existing wiring layouts, terminal block pinouts, and DIP switch configurations on the module being replaced.

2.Removal of Old Hardware:

1. Loosen the top and bottom retaining screws securing the module to the backplane housing.
2. Unplug the removable terminal block (RTB) carefully to preserve field wiring without applying excessive stress on the conductors.
3. Pull the module straight out along its guide rails to avoid bending backplane connector pins.

3.Module Replication & Installation:

1. Verify DIP switch settings on the new AS-B883-001 to match the address and signal filter configurations of the old unit.
2. Inspect backplane connectors for dust or bent pins before inserting the unit into the rack slot.
3. Align the module with the card guides and push firmly until the backplane connector fully seats, then tighten the top and bottom retaining screws.

4.Power-On & Verification:

1. Reattach the terminal block and double-check field voltage connections with a digital multimeter (ensure 24 V DC ±10%).
2. Restore main rack power and observe the status LEDs. The ACTIVE LED should illuminate solid green.
3. Cycle the encoder/sensor inputs to confirm real-time pulse registration via channel status LEDs and the PLC data table.

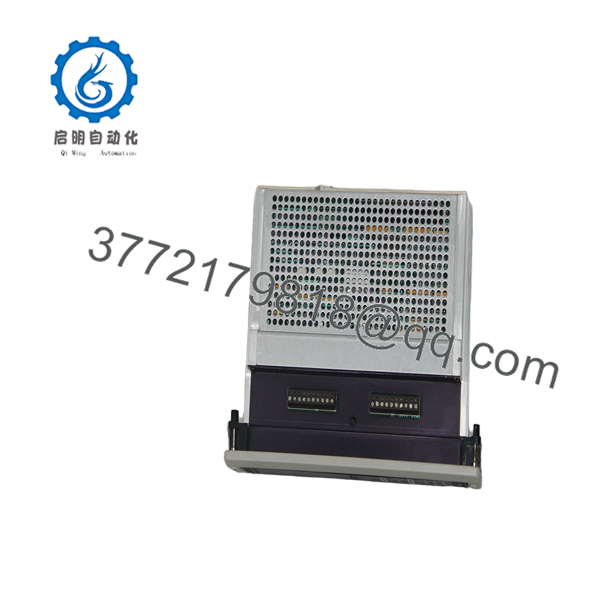

AS-B883-001

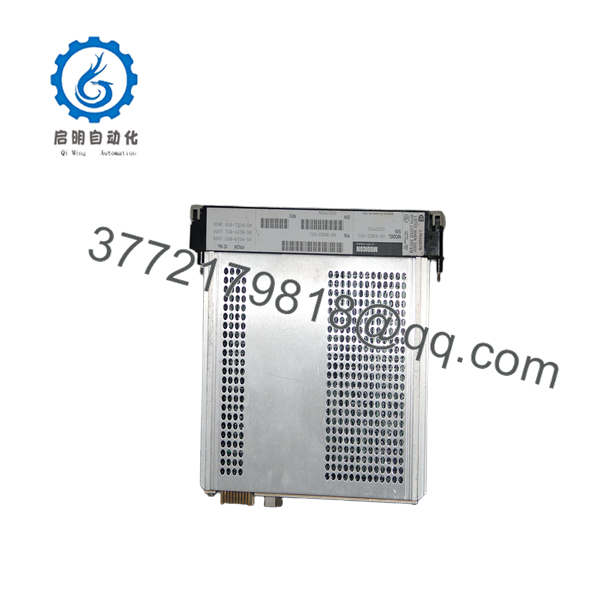

AS-B883-001

Firmware/Software Versions & Upgrade Notes

• Base Firmware Compatibility: Designed for Modicon 984 Controllers and Quantum systems utilizing 800-Series I/O drop adapters (e.g., CRA/CRI series).
• Software Environment: Configured via Modsoft, Concept, or ProWORX 32 programming environments using standard 800 Series I/O rack definitions.
• Compatibility Watchouts:
  • Ensure hardware revision levels match when running dual-redundant hot-standby architectures. Minor revision discrepancies in internal ASIC timers can cause sweep-time mismatch faults.
  • Do not attempt firmware flashes on legacy 800 Series hardware unless instructed by Schneider Electric technical bulletins. Upgrading PLC host controller software (e.g., to Control Expert via conversion wrappers) requires verifying that the remote I/O drop driver supports legacy 50 kHz counter register formats without data truncation.

Frequently Asked Questions (FAQ)

Why should I pay more for a New Surplus unit instead of buying a cheaper refurbished module?

Refurbished modules are often salvaged from decommissioned plants where they were exposed to heat, humidity, and constant electrical stress. Critical components like filter capacitors and input optocouplers degrade silently over time, which cosmetics cannot reveal. Buying our New Surplus AS-B883-001 guarantees zero operational hours, full dielectric integrity, and a lifespan comparable to factory-new parts, protecting your plant from costly unscheduled downtime.

Is the AS-B883-001 completely obsolete?

Yes, Schneider Electric / Modicon has transitioned the 800 Series to End-of-Life (EOL) status. Direct factory production has ceased, making New Surplus inventory the only way to source reliable, unused hardware without undergoing a multi-hundred-thousand-dollar DCS/PLC migration project.

Can I hot-swap this module while the backplane is powered?

No. Replacing the AS-B883-001 under power risks arching backplane pins, damaging adjacent modules, and corrupting controller memory tables. Always isolate rack power before pulling or inserting any 800 Series module.

How do I know this unit is truly “New Surplus” and not used?

Every AS- module in our stock comes directly from audited industrial surplus inventories, clean-room storage, or factory spare kits. Units retain their original anti-static packaging, show zero wear or scratching on backplane gold contacts, and pass comprehensive ESD and power-on test protocols performed by our internal technicians prior to dispatch.

Does the module retain its channel configuration after power cycles?

Yes. Module parameters—such as counter presets, signal filtering levels, and pulse-counting modes—are written directly from the CPU’s state RAM configuration table during rack boot-up. No onboard battery is required to maintain operational parameters.

What warranty comes with this module?

We back this New Surplus AS- with a full 1-year functional replacement warranty. If the module exhibits any technical defects under standard operating conditions, we replace it immediately from our physical stock.
