3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Input Type | Analog (voltage / temperature) |
| Typical Signal Ranges | PT100, ±500 mV (and related low-level) |
| Resolution | 12-bit (common for this family) |
| Isolation | Non-isolated (per many listings) |
| Compatibility | Modicon TSX Compact / Compact PLC systems |
| Power Supply | Drawn from I/O bus (5 V range) |
| Operating Temperature | 0 °C to 40–60 °C (source-dependent) |
| Weight | Approx. 0.31–0.69 lbs (0.14–0.31 kg) |
| Form Factor | Single or dual-slot Compact module |
| Status | Discontinued by manufacturer |
Exact channel configuration, filtering, and scaling details should be verified against the specific unit’s markings and the original Modicon Compact documentation before installation.
4. Product Introduction
The Schneider Electric AS-BADU-204 is a 4-channel analog input module designed for the Modicon TSX Compact (and related Compact) PLC platform. It accepts low-level signals such as PT100 RTDs and ±500 mV ranges, converting them into digital values for temperature monitoring and process measurement in legacy automation systems.
This module is commonly found in material-handling, packaging, and process applications that still run Compact-series controllers. Because it is discontinued, new-surplus and fully tested refurbished units remain the practical option for keeping existing racks operational without a full platform migration.

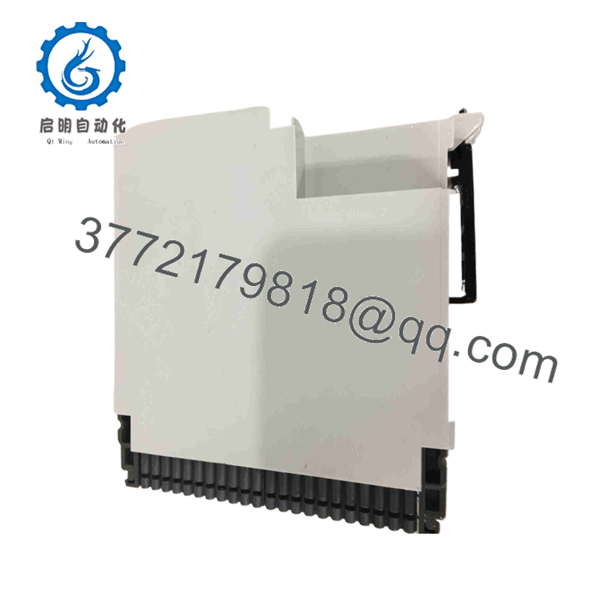

AS-BADU-204

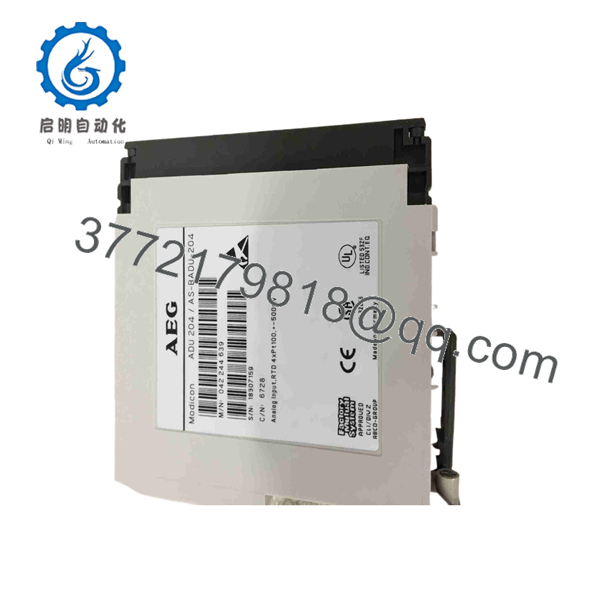

AS-BADU-204
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All channels read zero or full scale | Module not powered or bus fault | ✅ High | Confirm Compact rack power and module status LEDs | Verify backplane power before replacing module |
| One channel stuck or noisy | Sensor wiring, open RTD, or channel failure | ✅ High | Measure sensor resistance at terminals; force known value if possible | Check field wiring and sensor first |
| Incorrect scaling / offset | Configuration mismatch or DIP settings | ✅ Medium | Compare channel configuration in PLC software with actual sensor type | Reconfigure scaling or verify hardware jumpers |
| Intermittent readings | Loose terminal or ground noise | ❌ Low | Retorque terminals; check shield grounding | Improve field wiring and grounding |
| Module not recognized by CPU | Wrong slot address or defective module | ✅ High | Reseat module; check Compact I/O map | Replace module if address and power are correct |
If problems continue, photograph the module LEDs, note the exact terminal voltages or resistances, and capture the PLC diagnostic or I/O status screen for technical support.
6. Frequently Asked Questions (FAQ)
Q: Is the AS-BADU-204 still available new from Schneider?
A: No. It is discontinued. New-surplus and tested refurbished units are the current supply path for maintaining existing TSX Compact systems.
Q: Can this module accept both voltage and RTD signals?
A: It is primarily documented for low-level / temperature signals such as PT100 and ±500 mV ranges. Confirm the exact input type supported by the specific revision before connecting sensors.
Q: Is the module isolated?
A: Most listings describe it as non-isolated. Treat the channels as sharing a common reference and follow proper grounding practices to avoid noise or ground loops.
Q: Will a replacement retain the previous configuration?
A: Scaling and channel mapping live in the Compact PLC program, not on the module itself. After physical replacement you only need to verify the input values read correctly.
Q: What is the difference between AS-BADU-204 and AS-BDAU-204?
A: AS-BADU-204 is the analog input module. AS-BDAU-204 is a separate 4-channel analog output module. Do not interchange them.
Q: Can I hot-swap this module?
A: No. Power down the Compact rack or the affected I/O section before removal or insertion to avoid backplane or channel damage.
Q: Why choose a tested refurbished unit over waiting for a rare new-surplus piece?
A: Refurbished units undergo functional testing of all channels under load and are typically available with shorter lead times while still carrying a warranty.
