Siemens 6SC6108-0SN00 SIMODRIVE 610 AC Feed Drive 8/16A

Description

Key Technical Specifications

The exact part number is consistently described as an A38 8/16 A, 3-axis AC feed-drive power circuit board.

Identification warning: SIMODRIVE 610 contains several visually and electrically related power boards. For example, 6SC6108-0SE01 and 6SC6108-0SE02 are identified as A18 8/16 A, 1-axis variants, while 6SC6108-0SG02 is an A28 8/16 A variant. The 6SC6108-0SN00 designation specifically corresponds to the A38, 3-axis configuration.

Product Introduction

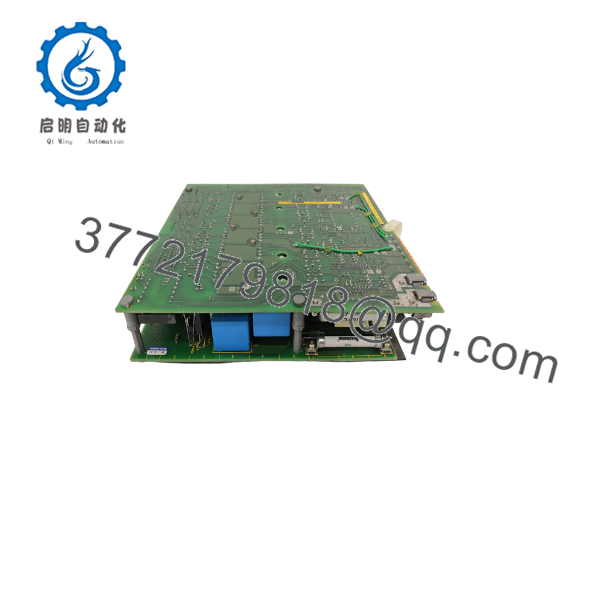

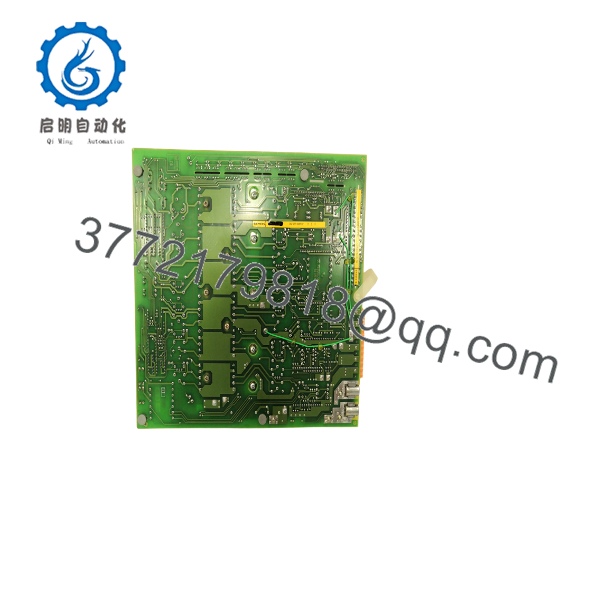

The Siemens 6SC6108-0SN00 is a legacy SIMODRIVE 610 AC feed-drive power circuit PCB, designated A38 and rated for an 8/16 A, 3-axis configuration. It forms part of the power section of Siemens SIMODRIVE 610 drive systems used in CNC and industrial motion applications.

This is not a generic replacement PCB. The exact module designation, current class, axis count, and surrounding SIMODRIVE hardware must match the original drive configuration. Siemens lists the product as discontinued, making exact-part-number sourcing and incoming functional inspection particularly important for legacy machine maintenance.

6SC6108-0SN00

6SC6108-0SN00

Installation & Configuration Guide

Stage 1 — Pre-Installation Preparation (~5–10 min)

1. Apply LOTO and isolate the complete SIMODRIVE 610 power system.
2. Allow the DC bus and associated capacitors to discharge according to the machine manufacturer’s procedure.
3. Verify the replacement label is exactly 6SC6108-0SN00.
4. Photograph the existing module, connectors, jumpers, cable routing, and mounting position.
5. Record the complete SIMODRIVE configuration, including the associated control, feed-drive, power-supply, and axis modules.
6. Prepare an ESD wrist strap, PH1 screwdriver, insulated tools where required, multimeter, labels, and documentation.
7. Do not begin PCB replacement until the drive has been confirmed de-energized.

⚠️ SIMODRIVE equipment contains hazardous electrical energy. DC-bus voltage can remain present after incoming power is removed. Follow the machine builder’s discharge and verification procedure rather than relying on elapsed time alone.

Stage 2 — Removing the Existing Module (~5–10 min)

1. Verify zero-energy status using the approved electrical measurement procedure.
2. Remove protective covers or access panels as specified by the machine documentation.
3. Photograph connector positions before disconnecting anything.
4. Label every connector and cable.
5. Disconnect wiring and interconnections without stressing the PCB or connector housings.
6. Release the board/module retaining hardware.
7. Remove the existing 6SC6108-0SN00 carefully and place it on an ESD-safe surface.
8. Inspect the backplane, connectors, bus contacts, and adjacent modules for overheating, contamination, or physical damage.
9. Keep the original board until the replacement has passed commissioning.

Stage 3 — Installing the 6SC6108-0SN00 (~5–10 min)

1. Compare the replacement directly against the removed unit.
2. Confirm the full ordering number: 6SC6108-0SN00.
3. Verify the A38 configuration and 8/16 A, 3-axis designation against the machine documentation.
4. Wear an ESD wrist strap while handling the replacement PCB.
5. Inspect connector pins and mating surfaces before installation.
6. Install the board in the correct SIMODRIVE 610 position.
7. Secure all retaining hardware using the machine manufacturer’s specified procedure.
8. Reconnect each connector according to the photographs and original documentation.
9. Check that no conductor is trapped or under mechanical stress.
10. Perform a final visual inspection before energization.

Installation checklist:

• Exact 6SC6108-0SN00 ordering number verified
• A38 configuration confirmed
• 8/16 A rating confirmed
• 3-axis configuration confirmed
• Connectors correctly identified
• ESD precautions maintained
• No damaged pins or connectors
• Original board retained for comparison

Stage 4 — Power-On & Testing (~10–20 min)

1. Recheck the power circuit and connector installation.
2. Use the approved measurement procedure to confirm safe electrical conditions before closing covers.
3. Restore power according to the machine manufacturer’s startup sequence.
4. Observe drive status and diagnostic indications.
5. Check for immediate overcurrent, DC-bus, axis, or power-stage faults.
6. Confirm that the CNC/control system recognizes the expected drive configuration.
7. Test each of the three associated axes individually at low speed.
8. Verify direction, enable behavior, actual-value feedback, and following error.
9. Run a controlled reference/positioning cycle.
10. Monitor drive current and fault behavior during a production-equivalent test.

⚠️ Do not begin with a full-speed production cycle. A power-board replacement can expose a pre-existing motor, feedback, cabling, or drive-control problem. Validate one axis at a time before returning the machine to normal operation.

Technical Pitfall & Survival Guide

1. Do not substitute by current rating alone.
The SIMODRIVE 610 family contains several 8/16 A boards with different axis configurations and module designations. 6SC6108-0SE01, 6SC6108-0SE02, and 6SC6108-0SN00 are not interchangeable simply because they share an 8/16 A designation.

2. Confirm the axis count.
The exact 6SC6108-0SN00 is documented as a 3-axis A38 board. Installing the wrong configuration can create a hardware mismatch even when the board physically appears compatible.

3. Investigate the original failure.
If the old power circuit failed from an overcurrent or short circuit, replacing the PCB without checking the motor, motor cable, braking circuit, feedback system, and associated drive electronics can result in another failure.

4. Treat legacy stock carefully.
The part has been discontinued since 2012. Current market inventory can consist of unused surplus, used, or refurbished units. Supplier condition and warranty therefore need to be verified separately from the original Siemens product status.

5. Keep the removed board.
For obsolete SIMODRIVE equipment, the original PCB is often useful for comparing component revisions, connector condition, labels, and failure symptoms if commissioning reveals a secondary problem.

Frequently Asked Questions (FAQ)

Q1. What is Siemens 6SC6108-0SN00?

The 6SC6108-0SN00 is a SIMODRIVE 610 AC feed-drive power circuit PCB, identified as an A38, 8/16 A, 3-axis module.

Q2. Is 6SC6108-0SN00 discontinued?

Yes. Available Siemens lifecycle information identifies the product as discontinued/end of product lifecycle, with September 30, 2012 listed as the lifecycle end date.

Q3. Is 6SC6108-0SN00 a complete servo drive?

No. It is a power circuit PCB/power module within the SIMODRIVE 610 architecture, not a standalone modern servo drive with its own independent controller and user interface.

Q4. What does A38 mean on this module?

The A38 designation identifies the particular SIMODRIVE 610 power-circuit configuration. For this exact part, references associate A38 with an 8/16 A, 3-axis AC feed-drive power circuit.

Q5. Can I replace 6SC6108-0SN00 with another 6SC6108 module?

Not automatically. Other 6SC6108 variants have different configurations. For example, 6SC6108-0SE01/-0SE02 are documented as A18 8/16 A, 1-axis variants, while -0SN00 is A38, 8/16 A, 3-axis. Match the complete Siemens ordering number and machine configuration before substitution.

Q6. Can a used or refurbished 6SC6108-0SN00 be used in a CNC machine?

Potentially, but it should be treated as a critical legacy power component. Verify the exact part number, inspect the PCB and connectors, perform appropriate electrical checks, and conduct controlled axis testing before returning the machine to production. Current aftermarket suppliers explicitly distinguish their own warranty from Siemens manufacturer warranty.

Q7. What should procurement verify before ordering?

Request confirmation of the exact 6SC6108-0SN00 part number, A38 designation, 8/16 A rating, 3-axis configuration, physical condition, serial/identification label, testing status, and warranty terms. For a production-critical CNC system, avoid accepting a visually similar SIMODRIVE 610 board as a substitute without engineering verification.
