Siemens HJD63F400 400A High Interrupting Circuit Breaker

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Siemens HJD63F400 is a 3-pole, 400-Amp Sentron HJD6 frame molded case circuit breaker designed for high-fault-current industrial power distribution panels, motor control centers (MCCs), and switchboards. Delivering a high interrupting capacity of 65 kA at 480 V AC, it provides immediate thermal-magnetic overcurrent and short-circuit clearance to protect downstream capital equipment.

Stocking a New Surplus Siemens HJD63F400 breaker provides an immediate risk mitigation buffer against catastrophic power room outages. Supply chain delays on high-interrupting industrial switchgear can cause multi-day plant shutdowns during unexpected trip failures or main line fault events. Sourcing genuine New Surplus guarantees pristine internal arc chutes, untouched copper contact faces, and factory-calibrated thermal bimetal elements—avoiding the high contact resistance, uncalibrated trip drifts, and internal housing hairline cracks common in refurbished or second-hand breakers.

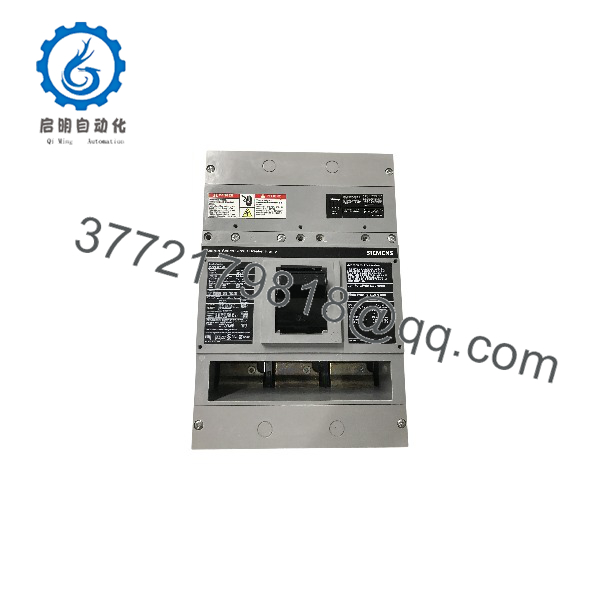

HJD63F400

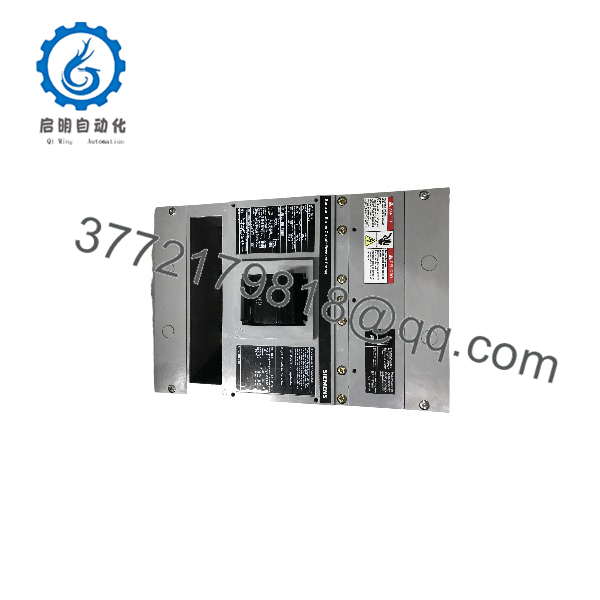

HJD63F400

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform strict Lock-Out/Tag-Out (LOTO) procedures on the upstream main power disconnect or transformer feed.
2. Verify zero potential on all incoming busbars using a calibrated 1000V AC digital multimeter.
3. Inspect the breaker housing for shipping damage; ensure the toggle handle operates smoothly through ON, OFF, and TRIPPED manual positions.

Stage 2: Removal

1. Disconnect incoming line-side and outgoing load-side cable lugs or busbar mounting hardware.
2. Unthread the main frame mounting screws securing the old HJD6 breaker to the pan assembly or backplate.
3. Lift the unit straight out from the bus assembly and place it in protective packaging.

Stage 3: Installation (Clone & Seat)

1. Secure the new Siemens HJD63F400 breaker to the panel structure using recommended Grade 5 mounting hardware.
2. Adjust the front-facing magnetic trip dial setting (2000 A to 4000 A) on the trip unit to match the arc flash and protection coordination settings specified in your electrical single-line diagram.
3. Clean all copper cable conductors and torque the wire lug set screws to the manufacturer-specified torque rating (typically 375 lb-in) using a calibrated torque wrench.

Stage 4: Power-On & Testing

1. Perform insulation resistance (Megger) testing phase-to-phase and phase-to-ground with the breaker closed, then across open contacts.
2. Switch the handle firmly to the ON position.
3. Re-energize the main line voltage and verify balanced phase voltages across the load terminals before applying downstream electrical loads.

Firmware/Software Versions & Upgrade Notes

• Electromechanical Protection: The HJD63F400 relies on an electromechanical thermal-magnetic trip unit and does not require firmware or microprocessor programming.
• Trip Unit Compatibility: The HJD6 frame supports interchangeable thermal-magnetic trip units within the Siemens JD frame architecture. Ensure any field-swapped trip unit carries UL 489 listing for the HJD6 line.
• Auxiliary Accessories: Internal accessories (e.g., shunt trips, auxiliary switches, undervoltage trip modules) must be factory-approved Siemens JD frame accessories installed via the dedicated accessory pockets.
• Configuration Warning: Never alter the factory-sealed thermal calibration screw located on the front face of the trip unit, as this voids UL safety listings and invalidates overcurrent trip curves.

Frequently Asked Questions (FAQ)

Q: How can I verify that this Siemens HJD63F400 is authentic New Surplus?

A: Every unit we offer is 100% Brand New Surplus. It arrives in clean original packaging with untouched mounting holes, unblemished lug sets, pristine arc chutes, clear factory serial tags, and intact side tamper-evident inspection seals. It has never seen field service or energization.

Q: Why is buying New Surplus circuit breakers safer than buying refurbished breakers?

A: Circuit breakers are safety-critical electrical protective devices. Refurbished breakers often have pitted contacts, weakened trip springs, or invisible micro-cracks in the molded phenolic housing caused by previous fault interruptions. A refurbished breaker may fail to open during a short circuit, causing severe arc flash hazards or catastrophic transformer fires. New Surplus units guarantee full factory dielectric strength and factory-calibrated protection.

Q: What is the main difference between the standard Siemens JD63F400 and the ?

A: The “H” designation stands for High Interrupting. While the standard JD63F400 provides a 35 kA interrupting rating at 480 V AC, the delivers a much higher 65 kA at 480 V AC interrupting capacity for high fault-current utility feeds.

Q: Can I install this breaker in 250 V DC industrial systems?

A: Yes. The Siemens is dual-rated for up to 600 V AC and 250 V DC applications. Ensure proper multi-pole series wiring according to Siemens DC connection diagrams for DC voltage ratings.

Q: What is the recommended torque specification for the line/load terminals?

A: Standard terminal lugs for the 400 A JD frame typically require 375 lb-in (42.3 N·m) of torque for recommended copper/aluminum wire gauges. Always refer to the exact torque chart stamped on the breaker side label.

Q: What warranty coverage comes with this circuit breaker?

A: We support this molded case circuit breaker with a full 1-Year Warranty. Every unit undergoes complete visual, mechanical, and insulation resistance checks prior to shipment.
