Key Technical Specifications
- Part Number: 381-639507-3
- Assembly Number: 308-639507-1
- Internal Designation: S1/016 Connection Board
- Card Format: VME bus PCB card
- Host Platform: TEL Clean Track MARK 8, 200 mm (8 in) wafer coater/developer
- Function: Interconnect between the S1/016 station module and the system’s control bus — exact pin function is backplane-revision specific
- Documentation Status: No published third-party datasheet exists for this part; pin-out, voltage rails, and signal mapping should be verified against your tool’s internal wiring prints, not assumed from the part number alone
- Source Condition: Pulled from a decommissioned, functioning Mark 8 track — not new manufacture
- Compatibility Note: Mark 8 systems shipped across multiple backplane and connector-keying revisions during their production run; slot position and connector orientation must match your track’s actual configuration
Product Introduction

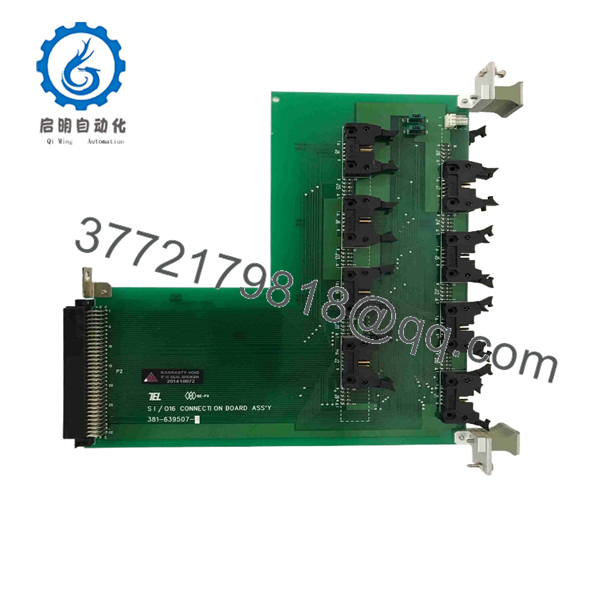

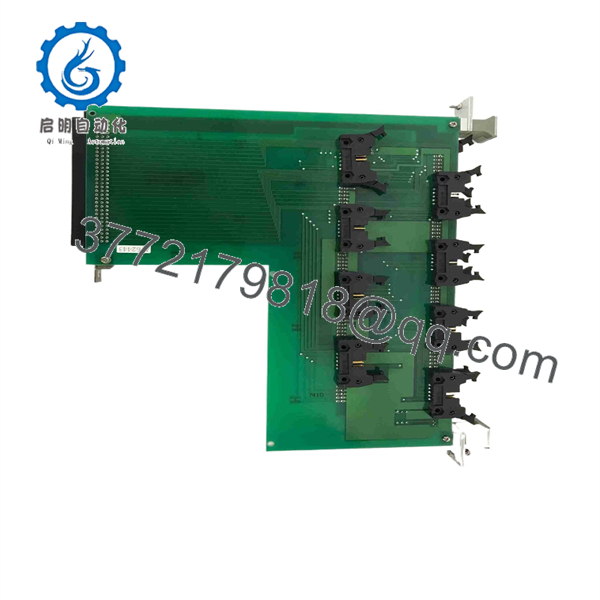

The TEL 381-639507-3 is a connection board, internally designated S1/016, built for the Clean Track MARK 8 photoresist coater/developer system. It sits in the tool’s VME backplane and carries the wiring between the S1/016 station module and the track’s control bus — a function-specific spare, not a general-purpose VME card.
Fabs running legacy Mark 8 tracks buy this part because TEL no longer supports the platform with new production, and the internal wiring on these boards is tool-specific enough that a generic VME card won’t substitute. Sourcing a pulled, tested unit from the same platform generation is the practical path to keeping an aging track running.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| S1/016 station reports comm fault or “board not detected” | Backplane connector fault or card seating issue | ✅ High | Reseat the card, inspect connector pins for bent contacts or corrosion | Reseat first; if fault persists, swap card |
| Station runs but reports intermittent signal dropout | Failing connector contact or cracked solder joint on the board | ✅ Moderate | Flex-test the card gently while monitoring the fault log for correlation | If dropout tracks physical flexing, the card is the likely cause |
| Entire station dead, no power indication anywhere on that slot | Upstream power supply or backplane fault, not this card | ❌ Low | Check backplane supply voltages at an adjacent known-good slot | Rule out the power distribution path before condemning this card |
| Track boots fine but logs configuration mismatch for this station | Wrong backplane revision or connector keying for this specific card | ✅ High | Compare physical connector keying and slot position against your tool’s wiring prints | Confirm revision compatibility before installing, not after |
| Random faults across multiple stations, not just S1/016 | System-wide backplane, grounding, or software issue | ❌ Low | Check whether faults are isolated to this station or spread across the bus | Investigate the shared backplane/software layer first |
If the fault persists after these checks, contact technical support with photos of the connector, the exact fault code from the track’s diagnostic log, and your tool’s backplane revision so the part can be confirmed compatible before it’s swapped in.
381-639507-3
381-639507-3
Frequently Asked Questions (FAQ)
Is there a datasheet for this board I can check pinouts against?
No independent datasheet exists for this part — it’s an internal TEL tool component, not a catalog item with published specs. Your tool’s own wiring prints for the S1/016 station are the real source of truth here. If you don’t have them, TEL field service or your fab’s document control group is the next call.
Will this fit any Mark 8 track, or is it revision-specific?
Assume it’s revision-specific until proven otherwise. Mark 8 tracks were built across several backplane and connector-keying revisions over their production life. Match the connector keying and slot position on your existing card before ordering — don’t rely on the part number alone as proof of fit.
Is this new or a pulled part, and does that matter?
This is a used, working pull removed from a decommissioned but functioning system — TEL hasn’t produced new Mark 8 spares for a long time, so pulled parts are the realistic sourcing path. What matters more than “new vs. used” here is whether the specific unit was verified working before removal; ask the seller for their test or removal notes.
Can I hot-swap this while the track is running?
Don’t. Pull power to the affected station before removing or seating this card. Backplane cards on tool platforms like this aren’t designed for live insertion, and doing it anyway risks damaging both the card and the backplane connector.
Does swapping this board retain the station’s configuration or calibration?
The board itself is a wiring interconnect, not a configuration-holding module, so station-level settings tied to the track’s controller should be unaffected. That said, verify station behavior after the swap rather than assuming — any physical wiring change is worth a functional check before returning the tool to production.
Why is a used part like this the only option, and what’s the warranty situation?
Because the platform is legacy and TEL isn’t manufacturing new spares for it. Warranty terms vary by seller — get the specific period in writing, since “working pull” and “warrantied” aren’t automatically the same commitment.
What’s the most common mistake when replacing one of these?
Ordering by part number alone without checking connector keying and slot position against the actual backplane revision in the tool. Two boards with similar part numbers on this platform can still be mechanically incompatible — verify against your own wiring prints before you pull the old one.
