Key Technical Specifications
- Product Type: Digital Input Module for Triconex Tricon safety systems
- Architecture: Triple Modular Redundant (TMR) — each module houses three independent legs, one per Main Processor
- Safety Rating: Tricon platform is rated for Safety Integrity Level 3 (SIL 3) per IEC 61508, used in ESD, F&G, and burner management applications
- Generation: DI3301 is the original hardware revision — later revisions DI3301S2 and DI3301S3 add improved diagnostics and fault tolerance
- Voting Method: Digital input data is voted 2-out-of-3 across the triplicated legs before reaching the application logic
- Diagnostics: Onboard channel-level fault detection with Pass/Fault/Active status indication (standard across Tricon I/O)
- Field Termination: Connects through a Tricon external termination panel (ETP) — not directly to field wiring at the module
- Note on unpublished specs: Exact channel count, input voltage rating, and isolation values for this specific revision are not consistently published across secondary-market listings. Confirm these against the nameplate and the Schneider Electric/Triconex product datasheet (PSS) before ordering wiring or termination panels
Product Introduction
The DI3301 is a digital input module for the Triconex Tricon safety system, built on Triconex’s Triple Modular Redundant (TMR) architecture. Each module carries three independent input legs that feed field signal data to the Tricon’s three Main Processors, which vote the data before it reaches the safety application.
Plants running older Tricon v9/v10 chassis keep the DI3301 in service because it’s the original hardware revision for that input slot, and swapping to a newer DI3301S2 or DI3301S3 card isn’t always a drop-in change. A tested surplus unit lets you match the existing chassis configuration without triggering a broader system requalification.

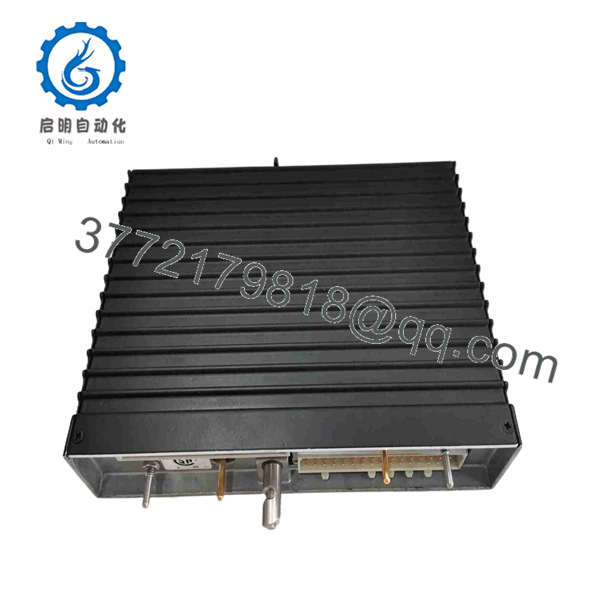

3301

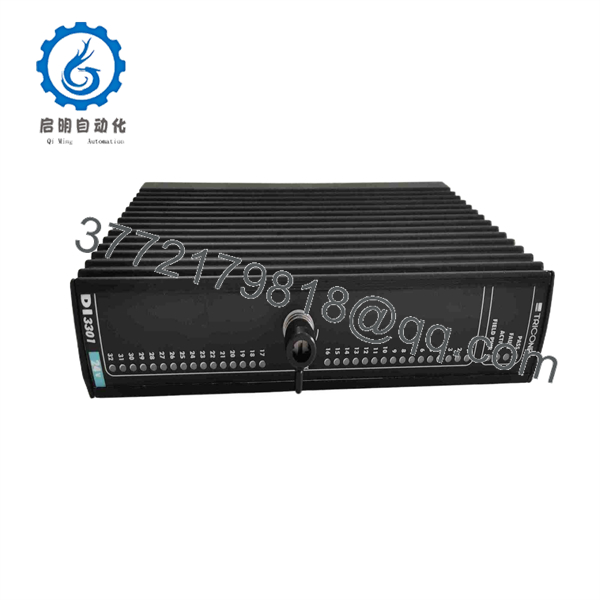

3301
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module Fault LED active on one leg only | Single-leg component failure | ✅ High | Check individual leg status in TriStation diagnostics | Tricon’s TMR design tolerates this — plan replacement, but the system stays safe on the remaining two legs |
| Fault LED active on the module as a whole, all legs | Backplane connector or power issue | ❌ Low | Reseat module, check chassis power rail voltage | Verify chassis power and connector seating before condemning the card |
| One input point reads incorrectly, others normal | Field wiring or termination panel fault | ❌ Low | Check the specific point at the ETP terminal, not the module | Isolate to the ETP and field wiring first — single-point issues are rarely the module |
| System won’t accept the module after insertion | Firmware/revision mismatch with chassis | ✅ High | Compare module revision (DI3301 vs S2/S3) against system firmware requirements in TriStation | Confirm firmware compatibility with Schneider Electric or your system integrator before installing |
| Point shows constant fault despite correct field signal | Onboard channel diagnostic tripped | ✅ High | Review the diagnostic buffer in TriStation for the specific channel | Usually indicates the module itself needs replacement or factory repair |
Given the safety-critical nature of this card, send us your TriStation diagnostic log and chassis firmware revision before you order — we’ll help confirm compatibility rather than have you guess.
Frequently Asked Questions (FAQ)
Is the DI3301 still in production?
No. This is a legacy Tricon input card, and current production has moved on to later revisions. What’s available now comes from decommissioned systems or dealer surplus stock, tested before resale.
Can I use a DI3301S2 or DI3301S3 as a direct swap for a DI3301?
Not automatically. Per Triconex’s own guidance, these represent different hardware generations with improved diagnostics and fault tolerance on the later revisions. Whether they’re interchangeable depends on your system firmware and safety certification requirements — check with Schneider Electric or your integrator before swapping.
Is this safe to install in a live safety system?
Don’t install any Tricon I/O module into an active, in-service safety loop without following your site’s management-of-change and bypass procedures. TMR architecture tolerates a single-leg or single-module fault, but installation still needs to go through your normal safety work process.
Why is a surplus safety module cheaper than new?
Because it’s pulled from decommissioned equipment or dealer inventory rather than fresh production, and the Tricon platform generation this card belongs to isn’t the current shipping line. You’re paying for a tested, working unit at legacy-platform pricing.
What’s tested before this ships?
At minimum, backplane power-up, module status LED verification, and functional input testing per leg where test equipment allows. Ask the seller for their specific test procedure and whether test documentation or photos are available — for a safety module, that documentation matters more than usual.
Does this come with any warranty, given it’s not from Schneider Electric directly?
Warranty terms are set by whoever is reselling the unit, separate from any original Schneider Electric/Triconex factory warranty. Confirm the specific terms and return window with the seller before ordering — don’t assume factory coverage carries over.
