3. Key Technical Specifications
| Parameter | Specification Value |
|---|---|
| Catalog Part Number | 3511 |
| Manufacturer | Triconex (Schneider Electric / Invensys) |
| System Compatibility | Tricon High-Density Chassis (v9 / v10 TMR Systems) |
| Number of Channels | 8 high-speed pulse/frequency inputs |
| Frequency Range | 1 Hz to 50 kHz |
| Sensor Compatibility | Magnetic Pickups (MPU), Active proximity probes, Zero-velocity sensors |
| Internal Architecture | Triple Modular Redundant (3 independent processing legs: A, B, C) |
| Isolation | 1000V DC channel-to-backplane optical isolation |
| Diagnostics | Continuous internal self-test, frequency over/under range, and sensor fault detection |
| Hot Swappable | Yes (supports online replacement without interrupting process safety loops) |
4. Product Introduction & Supply Chain Strategy
The Triconex 3511 is an 8-channel pulse input module designed specifically for Tricon Safety Instrumented Systems (SIS). Engineered to measure rotational speed and frequency signals on high-value turbomachinery, the 3511 processes incoming pulse trains across three isolated processing channels (Legs A, B, and C). The internal main processors perform 2-out-of-3 (2oo3) voting to provide highly accurate, trip-proof speed detection for critical turbine overspeed protection.
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All internal pulse conditioning circuitry, optical isolation barriers, and TMR logic channels undergo complete verification to ensure SIL3 system readiness.
In power generation, oil refining, and petrochemical processing, an undetected overspeed event can cause catastrophic machinery destruction, while a false speed-sensor trip halts plant production. Sourcing verified New Surplus Triconex 3511 modules ensures immediate replacement pathing to maintain active turbomachinery protection without extended manufacturer lead times.
3511

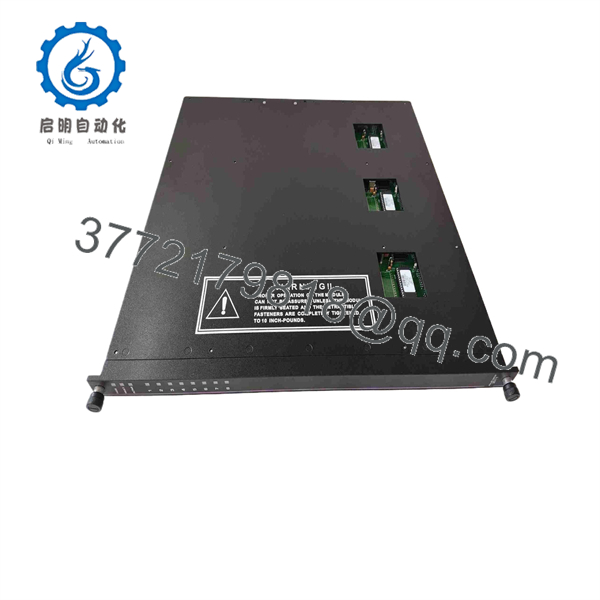

3511
5. Installation & Configuration Guide
Turbomachinery Safety Interlock Precaution
Before replacing or inserting any pulse input card on an active Tricon chassis, verify system key-switch state and confirm that adjacent module slots are healthy to prevent inadvertent turbine trips or loss of overspeed protection.
1
TriStation System Diagnostic Check
Prerequisite
1.TriStation System Diagnostic Check:Prerequisite.
Review system status in TriStation 1131 software. If performing an online hot-swap, confirm that the partner module in the adjacent slot is active and running with zero fault flags.
2
Old Module Extraction
Removal
2.Old Module Extraction:Removal.
Loosen the top and bottom module retaining thumbscrews. Pivot the ejector levers outward to disengage backplane connectors, then slide the card straight out along chassis guide rails.
3
Inserting New Module
Hardware Setup
3.Inserting New Module:Hardware Setup.
Align the side edges of the Triconex 3511 module with the guide rails in the target slot. Slide the module inward until the ejector levers touch the chassis frame.
4
Backplane Engagement
Seating
4.Backplane Engagement:Seating.
Push both top and bottom ejector levers inward simultaneously until they click flush against the front panel. Tighten retaining thumbscrews to ensure proper grounding.
5
Signal & Diagnostic Verification
Verification
5.Signal & Diagnostic Verification:Verification.
Confirm that the front-panel PASS LED illuminates solid green. Check TriStation 1131 to verify that frequency readouts match active shaft speeds and that all 8 pulse channels report healthy status.
6. System Compatibility & Maintenance Notes
The Triconex 3511 integrates into specialized turbomachinery safety architectures:
- Programming Environment: Configured and monitored via TriStation 1131 Developer workstation software.
- Redundancy Modes: Can be configured in single-slot mode or dual-slot hot-spare mode for continuous uninterrupted online maintenance.
- Terminal Panels: Pairs with specialized Tricon External Termination Panels (ETP) designed for magnetic pickup and pulse transducer interface wiring.
7. Frequently Asked Questions (FAQ)
Q: Is this Triconex 3511 module brand new or pulled from a decommissioned safety rack?
A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo complete diagnostic verification.
Q: What type of speed sensors can be wired to the Triconex 3511?
A: The 3511 accepts inputs from standard passive magnetic pickups (MPUs), active zero-velocity speed sensors, and digital proximity switches across a 1 Hz to 50 kHz range.
Q: Can the 3511 module be hot-swapped while the turbine is running?
A: Yes. When installed in a dual-slot configuration, Triconex TMR architecture allows you to hot-swap the primary module while the secondary hot-spare seamlessly maintains overspeed protection.
