Key Technical Specifications
- Product Type: Analog Input Module for Triconex Tricon safety systems
- Architecture: Triple Modular Redundant (TMR) — each module houses three independent legs, one per Main Processor
- Safety Rating: Tricon platform is rated for Safety Integrity Level 3 (SIL 3) per IEC 61508, used in ESD, F&G, and process control-critical applications
- Hazardous-Area Support: Confirmed compatible with the HiCTB32-TRI-AIISS-EL-PL intrinsically safe termination board, which routes 32 analog input channels (IN1–IN32) through IS barrier terminals for Zone 0/1 field devices
- Companion Card: The 3720 AI module uses the same termination board and system connector as the 3704E — a strong signal these are closely related AI card variants, though not confirmed identical
- Voting Method: In TMR mode, each channel’s three legs are read independently and combined using a mid-value selection algorithm before the value reaches the application
- Diagnostics: Onboard channel-level fault detection with Pass/Fault/Active status indication (standard across Tricon I/O)
- Field Termination: Connects through a Tricon external termination panel (ETP), not directly to field wiring at the module itself
- Note on unpublished specs: Exact input signal type (mA vs. voltage), resolution, and accuracy figures for the 3704E specifically aren’t reliably documented in public secondary-market sources. Confirm these against the nameplate and the Schneider Electric/Triconex product datasheet (PSS) before wiring or specifying IS barriers
Product Introduction
The 3704E is an analog input module for the Triconex Tricon safety system, built on Triconex’s Triple Modular Redundant (TMR) architecture. Each module carries three independent input legs that feed field signal data to the Tricon’s three Main Processors, which combine the readings using a mid-value selection algorithm before the value reaches the safety application.
The 3704E is documented specifically for intrinsically safe installations, pairing with the HiCTB32-TRI-AIISS-EL-PL termination board to bring 32 IS-rated analog channels into the chassis. Plants running Tricon systems in Zone 0/1 hazardous areas keep this card in service because swapping to a different AI variant means requalifying the termination board and IS barrier wiring, not just the module.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module Fault LED active on one leg only | Single-leg component failure | ✅ High | Check individual leg status in TriStation diagnostics | Tricon’s TMR design tolerates this — plan replacement, but the system stays safe on the remaining two legs |
| Fault LED active on the module as a whole, all legs | Backplane connector or power issue | ❌ Low | Reseat module, check chassis power rail voltage | Verify chassis power and connector seating before condemning the card |
| One analog channel reads incorrectly, others normal | IS barrier, termination board, or field wiring fault | ❌ Low | Check the specific channel at the HiCTB32 termination board terminals, not the module | Isolate to the termination board and IS barriers first — single-channel issues are rarely the module |
| System won’t accept the module after insertion | Firmware/revision mismatch with chassis, or wrong AI variant for the termination board in use | ✅ High | Confirm the module part number matches what the termination board and system firmware expect | Verify compatibility with Schneider Electric or your system integrator before installing |
| Channel shows constant fault despite correct field signal | Onboard channel diagnostic tripped, or IS barrier fault propagating upstream | ✅ High | Review the diagnostic buffer in TriStation for the specific channel | Check the IS barrier first; if clean, the module likely needs replacement or factory repair |
Given the safety-critical, IS-rated nature of this card, send us your TriStation diagnostic log and termination board part number before you order — we’ll help confirm compatibility rather than have you guess.

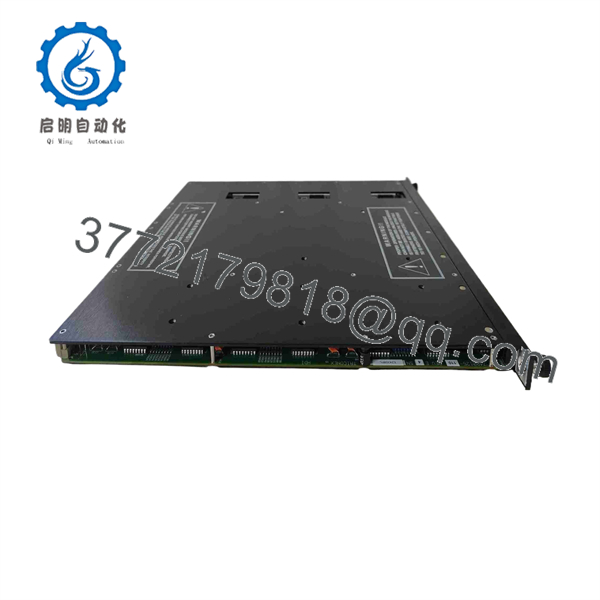

3704E

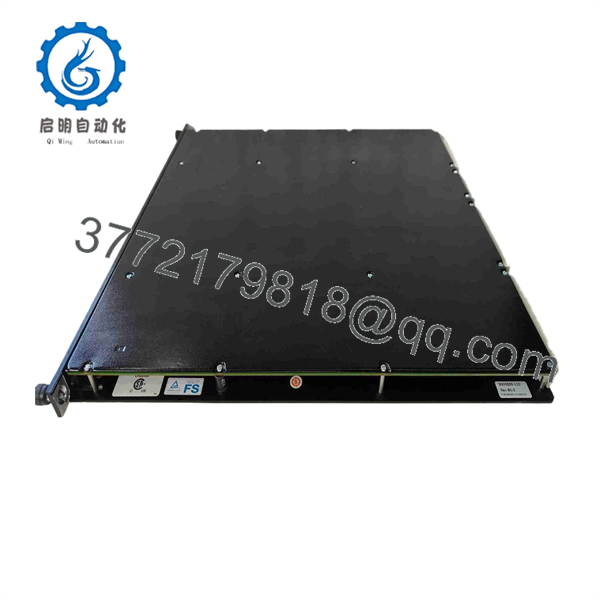

3704E
Frequently Asked Questions (FAQ)
Is the 3704E still in production?
No. This is a legacy Tricon analog input card, and current production has moved on. What’s available now comes from decommissioned systems or dealer surplus stock, tested before resale.
Can I use a different Tricon AI module in place of the 3704E?
Not without checking carefully. The 3704E is documented as compatible with the HiCTB32-TRI-AIISS-EL-PL intrinsically safe termination board, and other AI variants like 3700, 3700A, 3703E, and 3721 pair with different termination boards. Swapping the module without matching the termination board and IS barrier configuration risks a real mismatch, not just a cosmetic one.
Is this module intrinsically safe itself, or does it just support IS field wiring?
The 3704E connects to an intrinsically safe termination board that isolates and limits energy to hazardous-area field devices. The module sits on the safe side of that barrier. Don’t assume the module itself is rated for installation inside a hazardous area — verify the full system architecture against your site’s hazardous-area classification.
Is it safe to install this in a live safety system?
Don’t install any Tricon I/O module into an active, in-service safety loop without following your site’s management-of-change and bypass procedures. TMR architecture tolerates a single-leg or single-module fault, but installation still needs to go through your normal safety work process.
Why is a surplus safety module cheaper than new?
Because it’s pulled from decommissioned equipment or dealer inventory rather than fresh production, and the Tricon platform generation this card belongs to isn’t the current shipping line. You’re paying for a tested, working unit at legacy-platform pricing.
What’s tested before this ships?
At minimum, backplane power-up, module status LED verification, and functional analog input testing per leg where test equipment allows. Ask the seller for their specific test procedure and whether test documentation or photos are available — for a safety-loop analog input card, that documentation matters more than usual.
Does this come with any warranty, given it’s not from Schneider Electric directly?
Warranty terms are set by whoever is reselling the unit, separate from any original Schneider Electric/Triconex factory warranty. Confirm the specific terms and return window with the seller before ordering.
