Key Technical Specifications
- Function: Field wiring termination for Triconex 24 VDC digital input modules
- Input Points: 16 per panel, commoned PWR+ and PWR− terminals
- Fuse Protection: Individual fuse per input point, with blown-fuse indicator
- Module Pairing: 32-point DI modules require two 9563-810 panels (labeled sets 1-16 and 17-32)
- Weight: 0.36 kg
- Dimensions: 13.2 x 10.8 x 7.5 cm
- HS Code: 8537101190
- Warranty (typical secondary-market offer): 1 year
- ⚠️ Mounting Style, Terminal Torque Spec, Fuse Amperage Rating: Not confirmed from an OEM datasheet in this pass — verify against the Tricon Planning and Installation Guide before wiring a live panel.
Product Introduction
The Triconex 9563-810 is a termination panel that interfaces field-side 24 VDC digital input wiring with the Tricon safety and control system’s digital input modules. It handles 16 input points per panel with commoned power terminals, and since the matching DI modules carry 32 points, a full module swap means ordering two panels, not one.
Each input is individually fused with a blown-fuse indicator, so a single field-side fault doesn’t take down the whole channel group. This is a passive terminal assembly, not an active processing card — replacement is a mechanical and wiring task, not a firmware one.

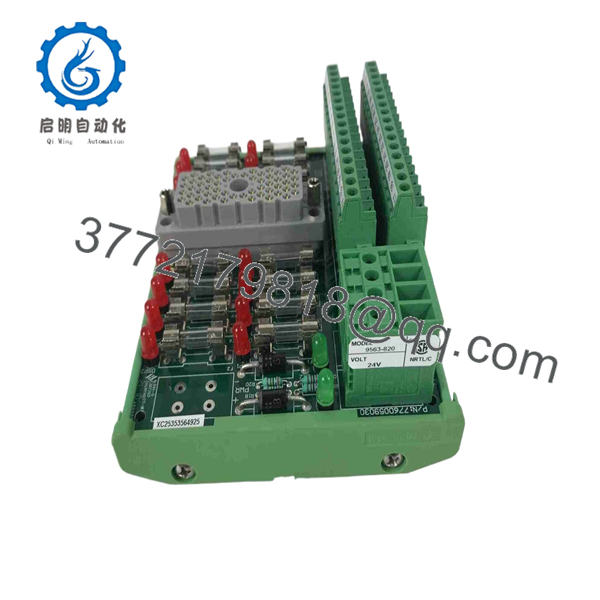

9563-810

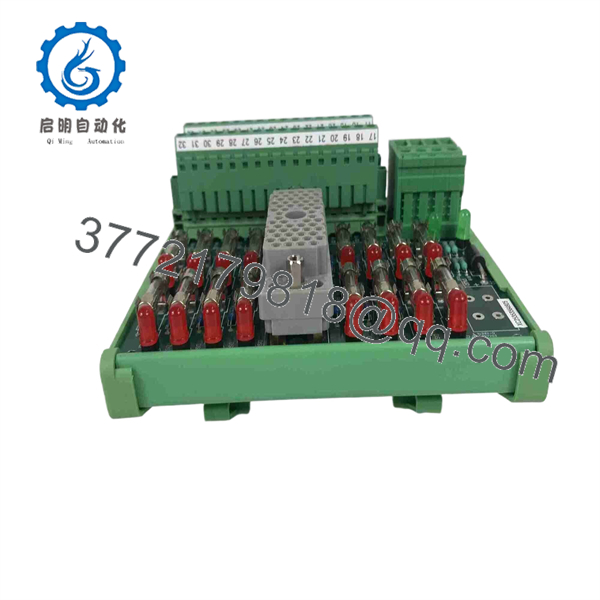

9563-810
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Single input point not registering | Blown fuse on that point | ✅ High | Check the blown-fuse indicator for that specific channel | Replace the fuse before replacing the panel |
| Entire panel dead, no points responding | Commoned power terminal fault or lost PWR+/PWR− | ✅ High | Measure voltage at the PWR+ and PWR− terminals | Check upstream power before condemning the panel |
| Intermittent point dropout | Loose field wiring or terminal corrosion | ❌ Low | Inspect and re-torque terminal connections | Almost always a wiring issue, not the panel itself |
| Only half the module’s points active | Second termination panel missing or miswired | ✅ High | Confirm both panels are installed for a 32-point module | Verify panel labeling (1-16 vs. 17-32) matches wiring |
| Fuse blows repeatedly on the same point | Field-side short or wiring fault | ❌ Low | Check the field device and cable run on that point | Fix the field fault; don’t just keep replacing fuses |
If a swap doesn’t resolve the issue, send photos of the panel labeling and terminal wiring to technical support — mismatched panel pairs on 32-point modules is a common troubleshooting dead end.
Frequently Asked Questions (FAQ)
Do I need one panel or two for my digital input module?
Depends on the module. If you’re running a 32-point Triconex digital input module, you need two 9563-810 panels — one labeled for points 1-16, the other for 17-32. A single panel only covers half the module’s points.
Is this an active module or just a terminal block?
Just termination — it’s a passive panel for field wiring, not an electronic processing card. There’s no firmware, no configuration, and no programming to worry about when you swap it.
Can I hot-swap this panel?
To be honest, that depends on your specific Tricon system redundancy configuration and whether the field wiring stays live during the swap. Check your system’s installation guide before pulling terminals on a live safety loop.
Why is this cheaper than a factory-new quote?
Because it’s typically New Surplus or Factory Sealed pull-out stock from the secondary market rather than a current Schneider Electric production order. The Tricon platform has an active surplus market since it’s a long-running installed base.
What happens if a fuse blows on one input point?
That single point goes down, but the rest of the panel keeps working — that’s the point of individual per-point fusing. The blown-fuse indicator tells you which one to check without pulling wiring on the whole panel.
Is this part still in production, or am I buying old stock?
Verify current availability directly with Schneider Electric or an authorized distributor. Given how long the Tricon platform has been in the field, a lot of what’s available through resellers is New Surplus rather than freshly manufactured.
