3. Key Technical Specifications
- Panel type: External termination panel for digital input modules
- Input points: 16
- Power terminals: Commoned PWR+ and PWR–
- Protection: Individual fuse per input with blown-fuse indicator
- Leakage current: Max 3.3 mA, typical 2.5 mA per point
- Compatible modules: 24 V digital input modules such as 3503E (32-point TMR) and 3505E (low-threshold)
- For 32-point modules: Two 9563-810 panels required (one for points 1–16, one for 17–32)
- Labels: Supplied with two sets (1–16 and 17–32)
- Typical keying: Small key position 1
- Mounting: Designed for use with Triconex chassis / external termination assemblies
4. Product Introduction
The Triconex 9563-810 is an external termination panel used with Triconex digital input modules in safety instrumented systems (SIS). It provides a clean, fused interface between field wiring and the I/O module, with commoned power terminals and individual fuse protection plus blown-fuse indication for each of the 16 points.
For 32-point modules such as the 3503E or 3505E, two panels are installed—one covering channels 1–16 and the second covering 17–32. The panel simplifies field wiring, improves maintainability, and adds a clear visual indication when a fuse has opened, helping reduce troubleshooting time in safety-critical applications.
9563-810

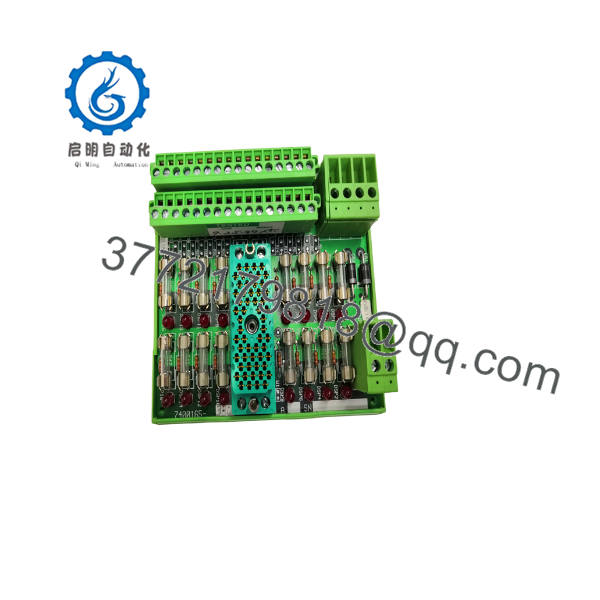

9563-810
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No input status on module | Blown fuse on termination panel | ✅ High | Inspect fuse indicators; measure continuity across fuse | Replace blown fuse with correct rating; investigate field short |
| Multiple channels dead | Common power (PWR+/PWR–) open or loose | ✅ High | Measure voltage at common power terminals | Verify field power supply and terminal tightness |
| Intermittent input | Loose field wire or poor terminal contact | ✅ Medium | Tug-test wires; re-terminate if needed | Use proper ferrules and torque terminals to specification |
| Module reports channel fault but fuse OK | Wiring error or incorrect keying | ✅ High | Confirm panel keying matches module; check point numbering labels | Verify correct panel (1–16 vs 17–32) and key position |
| High leakage or false ON | Field device leakage or ground loop | ❌ Medium (system) | Measure leakage current per point | Address field device or isolation issue before replacing panel |
If the problem persists after fuse and wiring checks, photograph the panel, note which channels are affected, and contact technical support with the module type and serial numbers.
6. Frequently Asked Questions (FAQ)
Q: What is the 9563-810 used for? A: It is an external termination panel that provides fused field connections for Triconex 24 V digital input modules. Each of the 16 points has its own fuse and blown-fuse indicator.
Q: Do I need one or two panels for a 32-point module? A: Two panels are required. One handles points 1–16 and the second handles points 17–32. Matching labels are supplied.
Q: Which modules is it compatible with? A: Primarily 24 V digital input modules such as the 3503E (TMR, commoned in groups of 8) and 3505E (low-threshold version). Confirm exact compatibility with your chassis and module revision.
Q: Are the fuses replaceable? A: Yes. Each input is individually fused. Replace only with the correct fuse type and rating specified for the panel and module combination.
Q: Does the panel provide isolation? A: It provides fuse protection and organized termination. Galvanic isolation is handled by the Triconex input module itself.
Q: Is this panel still in active production? A: Triconex termination panels of this series remain available through authorized and surplus channels. Confirm current stock and any superseding part numbers when ordering.
Q: Can I mix this panel with other termination styles? A: Use only the termination panels specified for your particular digital input module and chassis configuration to maintain proper keying, labeling, and fuse protection.
