Key Technical Specifications
- Designation: AO2481, associated with part number 7400209-010
- System Platform: Triconex Tricon / Trident Triple Modular Redundant (TMR) safety system
- Function: Provides the physical baseplate connection point in the I/O chassis for an analog output module, routing field wiring to the module’s system connector
- Typical Kit Contents (per standard Triconex baseplate kit convention): I/O baseplate, I/O interconnect assembly, slot cover, terminal cover
- Mounting: Installs into the Tricon/Trident I/O chassis alongside other baseplates in the same rack
Important honesty note: Reseller listings for this part number circulating online are inconsistent and, in several cases, contain specs that don’t add up — one site lists it with a “220 V, 50 kHz” rating (not plausible for a low-voltage DC output baseplate), and another mixes analog output and digital input specifications in the same listing. Those numbers look like templated or AI-generated filler text rather than a real datasheet, and we’re not going to repeat them here as fact. Get channel count, voltage rating, isolation, and physical dimensions confirmed against the official Schneider Electric/Triconex documentation for AO2481 / 7400209-010, or against your original bill of materials, before you finalize an order — don’t take a resale listing’s spec table at face value on this one.
Product Introduction
The Triconex AO2481 (P/N 7400209-010) is a baseplate assembly used in Tricon and Trident TMR safety instrumented systems, providing the mechanical mounting and field-wiring interconnection point for an analog output module in the system’s I/O chassis. It’s a supporting component, not the analog output card itself — the module plugs into this baseplate, and the baseplate handles the physical wiring interface back to the field.
Buyers sourcing this part should confirm they actually need the baseplate rather than the I/O module card. In safety-system replacements, mixing those two up is a common and completely avoidable delay — check your original parts list or the removed hardware’s exact designation before ordering.

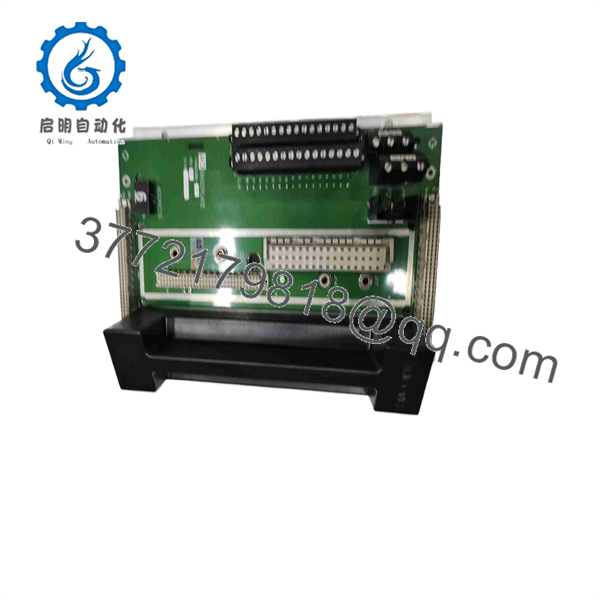

AO2481
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Analog output module won’t seat or register in the chassis | Wrong baseplate type, damaged connector pins, or mismatched slot | ✅ High | Visually inspect the baseplate’s system connector for bent/damaged pins and confirm baseplate type matches the module | If the connector is damaged or it’s the wrong baseplate kit, replacement is the right call |
| Field wiring shows continuity issues at the terminal block | Loose terminal, corrosion, or wiring fault | ❌ Low | Check terminal tightness and continuity with a multimeter before touching the baseplate itself | Usually a wiring/termination issue, not a baseplate fault |
| Output channel reads a fault but the module tests good on a bench | Baseplate wiring path or connector fault | ✅ Moderate | Swap the module into a known-good baseplate/slot if possible to isolate module vs. baseplate | If the fault follows the slot rather than the module, suspect the baseplate |
| Physical cracking, discoloration, or scorching on the baseplate housing | Age, overvoltage event, or environmental exposure | ✅ High | Visual inspection of the glass-fiber-reinforced housing and terminal area | Replace the baseplate — don’t attempt to repair a cracked or scorched housing in a safety system |
| Confusion about whether you need AO2481 or the actual output module card | Baseplate and module are separate line items | ✅ High | Cross-reference your original bill of materials or the pulled hardware’s exact part number | Confirm before ordering — this mix-up is common and causes avoidable delays |
If none of these checks resolve it, contact technical support with the exact part number from the nameplate, a photo of the connector and terminal area, and — for safety-system components — your system’s TÜV/SIL documentation reference if you have it on hand.
Frequently Asked Questions (FAQ)
Is this a new unit or used surplus? This unit is sold as New Surplus — genuine Triconex/Schneider Electric stock sourced from decommissioned systems or excess project inventory rather than a fresh factory order. It’s gone through inbound source verification and functional/continuity testing before listing. Ask if you need factory-sealed stock specifically — we’ll confirm what’s actually in hand.
Is the AO2481 the analog output module, or the baseplate? It’s the baseplate/mounting assembly — not the I/O module card itself. The actual analog output module plugs into this baseplate. If you need the module, that’s a separate part number; tell us what you pulled out of the chassis and we’ll help confirm the right match.
Why do online listings for this part show conflicting specs? Good question to ask, and we noticed it too. Several third-party resale sites carry what looks like auto-generated or templated product text for this part number, and the numbers don’t hold together (mixed analog/digital specs, an implausible voltage/frequency rating). We’re not going to repeat unverified numbers here — if you need confirmed electrical specifications, we’ll pull them from Schneider Electric/Triconex documentation or your system’s original engineering package before you order.
Is this safe to use in a SIL-rated safety system? Genuine Triconex hardware carries its safety certification as part of the overall system design, not as an independent claim we can make on a resale listing. If this baseplate is going into a certified SIS, verify the exact part revision and any relevant TÜV/IEC 61508 documentation against your system’s safety case before installation — don’t assume compatibility based on the base part number alone.
Can I hot-swap the module on this baseplate while the system is live? Tricon and Trident systems are generally designed to support online module replacement without a full system shutdown, but the specific procedure depends on your system configuration and the module type involved. Follow your site’s management-of-change procedure and the official Triconex maintenance documentation rather than assuming based on general TMR system behavior.
What’s the warranty on a surplus baseplate like this? Standard warranty terms apply to functional failures found after receipt within the coverage window — ask for the specific term at checkout, since surplus stock typically carries a shorter warranty than a factory-new order, and safety-system components in particular are worth confirming the terms on directly.
