- Key Technical Specifications
| Parameter | Value |
| Manufacturer | Unitrol Electronics |
| Part / Model Number | 9180B-8.9180-8A (9180B-8) |
| System Compatibility | Unitrol “The Solution” Resistance Weld Controllers |
| Module Type | Integrated Power Supply & Digital/Analog I/O Control Board |
| Input Voltage | 220 V AC or 24 V DC internal logic bus |
| Communication Ports | RS-485 / Industrial Ethernet Interface |
| Enclosure Rating | IP65 equivalent industrial cabinet integration |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | −40 to 85 °C (−40 to 185 °F) |
| Relative Humidity | 5 to 95% non-condensing |
| Physical Dimensions | ~ 12 × 10 × 9 inches |
| Unit Weight | ~ 17 lbs |
- Product Introduction & Supply Chain Strategy
This Unitrol Electronics 9180B-8.9180-8A assembly provides power regulation and I/O signal management for Unitrol resistance welding controllers. It manages initiation sequences, valve triggering, and real-time current feedback across automated spot, seam, and projection welding cells.
Maintaining this control board as New Surplus inventory prevents severe production halts in high-throughput manufacturing plants. Bypassing third-party refurbished units eliminates risks from aged electrolytic capacitors and degraded relays under high thermal stress, avoiding unexpected downtime costs that far exceed component pricing.

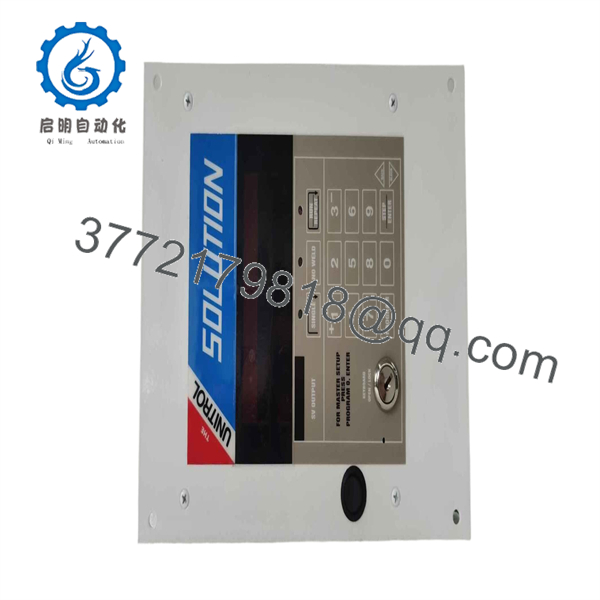

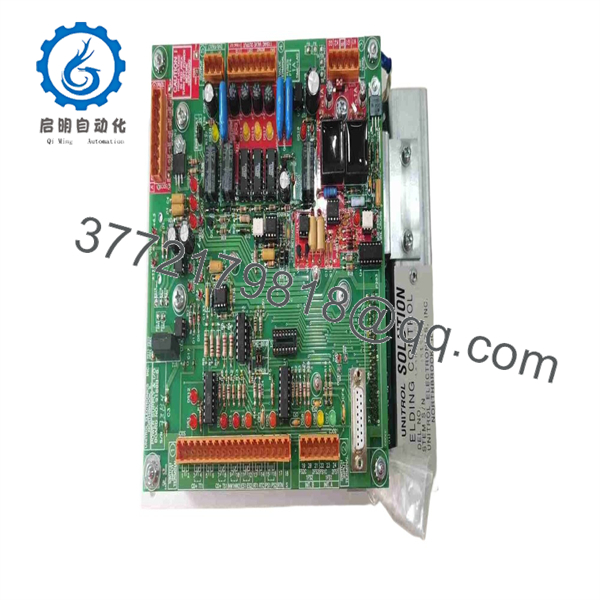

9180B-8.9180-8A
9180B-8.9180-8A
- Installation & Configuration Guide
1.Pre-Installation & Safety Verification:Prerequisite Phase.
Initiate complete lock-out/tag-out (LOTO) procedures on the primary power feed and pneumatic supplies to the welding station. Put on a grounded ESD wrist strap before opening the enclosure. Take high-resolution photographs of all terminal block wiring, ribbon cables, DIP switches, and jumper positions to establish a clear wiring baseline.
2.Module Removal:Extraction Phase.
Disconnect terminal plugs and keylock harness connectors from the 9180B-8.9180-8A board. Loosen the panel retention screws securing the module to the backplate cabinet. Carefully pull the assembly straight out without placing mechanical stress on surrounding I/O pin headers or ribbon connectors.
3.Configuration & Seating:Cloning & Hardware Installation.
Inspect the New Surplus 9180B-8.9180-8A module. Verify all hardware DIP switches, node jumpers, and voltage selection pins match the original board configuration exactly. Mount the module onto the backplate chassis, tighten retention screws securely, and reattach terminal blocks and harnesses according to your baseline photo.
4.Power-On & System Validation:Testing & Verification Phase.
Re-energize the logic power supply rail and verify DC voltage levels remain stable at 24 V DC. Check the status LEDs on the Unitrol front panel: confirm power indication lights illuminate solid green and communication status transitions from startup sequence to operational state without fault codes. Run a dry weld cycle to verify signal sequencing before resuming production.
- Firmware/Software Versions & Upgrade Notes
- Firmware Dependencies: Ensure the executive firmware on the 9180B-8.9180-8A board aligns with your main Unitrol welding control processor version. Mismatched firmware releases can lead to communication timeouts or incorrect current scaling.
- Backward Compatibility: Revision variations ending in different sub-specifiers (such as 9180B-7 vs 9180B-8) may contain updated power supply traces or terminal pin layouts. Replacing with the exact 9180B-8.9180-8A part number guarantees pin-for-pin compatibility.
- Firmware Flashing Risks: Avoid attempting field firmware upgrades on an active welding line board during hardware swaps. Unplanned firmware changes can erase custom weld schedules and cause system sequence faults.
- Frequently Asked Questions (FAQ)
Q: Is this Unitrol Electronics 9180B-8.9180-8A module brand new?
A: Yes. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All boards undergo static and electrical inspection to confirm zero operation hours and OEM-level reliability.
Q: Why choose New Surplus over refurbished Unitrol welding boards?
A: Resistance welding control panels operate in demanding electrical and thermal environments. Refurbished modules often retain worn power components that can fail under heavy load, causing thousands of dollars in line downtime. New Surplus units deliver a full 10–15 year operational design life, minimizing Total Cost of Ownership (TCO).
Q: Is the 9180B-8.9180-8A board discontinued by the manufacturer?
A: Yes, legacy Unitrol 9180 series components are classified as discontinued/end-of-life (EOL) items. Storing 1–2 units on-site as safety buffer stock is essential to prevent long lead times during an emergency line failure.
Q: Can I replace a 9180B-8 board while the main panel is powered on?
A: No. Hot-swapping the 9180B-8.9180-8A power supply and I/O board introduces high-current transients that can damage internal logic ICs and corrupt stored weld schedules. Always isolate power prior to servicing.
Q: What warranty is provided with this New Surplus board?
A: All New Surplus Unitrol boards come with a comprehensive 1-year replacement warranty, fully backed by verified inspection protocols and protective anti-static packaging.
