3. Key Technical Specifications
| Parameter | Value |
| Manufacturer | Watlow Electric Manufacturing Company |
| Model Code | DC10-12P0-0000 |
| Controller Type | DIN-A-MITE Style C SCR Controller |
| Number of Phases | Single Phase, 1 controlled leg |
| Operating Voltage Range | 100 to 120 VAC (+10%, -15%) |
| Amperage Rating | 55 A RMS maximum @ 50°C (122°F) ambient |
| Control Input Signal | Phase Angle 4 to 20 mA DC |
| Cooling Method | Natural convection integrated heat sink |
| Short Circuit Rating (SCCR) | 200 kA with recommended fast-acting fuses |
| Mounting Configuration | 35 mm DIN-rail or direct back-panel mount |
| Terminal Wire Range | Line/Load: 14 to 3 AWG (2.5 to 25 mm²); Input: 24 to 16 AWG |
| Operating Temperature | -34°C to 80°C (-29°F to 176°F) |
4. Product Introduction & Supply Chain Strategy
The Watlow DC10-12P0-0000 is a heavy-duty single-phase SCR power controller engineered for precise industrial heat regulation using a 4–20mA phase-angle firing process. Processing plants, plastics extruders, and thermal processing facilities rely on this module to maintain tight temperature tolerances without mechanical wear.
Procuring this module as New Surplus ensures immediate operational readiness without paying OEM lead time premiums. Stocking factory-sealed units mitigates the immense Total Cost of Ownership (TCO) associated with unexpected heating element control failures, shielding thermal operations from catastrophic batch losses and unplanned shutdowns.

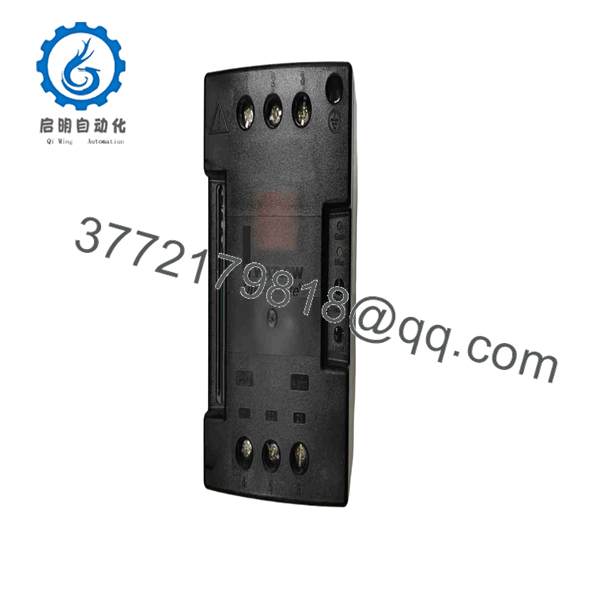

DC10-12P0-0000

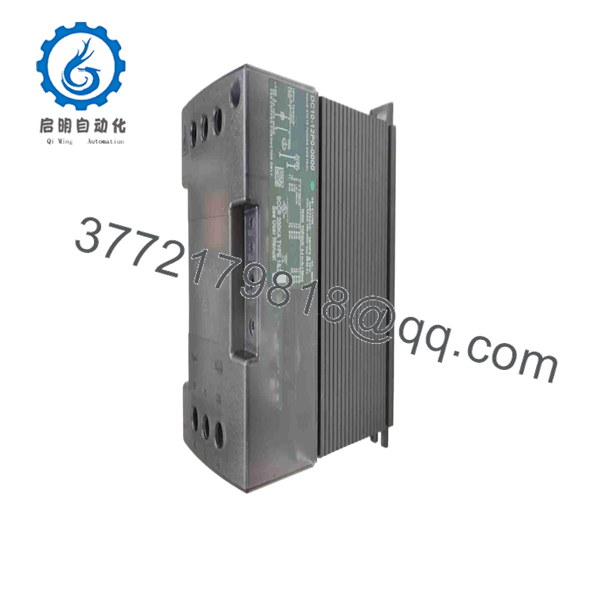

DC10-12P0-0000
5. Installation & Configuration Guide
- Stage 1: Pre-Installation (Prep & Safety)
- Execute full lock-out/tag-out (LOTO) protocols on primary 120VAC line power and control loops.
- Put on a grounded ESD wrist strap before handling input terminals.
- Photograph existing wiring routing and terminal placements on the old unit.
- Stage 2: Removal
- Disconnect control input wires (terminals 1 & 2) and line/load power conductors using a insulated screwdriver.
- Release the DIN-rail latch or remove the four M4 panel-mount screws to disengage the heat sink assembly from the enclosure backplate.
- Stage 3: Installation (Clone & Seat)
- Verify the panel enclosure provides adequate vertical clearance for natural convection cooling across the heat sink fins.
- Securely latch the new Watlow unit to the 35mm DIN rail or torque panel fasteners.
- Wire line and load power conductors into compression terminals using 14–3 AWG copper wire rated for 75°C minimum. Torque line/load connections to 24 in-lb (2.7 Nm).
- Stage 4: Power-On & Testing
- Confirm 0 VDC insulation resistance to ground across all phase outputs before energizing.
- Apply control power and feed a 4 mA signal; verify zero output voltage.
- Increase loop signal to 20 mA and check for linear 120 VAC proportional output across the load.
- Re-torque line/load terminal screws after 48 hours of initial operation to compensate for copper cold flow.
6. Firmware/Software Versions & Upgrade Notes
- Firmware Engine: Hardware-driven analog Phase Angle SCR logic with built-in zero-cross/phase-angle firing circuits. No software downloads or onboard microcode updates are required.
- Compatibility: Fully backward-compatible drop-in replacement for legacy Watlow DIN-A-MITE Style C phase-angle models running 120VAC 4–20mA loops.
- Integration Caveat: Ensure the loop driver or process controller output interface is configured specifically for a 4–20mA current loop (not a 0–10VDC or burst-fire pulse output). Swapping control logic modes without checking loop impedance can burn out driver outputs or cause erratic heater switching.
7. Frequently Asked Questions (FAQ)
Q: Is this Watlow DC10-12P0-0000 a refurbished or pulled component? A: No. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.
Q: Why choose New Surplus over a cheaper refurbished unit? A: Refurbished power controllers often carry hidden thermal fatigue on SCR thyristors and degraded internal gate drive components. While a refurbished unit might save 200 upfront, a sudden short-circuit failure can ruin a 40,000 production run or trigger an emergency plant outage. Our New Surplus units offer full expected operating lifespans at a fraction of factory lead times.
Q: Can I swap a burst-fire DIN-A-MITE module with this DC10-12P0-0000 phase-angle unit? A: Only if your heaters and process accept phase-angle power delivery. Phase angle variable-voltage output is designed for fast-responding loads like infrared lamps or low thermal mass elements. Verify load specifications before replacing a zero-cross module with a phase-angle controller.
Q: Is hot-swapping allowed on this controller? A: No. You must never insert or disconnect power or control terminals while the 120VAC line supply is energized. Hot-swapping risks high-voltage arcing, damage to the terminal blocks, and severe injury to personnel.
Q: What fuses are required to maintain the 200kA SCCR rating? A: You must use fast-acting semiconductor fuses (such as Cooper Bussmann or Ferraz Shawmut I²t rated fuses) sized appropriately for 55A maximum continuous current. Standard branch circuit breakers will not clear fast enough to protect internal SCR thyristors from short-circuit faults.
Q: What warranty comes with this New Surplus unit? A: Every unit comes backed by a comprehensive 1-year functional warranty, providing verified OEM performance and complete procurement peace of mind.
