3. Key Technical Specifications
| Parameter | Specification / Value |
| System Compatibility | Woodward MicroNet TMR and Simplex Control Systems |
| Channel Capacity | Supports up to 32 discrete input field channels |
| Field Voltage Rating | 24 V DC nominal (18 to 32 V DC operating range) |
| Connection Type | Multi-pin D-sub header to field screw terminal blocks |
| Terminal Wire Size | 12 to 24 AWG (0.2 to 2.5 mm²) stranded or solid |
| Operating Temperature | −40°C to +70°C (−40°F to 158°F) |
| Storage Temperature | −40°C to +85°C (−40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Isolation Rating | 500 V AC field-to-logic optical isolation |
| Mounting Configuration | Standard DIN-rail mountable channel chassis |
4. Product Introduction & Supply Chain Strategy
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Woodward 5437-687 serves as a high-density Field Termination Board (FTB) that channels field discrete signals directly into the Woodward MicroNet control architecture, delivering reliable signal conditioning for critical steam turbine, gas turbine, and compressor governor systems.
Maintaining this unit as a New Surplus buffer stock protects power generation and petrochemical facilities against catastrophic trip events. Because turbine control hardware is mission-critical, running refurbished or second-hand termination boards exposes your system to micro-fissures in PCB traces, cold solder joints, and corroded terminal screws caused by past thermal exposure. Investing in factory-verified New Surplus guarantees pristine terminal integrity and full insulation strength, mitigating the risk of intermittent false-trips that can cost over $100,000 per hour in unscheduled plant downtime.

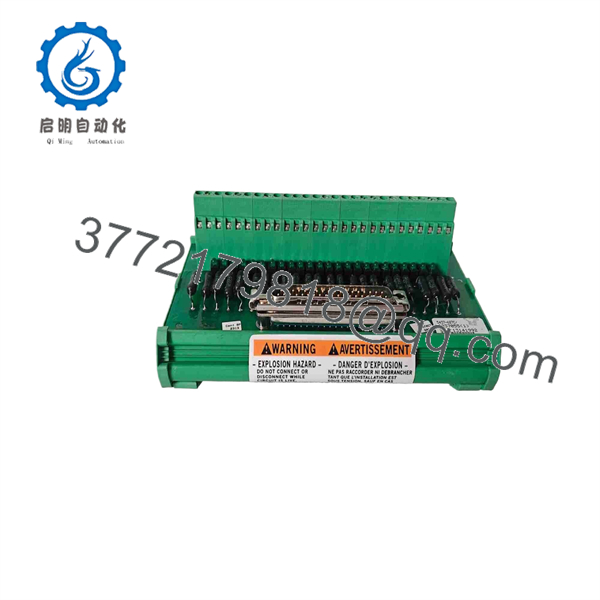

5437-687

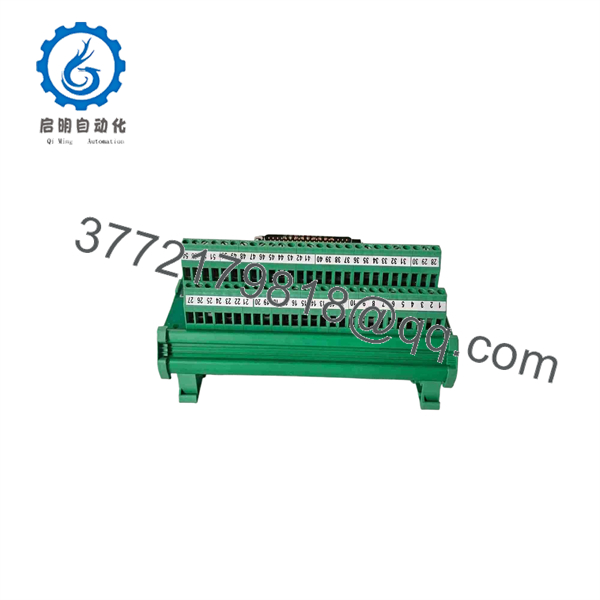

5437-687
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- De-energize all 24 V DC field wetting supplies connected to the termination block and follow strict lock-out/tag-out (LOTO) procedures.
- Wear a grounded wrist strap to prevent electrostatic discharge (ESD) from damaging sensitive bus electronics.
- Document wire numbers, cable tags, and terminal designations before removing existing connections.
Stage 2: Removal
- Unbolt and disconnect the high-density interface cable running to the MicroNet rack module.
- Loosen field wiring terminal screws and carefully extract the wire bundles without applying excess tension to the harness.
- Release the DIN-rail locking mechanism using a flathead screwdriver and lift the FTB off the mounting rail.
Stage 3: Installation (Clone & Seat)
- Snap the new 5437-687 FTB firmly onto the 35 mm DIN rail, verifying that the metal grounding feet contact the rail securely.
- Reconnect the multi-pin interface cable from the MicroNet rack and hand-tighten the retention screws.
- Insert field wiring into matching screw terminals and torque each terminal screw to 0.5 Nm (4.4 in-lbs).
Stage 4: Power-On & Testing
- Re-apply 24 V DC field loop power and measure the terminal voltage to confirm it falls between 21.6 V and 26.4 V DC.
- Actuate field contacts (or bridge test points) and verify that the corresponding discrete input status LEDs illuminate correctly on the MicroNet rack module.
- Check the MicroNet CPU diagnostic log to ensure zero line-fault or signal loss errors are generated.
6. Firmware/Software Versions & Upgrade Notes
- Hardware Compatibility: Fully compatible with all standard Woodward MicroNet Simplex and TMR Discrete Input modules (e.g., 5466-series cards).
- Software Dependency: Transparent hardware layer; requires no direct firmware flashes or software driver updates.
- Compatibility Caveats: Ensure field wetting voltage matches the specific input card rating configured in the Woodward Coder/GAP software environment.
- Risk Warning: Never connect high-voltage AC inputs (e.g., 120 V AC) directly to a 24 V DC rated FTB. Overvoltage will permanently damage the onboard trace networks and connected MicroNet I/O cards.
7. Frequently Asked Questions (FAQ)
Is this 5437-687 unit brand new, or was it reclaimed from a retired control cabinet?
This module is 100% New Surplus inventory. It has never been installed in a live plant, exposed to field power, or subjected to industrial environmental stress. We maintain a zero-tolerance policy against selling used or refurbished components.
Why pay more for New Surplus instead of buying a cheaper refurbished terminal block?
Refurbished field termination boards often suffer from stripped screw threads, degraded isolation barriers, and microscopic PCB trace cracks caused by past vibration and thermal cycling. A single faulty terminal on a refurbished board can cause an intermittent signal drop, triggering an emergency turbine shutdown. New Surplus provides 100% hardware integrity and peace of mind.
Does the 5437-687 require any programming or software configuration prior to installation?
No. The 5437-687 is a passive-interface Field Termination Board. It routes signals physically between field wiring and the MicroNet I/O card cable; all logic configuration is handled inside the MicroNet CPU via Woodward GAP software.
Can I replace this terminal board while the turbine is online?
Replacing the FTB while the system is energized is not recommended. Disconnecting field wiring or interface cables while live can drop active interlocks and trigger a immediate safety trip. Always isolate field power and follow LOTO procedures before servicing.
What type of warranty covers this unit?
We back this New Surplus 5437-687 module with a full 1-year replacement warranty. If any functional hardware defect occurs within 12 months under standard operating conditions, we replace it immediately from our warehouse stock.
