Key Technical Specifications
| Parameter | Value |
| Manufacturer | Woodward |
| Part Number | 5464-654 |
| Module Type | High-Density Discrete Output Card |
| System Architecture | MicroNet Digital Control System |
| Number of Channels | 64 Output Channels |
| Internal Update Time | 5 ms |
| Input Logic Voltage | 18–32 VDC (24 VDC Nominal) |
| Isolation | Non-isolated relay driver signals (requires external Relay Module) |
| Fail-Safe Mode | Outputs turn off automatically upon CPU communication loss |
| Interface Options | Supports two Field Terminal Module (FTM) configurations |
| Operating Temperature | −40 to +70°C |
| Certifications | CE, UL, ABS, DNV, LRS |
Product Introduction & Supply Chain Strategy

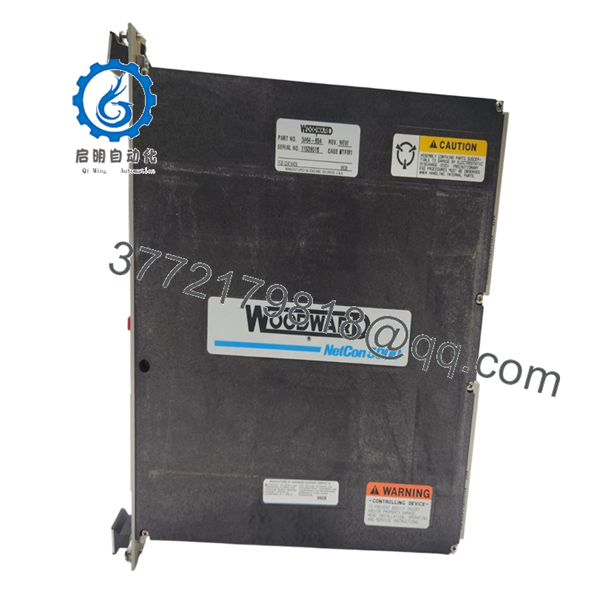

The Woodward 5464-654 is a 64-channel discrete output module engineered for the MicroNet digital control platform, commonly applied in critical prime mover, steam turbine, and gas turbine management systems. By transferring logic commands from the main CPU to external relay modules via low-density cables, this hardware ensures deterministic actuation times under extreme operational environments. The card relies on standard factory hardware profiles, which eliminates the need for manual potentiometer calibration and enables direct drop-in replacement during critical maintenance windows.
From a lifecycle engineering perspective, procuring this component as a verified New Surplus unit addresses major Total Cost of Ownership (TCO) vulnerabilities. Because this series has reached legacy status, lead time variability from standard distribution can stall production lines for weeks during a critical stock-out event. Relying on unverified, second-hand components risks internal relay or capacitor degradation that compromises turbine safety loops. Maintaining 1–2 factory-sealed surplus units as on-site buffer stock eliminates the immediate risk of emergency plant shutdowns while providing a predictable 10–15 year operating lifespan.
- 5464-654
- 5464-654
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
Execute strict lock-out/tag-out (LOTO) protocols on the turbine control system and secondary 24 VDC power lines supplying the field relays. Secure an ESD-protected workspace and put on a grounded wrist strap connected to the chassis frame. Before extracting the existing card, document all localized configuration parameters, label connecting cables, and record the hardware revision number.
Stage 2: Removal
Loosen the two captive fastening screws located at the absolute top and bottom of the front faceplate. Grasp the integrated injection/ejection handles on the module face. Toggle both handles simultaneously outward to break the tension on the backplane connectors. Slide the module straight out along the chassis card guides, ensuring the circuit board avoids friction with adjacent active modules.
Stage 3: Installation (Clone & Seat)
Verify the new surplus module matches the exact part number and physical layout of the removed component. Inspect the backplane pins for misalignment. Slide the module smoothly down the card guides until the rear pins meet the motherboard receptables. Toggle the injection handles inward to apply uniform pressure, locking the board completely into the chassis socket. Fasten the top and bottom retention screws to secure the faceplate.
Stage 4: Power-On & Testing
Reconnect the low-density field interface cables running to the Woodward Relay Modules. Energize the main chassis power supply and verify the 24 VDC logic rails operate within the specified 18–32 VDC envelope. Monitor the primary faceplate LED indicators: the RUN LED must illuminate steady green, and the fault diagnostic indicator must remain completely dark. Initiate a soft loop check to confirm the 5 ms communication handshake between the CPU and the 64 discrete outputs.
Firmware/Software Versions & Upgrade Notes
The Woodward 5464-654 functions primarily as a hardware driver translation layer, meaning it adapts dynamically to the baseline firmware compiled within the MicroNet CPU application. When preparing an emergency swap, engineers must check the module revision letter (e.g., Rev D). Minor revision leaps do not disrupt system handshakes, but changing physical hardware generations can cause unexpected protocol timeouts or intermittent field mapping faults if the baseline GAP (Graphical Application Program) application utilizes legacy driver blocks.
Critical Safety Note: Do not modify, recompile, or upgrade the main application software or CPU operating system during a physical hardware swap. Introducing code changes simultaneously complicates troubleshooting and makes it impossible to isolate hardware execution anomalies from programmatic logic errors.
Frequently Asked Questions (FAQ)
Why is this module priced higher than typical refurbished units but below current OEM lists?
Our pricing structure matches the scarcity and verified reliability of genuine New Surplus inventory. Refurbished units carry high internal component aging profiles that introduce systemic risk to critical turbomachinery controls. This unit provides original OEM integrity, zero hours of backplane wear, and an extended operational life cycle without forcing you to pay premium manufacturer list prices.
Does the 5464-654 require specialized calibration prior to installation?
No calibration is necessary. The hardware completely lacks manual adjustment potentiometers. The module derives all output assignments and execution commands digitally from the MicroNet CPU, allowing you to execute direct hot-swaps or cold replacements without adjusting field tuning parameters.
Is this unit a direct replacement for the 32-channel version?
The 5464-654 provides a 64-channel matrix designed for high-density architectures, offering double the capacity of the 32-channel 5464-653 variant. While it shares structural MicroNet chassis features, you cannot drop it directly into a slot mapped for a 32-channel layout without altering software driver frameworks and field terminal interface mapping.
What happens to the field outputs if communication with the CPU is lost?
The module features a hardware-level fail-safe mechanism. If the communication heartbeat with the primary CPU drops for any reason, all 64 discrete output driver channels turn off instantly, forcing connected field relays to drop out and enter their designated safe states.
Does this module provide internal power to drive the external field relays?
No. The module generates non-isolated digital driver signals to actuate the relays, but it does not source the external current needed to trigger the coils. You must feed the associated Woodward Relay Modules with an independent, buffered 24 VDC system power source.
What warranty terms cover this New Surplus unit?
To provide total peace of mind for critical infrastructure applications, we support this New Surplus component with a comprehensive 1-year warranty that completely guarantees functional performance and component integrity under standard operational guidelines.
