Woodward 8511-144 SG Mechanical-Hydraulic Governor

Description

Key Technical Specifications

The exact 8511-144 configuration is documented by Woodward’s SG-to-PSG retrofit guide. Woodward lists a single plain LH speed-adjusting shaft, double-plain terminal shaft, solid two-weight ballhead, one-round porting, standard splined drive shaft, horizontal servo-down mounting, reversible rotation, a 4,200 rpm high-speed stop, and an adjustable 2,600 rpm low-speed stop.

A PETRONAS equipment/material database independently identifies 8511-144 as a Woodward Governor SG part.

Product Introduction

The Woodward 8511-144 is an SG Simple Governor, a mechanical-hydraulic speed governor used to regulate engine speed by responding to changes in rotational speed and adjusting the engine’s fuel-control mechanism. It belongs to Woodward’s long-running SG governor family used on engine and generator applications.

For the 8511-144 configuration, Woodward specifies horizontal servo-down mounting, reversible rotation, a standard splined drive shaft, and a two-weight ballhead. The governor has a 4,200 rpm high-speed stop and a low-speed stop adjustable to 2,600 rpm. Woodward’s current retrofit documentation maps 8511-144 to 8563-391, providing an established migration path to the PSG platform.

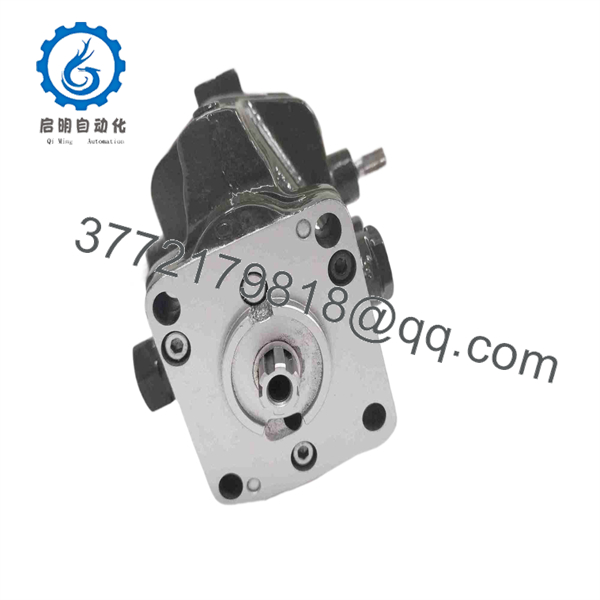

8511-144

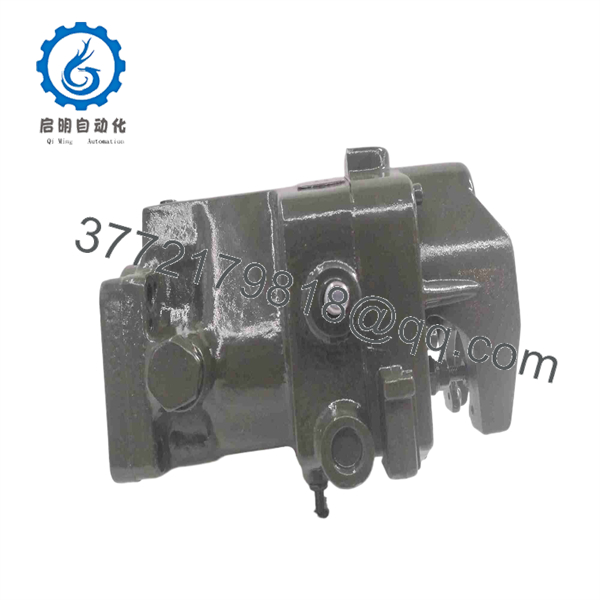

8511-144

Installation & Configuration Guide

Stage 1 — Pre-Installation Preparation

Estimated time: 20–30 minutes

1. Notify operations and place the engine or generator in a controlled shutdown state.
2. Apply LOTO to the prime mover and associated fuel/control systems.
3. Prevent unintended engine cranking or starting during governor replacement.
4. Allow the mechanical system to reach a safe temperature before working around the governor.
5. Prepare a PH1 screwdriver where applicable, appropriate mechanical tools, calibrated tachometer, wire labels, smartphone/camera, and the applicable Woodward governor documentation.
6. Photograph the existing governor installation, linkage geometry, shaft orientation, hydraulic/oil connections, and adjustment positions.
7. Record the existing high-speed and low-speed settings before removal.
8. Verify that the replacement is specifically 8511-144 and compare its mechanical configuration with the existing governor.

⚠️ Do not select a replacement solely by the SG family number. Woodward produced multiple SG configurations with different mounting orientations, shafts, porting, speed stops, and rotation arrangements.

Stage 2 — Removing the Old Governor

Estimated time: 30–45 minutes

1. Secure the engine against accidental start.
2. Mark the governor linkage and terminal positions before disconnecting them.
3. Record linkage length and mechanical travel.
4. Disconnect the control linkage without forcing the actuator or terminal shaft.
5. Isolate and disconnect applicable hydraulic/oil connections according to the engine manufacturer’s procedure.
6. Protect open ports from contamination.
7. Remove the governor mounting hardware.
8. Withdraw the governor carefully while preventing damage to the splined drive interface.
9. Inspect the drive coupling, mounting flange, linkage, and surrounding components for wear.
10. Retain the removed 8511-144 until commissioning is complete.

Stage 3 — Installing the New Governor

Estimated time: 45–60 minutes

1. Verify the replacement part number and mechanical configuration against 8511-144.
2. Confirm the governor orientation is horizontal with servo down.
3. Inspect the standard splined drive interface before installation.
4. Install the governor without forcing the shaft or coupling.
5. Secure the mounting hardware using the engine/OEM-specified torque.
6. Reconnect hydraulic/oil connections with appropriate seals and cleanliness controls.
7. Reinstall the control linkage using the recorded geometry.
8. Confirm the linkage has its specified travel without binding.
9. Check that the direction of governor action corresponds to the original installation.
10. Verify the high-speed and low-speed stop arrangements before startup.

⚠️ The 8511-144 configuration is reversible in rotation, but that does not mean the installed linkage can be reversed without checking the complete engine arrangement. Verify actual shaft rotation and control direction against the engine manufacturer’s documentation.

Stage 4 — Power-On & Testing

Estimated time: 30–60 minutes

1. Inspect the installation for loose hardware, leaks, and mechanical interference.
2. Rotate the engine manually where the OEM procedure permits and verify free governor/linkage movement.
3. Confirm the fuel-control mechanism reaches the required minimum and maximum positions.
4. Start the engine under controlled conditions.
5. Monitor actual engine speed using an independent calibrated tachometer.
6. Verify stable idle or minimum operating speed.
7. Gradually increase speed while checking governor response.
8. Verify the configured high-speed stop without intentionally overspeeding the engine.
9. Confirm the operating speed range and load response.
10. Record final governor adjustments and commissioning measurements.

Troubleshooting note: Hunting, sluggish response, excessive speed deviation, or failure to reach the commanded speed should not automatically be attributed to the governor. Check linkage friction, drive rotation, hydraulic/oil condition, engine fuel-system response, governor adjustment, and the mechanical load before replacing additional components.

Retrofit warning: Woodward’s documented replacement path for 8511-144 is 8563-391 PSG. A PSG retrofit should be treated as an engineered replacement rather than assumed to be a direct bolt-for-bolt exchange. Confirm mounting, drive, linkage, hydraulic connections, and speed-setting requirements before conversion.

Frequently Asked Questions (FAQ)

1. What is Woodward 8511-144?

Woodward 8511-144 is an SG Simple Governor, a mechanical-hydraulic speed governor used for engine speed regulation. PETRONAS also identifies the exact part number as a Woodward SG governor.

2. Is Woodward 8511-144 obsolete?

Yes. A Woodward obsolete-part cross-reference lists 8511-144 as obsolete, with the last-time-buy period ending April 1, 2023.

3. What replaces 8511-144?

Woodward’s Application Note 51650 maps 8511-144 to PSG retrofit part 8563-391. The same document provides the mechanical configuration used for the retrofit selection.

4. What are the main mechanical characteristics of 8511-144?

The documented configuration includes a horizontal servo-down mounting, standard splined drive shaft, solid two-weight ballhead, one-round porting, reversible rotation, single plain LH speed-adjusting shaft, and double-plain terminal shaft.

5. What are the speed-stop settings?

Woodward’s retrofit table lists a 4,200 rpm high-speed stop and a low-speed stop adjustable to 2,600 rpm for the 8511-144 configuration. These are governor configuration values, not a recommendation to operate an engine at those speeds without reference to its OEM limits.

6. Is 8511-144 an electronic speed controller?

No. It is an SG mechanical-hydraulic governor. Some secondary-market listings describe it loosely as an actuator or speed-control actuator, but Woodward’s own retrofit documentation identifies 8511-144 as an SG Governor.

7. What should be verified before purchasing a replacement?

Verify the complete 8511-144 part number, mechanical configuration, mounting orientation, shaft arrangement, rotation, porting, and governor adjustment requirements. For obsolete equipment, a nameplate photograph and the existing governor’s serial/configuration information are useful for confirming interchangeability. Woodward’s retrofit guide should be used when evaluating migration to 8563-391.
