Woodward 9907-1183 Steam Turbine Control

Description

Key Technical Specifications

Woodward’s official Manual 26347V1 identifies 9907-1183 as the LVDC 505 Digital Governor, rated 18–32 VDC, for steam turbines with single or split-range actuators. It also states that 9907-1181 through 9907-1183 replaced 9907-825 through 9907-827 respectively and should not be mixed with the earlier part numbers.

Product Introduction

The Woodward 9907-1183 is an 18–32 VDC 505 Digital Governor designed for steam-turbine applications using single or split-range actuators. The controller provides turbine governing and configurable control functions and can interface with plant control systems through its communication facilities.

The important replacement distinction is the LVDC configuration. Woodward lists 9907-1181 as the 180–264 VAC version, 9907-1182 as the AC/DC version, and 9907-1183 as the 18–32 VDC version. These part numbers should not be treated as electrically interchangeable.

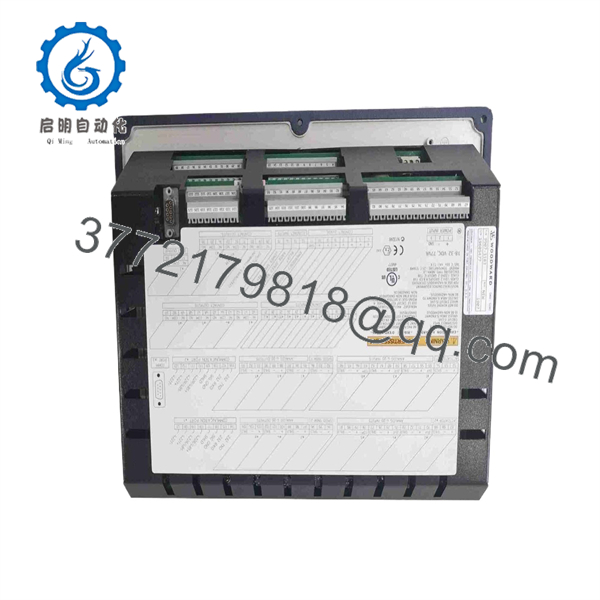

9907-1183

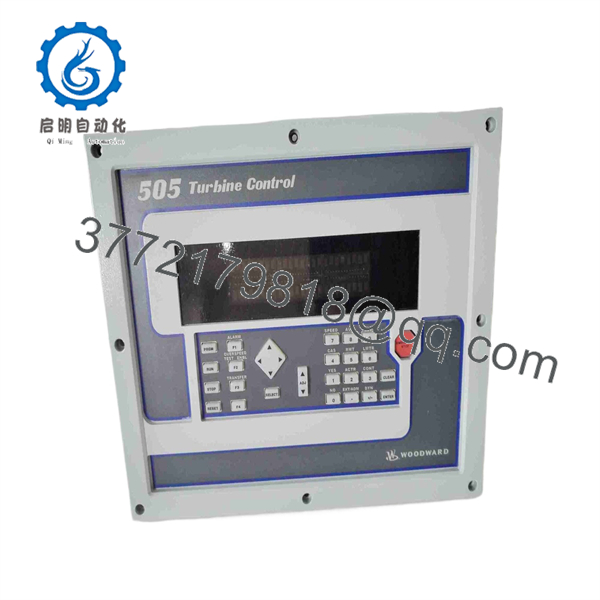

9907-1183

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — About 10 Minutes

⚠️ Safety First: Place the turbine and associated control system in the approved maintenance state. Apply LOTO and follow the plant’s turbine shutdown procedure before removing the governor.

Tools Required:

• ESD wrist strap
• Digital multimeter
• Insulated screwdriver
• Wire labels
• Smartphone/camera
• Current Woodward 505 documentation

Data Backup:

1. Record the complete 9907-1183 part number and revision.
2. Photograph the front panel and terminal wiring.
3. Record the turbine’s actuator configuration.
4. Document all relay, analog, and communication connections.
5. Save the existing 505 configuration/program where supported.
6. Record all important speed, valve, load, and pressure-control settings.

Stage 2: Removing the Existing Governor — About 10 Minutes

1. Confirm the turbine is shut down and mechanically safe.
2. Isolate the 18–32 VDC control supply.
3. Verify the supply is de-energized with a multimeter.
4. Label every field conductor.
5. Photograph the terminal arrangement.
6. Disconnect actuator wiring.
7. Disconnect relay and analog I/O.
8. Disconnect communication wiring.
9. Remove the controller from its mounting arrangement.

⚠️ Keep the old controller until commissioning is complete. Its configuration and terminal arrangement are valuable references if an undocumented field modification is discovered.

Stage 3: Installing the New 9907-1183 — About 10–15 Minutes

1. Verify the replacement is exactly 9907-1183.
2. Confirm the nameplate and hardware revision.
3. Verify the control supply is 18–32 VDC.
4. Install the governor in the approved panel location.
5. Reconnect the actuator circuits according to the current wiring diagram.
6. Reconnect relay and analog circuits.
7. Reconnect Modbus/communication wiring where used.
8. Verify all terminals against the photographs and drawings.
9. Check that the selected actuator configuration matches the turbine application.
10. Secure all terminal hardware.

Configuration Clone — Critical:

• Turbine rated speed
• Speed-control parameters
• Actuator configuration
• Valve limits
• Acceleration/deceleration settings
• Load-control settings
• Extraction/admission parameters, if applicable
• Relay assignments
• Analog I/O scaling
• Communication parameters

⚠️ Do not assume the configuration from a 9907-827 can simply be transferred without review. Woodward specifically states that the newer 9907-1181/1182/1183 controllers incorporate product changes and should not be used with the older corresponding part numbers.

Stage 4: Power-On & Testing — About 15–30 Minutes

1. Perform a point-to-point wiring check.
2. Verify the DC supply voltage.
3. Energize the 505 controller without starting the turbine.
4. Check the HMI for startup diagnostics.
5. Verify the configured actuator and I/O assignments.
6. Confirm communication status.
7. Start the turbine under the approved commissioning procedure.
8. Verify controlled acceleration.
9. Check speed stability at operating speed.
10. Verify valve response.
11. Test applicable load or pressure-control functions.
12. Verify turbine protection and trip functions before returning the unit to normal operation.

⚠️ Do not consider a successful boot sufficient for commissioning. A correct replacement must also demonstrate correct actuator direction, valve response, speed regulation, and application-specific control behavior.

Frequently Asked Questions (FAQ)

Q1: What is the Woodward 9907-1183?
The 9907-1183 is a Woodward 505 Digital Governor designed for steam turbines with single or split-range actuators. Woodward’s official manual identifies it as the 18–32 VDC LVDC version.

Q2: What is the difference between 9907-1181, 9907-1182, and 9907-1183?
The principal difference documented by Woodward is the power configuration:

• 9907-1181: 180–264 VAC
• 9907-1182: 88–132 VAC or 90–150 VDC
• 9907-1183: 18–32 VDC

They should not be treated as interchangeable variants.

Q3: What older part number does 9907-1183 replace?
Woodward identifies 9907-827 as the earlier part number replaced by 9907-1183. The manual states that the newer 9907-1181 through 1183 units incorporate additional product features and should not be used interchangeably with the earlier hardware.

Q4: What turbine applications use the 505 Digital Governor?
The 505 is designed for steam turbines using single or split-range actuators. Third-party application documentation also lists turbines driving generators, compressors, pumps, and industrial fans.

Q5: Does the 9907-1183 use 24 VDC?
Yes. Its specified operating supply is 18–32 VDC, making it the low-voltage DC version of this 505 hardware family.

Q6: Can I replace 9907-1183 with 9907-1182?
Not as a direct electrical substitution. The two units have different power-input requirements. Confirm the available control-panel supply and the exact Woodward hardware configuration before selecting a replacement.

Q7: Is 9907-1183 still available as new equipment?
Current aftermarket listings show new, surplus, used, and refurbished units, so condition varies by supplier. One current listing specifically identifies sealed-surplus and never-used-surplus options, while other suppliers advertise new stock. Verify the actual physical condition, packaging, revision, and warranty terms before purchase.
