3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 16 (non-isolated, common ground) |
| Input Signal | 4 to 20 mA DC |
| HART Communication | Yes (digital communication support) |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Input Resistance (Power ON) | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Allowable Input Current | Max. 27 mA |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA); 26.4 V or less (at 0 mA) |
| Temperature Drift | ±16 µA / 10 °C |
| Current Consumption | Approx. 310 mA (5 V DC), 450 mA (24 V DC) |
| Weight | Approx. 0.2 kg |
| Redundancy | Supports dual-redundant configuration |
4. Product Introduction
The Yokogawa AAI141-H50 S2 is a 16-channel non-isolated analog input module designed for CENTUM VP and CS 3000 systems. It accepts 4–20 mA signals from field transmitters and includes integrated HART communication, allowing the control system to read digital variables and diagnostics from intelligent devices without interrupting the analog measurement.
The non-isolated design provides high channel density in a single slot. The S2 revision reflects updated hardware for continued reliability in existing installations. This module is commonly used in process plants requiring dense current-loop input with HART capability.

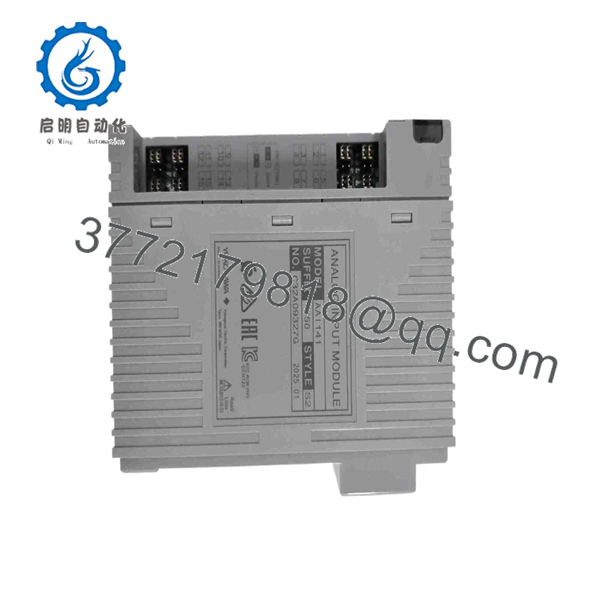

AAI141-H50 S2
AAI141-H50 S2
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All channels read open / zero | Module not seated or power issue | High | Reseat module; check status LEDs and rack power | Verify seating and power before replacing |
| Individual channel stuck or noisy | Field wiring, transmitter, or input fault | Medium | Measure loop current at terminals; swap with known-good channel | Check field device and wiring first |
| HART communication fails | Wiring, device address, or module HART fault | High | Verify HART modem connection and device polarity | Confirm field device HART support; test module |
| Module not recognized by FCS | Wrong slot, revision mismatch, or hardware fault | High | Check I/O configuration and module status in engineering tool | Match revision; replace if still unrecognized |
| Accuracy drift or offset | Temperature effect or calibration issue | Medium | Compare measured vs. known reference current | Verify ambient temperature; replace if out of spec |
| Redundant pair mismatch | One module failed or configuration error | High | Compare both modules in redundant pair | Replace the faulty module in the pair |
If the issue persists after these checks, collect module status details, loop measurements, and photos of the installation before contacting support.
6. Frequently Asked Questions (FAQ)
Q: Is the AAI141-H50 S2 still available as new from Yokogawa?
A: Availability is primarily through new surplus and authorized channels. Confirm current stock and exact revision (S2) before ordering.
Q: What does the “H50 S2” suffix mean?
A: “H” indicates HART digital communication support. “50” denotes the basic type with no explosion protection. “S2” is the hardware/firmware revision level.
Q: Is this module isolated?
A: No. The AAI141-H50 is non-isolated (common ground across channels). For channel-to-system isolation, consider the AAI143 series instead.
Q: Can it be used in dual-redundant configuration?
A: Yes. The module supports dual-redundant installation when the system and I/O configuration are set up accordingly.
Q: Do I need special terminal blocks or cables?
A: Connection options include pressure-clamp terminals, KS cable, or MIL connectors depending on the ordered accessory code (e.g., /K4A00). Verify the terminal style matches your existing installation.
Q: What is the difference between New Surplus and Refurbished units?
A: New Surplus units are unused or factory-overstock modules. Refurbished units have been previously installed, cleaned, functionally tested (including HART and analog accuracy checks), and verified. Both carry functional testing documentation.
Q: How are these modules tested before shipment?
A: Visual inspection, power-on self-test, analog accuracy verification across channels, HART communication check where applicable, and basic functional testing in a compatible CENTUM environment. Test reports and photos are available on request.
