3. Key Technical Specifications
- Model Code: CP451-51
- Type: Processor Module for AFV30□ / AFV40□
- Suffix Breakdown: -5 = Standard type, no explosion protection; 1 = ISA Standard G3 option
- Compatible Systems: Yokogawa CENTUM VP and CENTUM CS 3000 Field Control Stations
- Replacement For: CP451-11
- Communication: Redundant Vnet/IP (system network); ESB bus (I/O subsystem)
- Redundancy Support: Dual-module configuration supported
- Power: Supplied via FCU backplane (typical system 24 V DC environment)
- Operating Temperature: 0 °C to +50 °C / +55 °C (typical for AFV30/AFV40 class)
- Weight: Approx. 1 kg (shipping weight approx. 2 kg)
- Mounting: Slot-mounted in AFV30□ / AFV40□ Field Control Unit chassis
- Origin: Japan
Note: Exact current draw, memory size, and scan performance vary by firmware revision and FCU configuration. Always verify against the latest Yokogawa General Specification sheet for the specific style code.
4. Product Introduction
The Yokogawa CP451-51 is the processor module used in AFV30□ and AFV40□ Field Control Units within CENTUM VP and CENTUM CS 3000 distributed control systems. It executes regulatory control, sequential logic, and manages communication over Vnet/IP and the ESB bus to connected I/O node units.
Engineers select the CP451-51 when they need a direct, form-fit replacement for older CP451-11 units or when specifying a standard (non-explosion-proof) processor with the ISA G3 corrosion-resistance option. Dual-redundant pairing is supported for high-availability applications in continuous process plants.

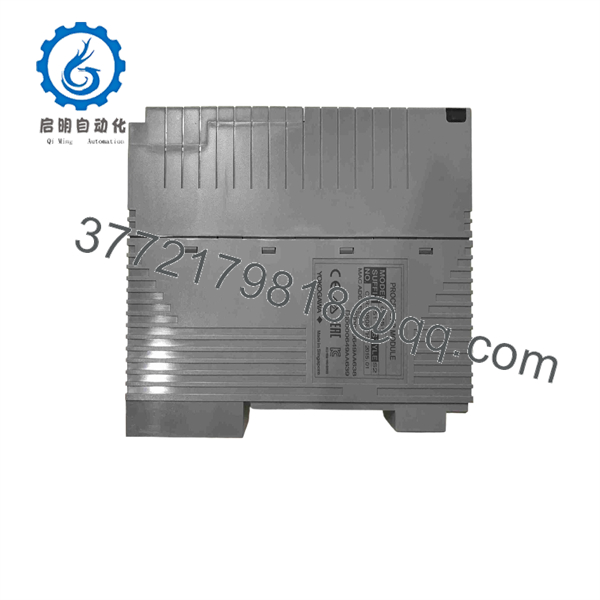

CP451-51

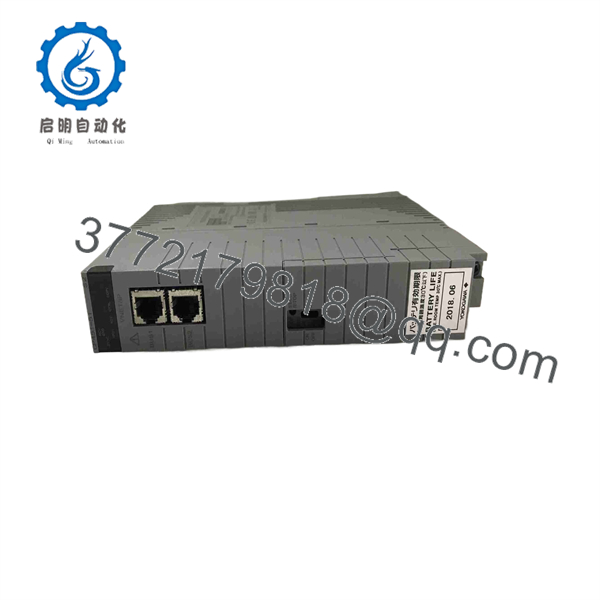

CP451-51
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs or status indication on power-up | FCU power supply or backplane issue | ❌ Low | Measure 24 V DC at power module output and backplane pins | Check PW481/PW482/PW484 power modules and fuses first |
| Station fails to join Vnet/IP network | Station address DIP switch mismatch or cable fault | ✅ High | Verify domain and station number switches match System View configuration; check Vnet/IP link LEDs | Correct DIP switch settings and reseat cables |
| Control right does not transfer in dual-redundant pair | Firmware mismatch or pairing failure | ✅ High | Compare firmware revisions of both CP451 modules; check redundancy status in System View | Match firmware versions; replace if one module shows persistent fault |
| Intermittent ESB bus communication errors | Loose connector or EC401 coupler problem | ❌ Medium | Inspect ESB coupler modules (EC401) and node unit cabling | Check/replace ESB bus coupler before swapping processor |
| CPU fault or diagnostic alarm after online swap | Improper hot-swap sequence or ESD damage | ✅ High | Review event log and diagnostic buffer; inspect for physical damage | Follow Yokogawa online replacement procedure strictly; use ESD protection |
If the issue persists after these checks, capture the diagnostic buffer, LED status photos, and System View screenshots, then contact technical support.
6. Frequently Asked Questions (FAQ)
Q: Is the -51 a direct drop-in replacement for the -11?
A: Yes. The -51 is listed by Yokogawa and major suppliers as the replacement for the -11. Confirm firmware compatibility with your CENTUM VP or CS 3000 revision and match the station address DIP switch settings exactly.
Q: Can I hot-swap this module in a running dual-redundant FCS?
A: Online replacement is supported in dual-redundant configurations when both modules have compatible firmware and the correct procedure is followed. Always switch control right to the healthy module first and observe the status LEDs. Never pull a module under power without following the official Yokogawa maintenance sequence.
Q: What does the “-51” suffix mean?
A: -5 indicates standard type with no explosion protection. The final “1” indicates the ISA Standard G3 option (enhanced corrosion resistance for harsh chemical or coastal environments). Verify this matches your plant’s environmental classification.
Q: Why is this priced lower than a factory-new unit from Yokogawa?
A: Units offered as New Original / New Surplus are genuine Yokogawa modules that were excess stock, project overruns, or never installed. They are not refurbished. Full functional testing and visual inspection are performed before shipment. Warranty is typically 12 months.
Q: Do I need to reconfigure the station address after installation?
A: Yes. The station (and domain) address is set by hardware DIP switches on the module. Photograph the original module’s switch positions before removal and duplicate them exactly on the new unit. Incorrect addressing is one of the most common causes of network join failures.
Q: Is firmware included or does it need downloading?
A: The module ships with the firmware that was loaded at the factory or last known good revision. In most cases it will operate with your existing system software, but always check the Yokogawa compatibility matrix for your exact CENTUM VP / CS 3000 release. Firmware updates, if required, are performed through official engineering tools.
Q: What testing is performed before shipment?
A: Inbound visual and anti-counterfeit checks, power-on self-test on a compatible AFV-series rack, Vnet/IP and ESB communi
