Key Technical Specifications
- Model: Zygo 8070-0279-01
- Product Type: Stabilized laser head / optical source assembly
- Primary Application: Zygo ZMI displacement measuring interferometer systems
- Laser Technology: Stabilized dual-frequency helium-neon laser
- Nominal Output Wavelength: 632.8 nm
- Measurement Principle: Heterodyne laser interferometry
- Intended System Role: Optical reference source for precision displacement measurement
- Typical System Compatibility: Zygo ZMI systems, including legacy Series 7700 and 7714 system architectures
- Power Arrangement: External matched laser power supply required
- Referenced Supply Example: Voltex E15-Z laser power supply configuration
- Referenced DC Integration: Nominal 36 VDC interface or matched laser supply arrangement
- Thermal Control: Internal laser-cavity stabilization loop
- Cooling Method: Convection and conduction through precision mounting chassis
- Recommended Environmental Range: 15 to 30 °C controlled environment
- Installation Requirement: Clean, stable, low-vibration optical mounting surface
- Optical Handling Requirement: Dust-protected output aperture; no unapproved cleaning or internal adjustment
- Field Adjustability: No user-serviceable internal optical alignment
- Product Status: Legacy / limited aftermarket availability
The available product information identifies the 8070-0279-01 as a Zygo stabilized laser-head assembly for ZMI heterodyne interferometer applications. Verify the exact host-system configuration, cable/umbilical part numbers, installed power supply, mounting arrangement, optical interface, and OEM documentation before treating another Zygo laser head as a direct replacement.
Product Introduction
The Zygo 8070-0279-01 is a stabilized laser-head assembly used in Zygo ZMI displacement measuring interferometer systems. It supplies a controlled dual-frequency helium-neon optical source for precision position measurement in semiconductor equipment, precision machine tools, metrology stations, motion stages, and high-accuracy inspection systems.
This is not a PLC module or ordinary industrial controller. The 8070-0279-01 forms part of an optical measurement chain where laser stability, thermal condition, mounting alignment, matched power equipment, and clean optica

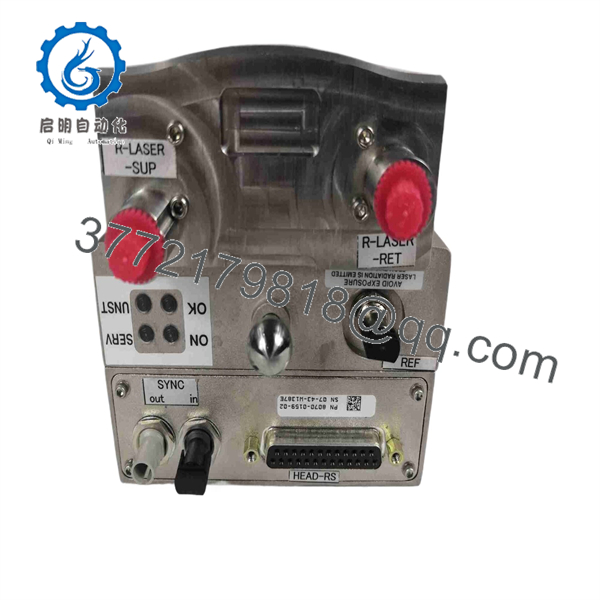

8070-0279-01

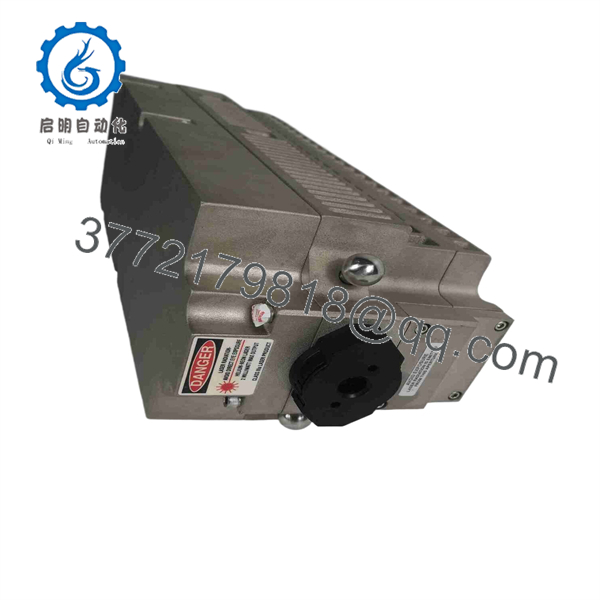

8070-0279-01
l interfaces directly affect measurement validity. Its nominal 632.8 nm HeNe source supports heterodyne interferometry used for high-resolution displacement feedback.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No laser output detected | External laser power supply failure, disconnected umbilical, interlock open, failed laser head | ⚠️ Medium | Verify the matched laser power supply output and system interlock state using the OEM service procedure. Inspect the umbilical connectors for bent pins, contamination, and incomplete latching. | Check the power supply and interlock chain before replacing the laser head. Do not probe unknown high-voltage laser connections without approved equipment and training. |
| Laser source does not start after replacement | Incorrect power-supply pairing, incompatible cable set, cold-shipped laser head, internal tube fault | ✅ High | Confirm the installed external supply and umbilical match the original assembly part numbers. Allow the unit to stabilize at controlled room temperature before power-up. | Do not force repeated ignition cycles. If a known-good matched supply will not start the head, stop testing and obtain Zygo-qualified service support. |
| Measurement axis reports loss of signal | Contaminated output aperture, loose optical connection, receiver alignment error, low laser intensity | ⚠️ Medium | With power isolated where required, inspect the optical output interface using clean magnification and proper illumination. Check external beam path, receiver alignment, fiber launch hardware, and connectors. | Clean only with OEM-approved optical procedure and materials. Do not use shop rags, compressed plant air, or general-purpose solvents on optical surfaces. |
| Position readings drift after startup | Laser not thermally stabilized, ambient temperature fluctuation, mounting stress, external airflow | ✅ High | Log displacement readings during warm-up and monitor room temperature near the laser head. Check that HVAC airflow is not blowing directly on the assembly. | Allow a controlled warm-up period before accepting measurement results. Investigate environmental and mounting causes before concluding the laser head has failed. |
| Position noise or intermittent count loss | Optical back-reflection, loose mounting, vibration, electromagnetic noise at detector electronics | ⚠️ Medium | Check vibration at the laser-head mounting point and inspect optical path alignment. Review downstream receiver and axis-board diagnostics for signal-amplitude or phase errors. | Treat the entire interferometer path as the fault domain. Replacing the laser head alone may not correct receiver, cable, or axis-electronics problems. |
| System faults appear after a cabinet power event | Power-supply damage, grounding problem, interlock state change, controller/receiver fault | ❌ Low | Check other ZMI electronics, receiver boards, controller status, and power-supply diagnostics. Confirm protective earth continuity and system grounding per the OEM manual. | Start upstream. A site power event that affects multiple components is rarely isolated to one laser head. |
| Laser output is weak or unstable | Aging laser tube, supply instability, optical contamination, cavity-lock issue | ✅ High | Compare measured optical output or detector signal level against the site’s validated baseline using qualified optical test equipment. Verify supply stability before condemning the head. | If output remains below the accepted baseline with a confirmed power supply and clean external optics, replacement or specialist evaluation is appropriate. |
| Head becomes unusually warm | Incorrect supply, poor mounting conduction, abnormal internal condition, blocked airflow | ⚠️ Medium | Check ambient temperature and mounting contact. Use a non-contact thermometer on the external chassis only; do not open the enclosure. | Shut down if the housing temperature rises outside the OEM-approved condition. Investigate supply matching and mounting before reuse. |
| No communication or status information at the host system | Receiver/controller fault, cabling issue, host configuration error | ❌ Low | Review Zygo controller and receiver diagnostic indicators, then reseat approved low-voltage system cables with power isolated. | The laser head itself does not normally resolve host-side configuration or receiver communication faults. Check the rest of the ZMI chain first. |
| Replacement passes basic power-up but accuracy is poor | Optical alignment error, wrong compatible configuration, unstable environment, damaged mounting interface | ✅ High | Run the OEM acceptance or comparison measurement against a traceable reference artifact. Record warm-up duration, ambient conditions, and axis repeatability. | Do not release the machine to production based only on visible laser output. Validate measurement repeatability and accuracy through the approved metrology procedure. |
❗ High-voltage and optical safety warning: Use only trained personnel and the OEM-approved service method. Laser-head power systems can involve hazardous voltages, and direct exposure to laser radiation or reflected beams can injure eyes. Do not bypass interlocks, defeat protective covers, or look into an energized optical aperture.
❗ Shipment-temperature warning: A laser head arriving from cold or hot transit should stabilize inside a controlled environment before startup. Condensation, rapid temperature change, and mechanical shock can affect optical performance. Do not unpack it onto a running machine and immediately apply power.
❗ Alignment warning: Take photos of the original mounting arrangement, cable routing, optical path, connector positions, grounding points, and any adjustment marks before removal. The most expensive mistake is calling a replacement “bad” after installing it on a disturbed or contaminated beam path.
❗ No internal repair warning: The 8070-0279-01 is an integrated, aligned optical assembly. Do not open the housing or attempt to adjust internal optical components in the field. That can permanently damage alignment and invalidate the machine’s measurement system.
Keep these checks in mind and you will save yourself 90% of typical rework time. If you are stuck, contact qualified Zygo or metrology support with photos of the unit label, external power supply label, cable set, mounting interface, controller diagnostics, receiver-signal logs, and measured environmental conditions.
Frequently Asked Questions (FAQ)
Q: What is the Zygo 8070-0279-01?
A: The 8070-0279-01 is a Zygo stabilized laser-head assembly used as an optical source in a ZMI displacement measuring interferometer system. It provides the dual-frequency helium-neon light needed for heterodyne measurement of precision motion and displacement. It is part of a metrology system, not a conventional PLC, servo drive, or general-purpose industrial controller.
Q: Is the 8070-0279-01 a direct replacement for any Zygo laser head?
A: No. Match the complete Zygo part number and verify the installed ZMI architecture, power supply, cable or umbilical assembly, mounting interface, optical output arrangement, and system documentation. A similar wavelength or similar physical appearance does not establish electrical, mechanical, or optical compatibility.
Q: Does this laser head need a warm-up period?
A: Yes. Stabilized helium-neon laser assemblies generally require thermal stabilization before a precision system reaches its normal measurement behavior. Available aftermarket information references a typical 20–45 minute period, but the correct acceptance time must come from the applicable Zygo system procedure and your measurement tolerance. Do not declare the unit defective based on drift recorded immediately after power-up.
Q: Can I use a different power supply with the 8070-0279-01?
A: Do not assume that you can. The laser head requires a correctly matched external power supply and cable set. Available listing information references Voltex E15-Z-type configurations and nominal 36 VDC integration, but you must verify the exact approved supply and interconnect part numbers from your installed system documentation. A mismatched supply can damage the assembly or prevent stable operation.
Q: Can I repair or replace the internal laser tube myself?
A: No. To be honest, this is not like changing a relay or swapping a drive board. The laser head is a factory-aligned optical assembly with tightly controlled cavity and stabilization characteristics. Opening it or attempting internal adjustment without optical test equipment and manufacturer-level procedures can permanently ruin the unit.
Q: How do I know whether the laser head is actually bad?
A: First confirm the matched supply, safety interlocks, cable condition, mounting, environmental temperature, optical cleanliness, receiver alignment, and downstream electronics. Then compare laser output or detector signal against a documented baseline using qualified metrology equipment. A no-light condition with a verified matched supply is serious, but a noisy or drifting measurement can originate anywhere in the optical path.
Q: Is the 8070-0279-01 obsolete, and should I keep a spare?
A: It is associated with legacy ZMI system architectures, so aftermarket availability can be limited and condition can vary. A critical semiconductor, machine-tool, or metrology asset may justify holding a verified spare, but only if you can also support the required matched supply, cable set, mounting hardware, and acceptance test. A spare laser head alone does not guarantee recovery.
Q: Why is a New Surplus 8070-0279-01 less expensive than current factory equipment?
A: New Surplus typically means unused original inventory from an OEM stockroom, project cancellation, stored service inventory, or secondary-market liquidation. The price may be lower because it does not carry current factory-channel support, calibration services, or lifecycle coverage. Request photos of the exact serial label, optical aperture condition, matching power-supply requirements, live optical-output test evidence, stabilization test results, packaging method, and written warranty before purchase.
