ABB 07AC91F GJR5252300R3101 Analog I/O Module 24V DC

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB 07AC91F (GJR5252300R3101) is a high-density analog I/O expansion module designed for the ABB Advant Controller 31 (AC31) series. Communicating over the high-speed CS31 system bus, it provides 8 configurable analog inputs (voltage, current, or RTD temperature sensors) and 6 analog outputs to regulate closed-loop process parameters in manufacturing and power plants.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Installing refurbished or second-hand 07AC91F boards in active production racks carries extreme risks: thermal drift on aging analog-to-digital converters (ADCs), corrupted calibration tables, and intermittent CS31 bus drops. A single faulty analog channel can misread process pressures or temperatures, causing emergency shutdown trips that cost 20,000 to 50,000 per incident. Stocking a genuine New Surplus module provides a 100% reliable drop-in replacement, preserving full 12-bit measurement precision and securing legacy AC31 lines against unplanned downtime.

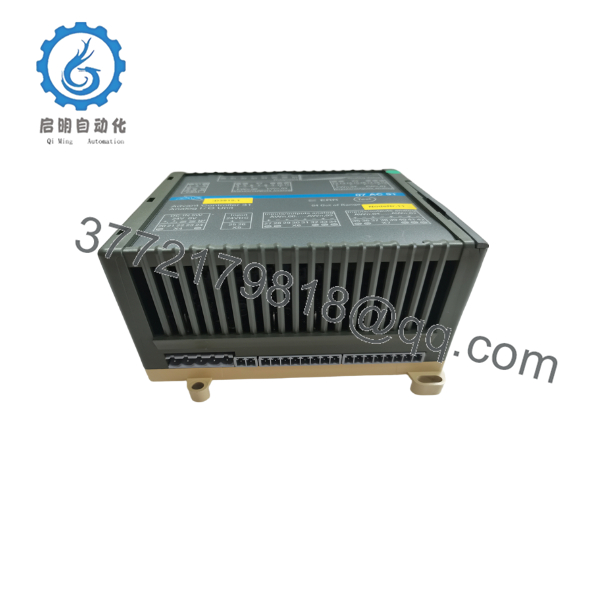

07AC91F GJR5252300R3101

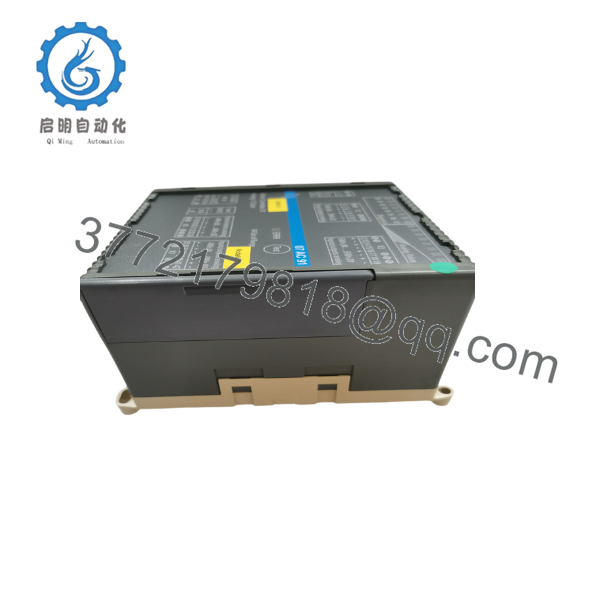

07AC91F GJR5252300R3101

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) on the cabinet main power supply and 24 V DC field bus power lines.
2. Strap on a grounded ESD wrist cuff connected to cabinet chassis ground before touching the module.
3. Record all terminal wire tags, shield ground lands, and the CS31 bus node address set on the module’s rotary/DIP switches.
4. Verify that analog input signal types (e.g., 4–20 mA vs. 0–10 V) on the old card match the jumper/software configuration required for the replacement.

Stage 2: Removal

1. Unplug the 24 V DC supply block and CS31 system bus connector.
2. Disconnect the removable analog signal terminal blocks from the module faceplate.
3. Release the DIN-rail locking tab at the bottom of the module housing and lift the unit off the rail.

Stage 3: Installation (Clone & Seat)

1. Set the CS31 node address switches on the new 07AC91F to match the exact address of the removed unit.
2. Snap the module securely onto the 35 mm DIN rail.
3. Attach the protective earth (PE) grounding wire directly to the module ground terminal to minimize high-frequency noise on analog signals.
4. Reconnect the CS31 bus plug, 24 V DC power block, and analog I/O terminal harnesses.

Stage 4: Power-On & Testing

1. Measure incoming power across 24 V DC terminals to verify operating voltage is within 19.2 to 30 V DC.
2. Apply system power and verify the front panel status LEDs: confirm the 24V power LED and CS31 bus LED light up solid green.
3. Use a process calibrator to inject 4–20 mA or 0–10 V test signals into input channels and verify readings on the AC31 central controller display or 90F/AC31 software.
4. Measure analog output channels with a digital multimeter to confirm proper loop response.

Firmware/Software Versions & Upgrade Notes

• System Compatibility: Designed for ABB AC31 series controllers (e.g., 50 Series, 90 Series, or central units like 07KT92 / 07KT94).
• CS31 Bus Addressing: Ensure the CS31 bus address set on the hardware matches the peripheral configuration in the AC31 programming software (90F / 1131 software).
• Calibration Integrity: Hardware replacement of the 07AC91F requires no software recompilation, provided the CS31 node address and channel hardware jumpers match the original setup exactly. Never switch input jumper modes (current to voltage) while the loop is powered to avoid blowing internal precision sense resistors.

Frequently Asked Questions (FAQ)

Is this ABB 07AC91F module brand new or refurbished?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. Every unit undergoes live electrical verification, analog calibration checking, and CS31 bus communication tests before dispatch.

Why is New Surplus a safer choice than a refurbished 07AC91F board?

Refurbished analog modules often suffer from component aging, dried-out filtering capacitors, and micro-cracks in trace runs caused by years of cabinet heat. These flaws lead to zero-point signal drift, erroneous sensor feedback, and erratic process behavior. Buying New Surplus ensures original factory accuracy, zero thermal wear, and full operational service life.

Can I mix current (4–20 mA) and voltage (0–10 V) inputs on the same 07AC91F unit?

Yes. The 8 analog input channels can be configured independently for voltage, current, or RTD temperature sensors by setting the corresponding hardware jumpers and software parameters.

Is the 07AC91F / GJR5252300R3101 an obsolete part?

Yes, ABB transitioned the AC31 automation family into legacy status. Because these units are no longer in active production by the OEM, maintaining a New Surplus spare in your plant inventory is critical to avoid expensive PLC platform migrations when an operational module fails.

What causes CS31 bus communication errors on this module?

CS31 communication faults are typically caused by duplicate node address settings, improper bus termination (missing 120-ohm line resistors at line ends), or ungrounded signal shielding allowing electromagnetic interference (EMI) onto the RS485 line.

What warranty and documentation accompany this product?

All New Surplus ABB 07AC91F GJR5252300R3101 modules ship in anti-static ESD packaging with factory serial verification tags, a certified QC inspection report, and a full 1-year operational replacement warranty.
