3. Key Technical Specifications
| Parameter | Value |
| Product ID / MPN | 3BHB021400R0002 |
| Model Code | 5SHY4045L0004 (sub-version GVC736) |
| Component Class | Asymmetric Integrated Gate-Commutated Thyristor (IGCT) |
| Peak Repetitive Off-State Voltage (V_{DRM}) | 4500 V |
| Silicon Wafer Diameter | 91 mm |
| Switching Performance | Snubberless turn-off capability up to high-kA peaks |
| Gate Unit Operating Power | 24 VDC auxiliary control feed |
| Control Logic Interface | Integrated high-speed fiber optic receivers (minimizes EMI noise) |
| Cooling Profile | Liquid or forced-air double-sided presspack cooling |
| Housing Design | Hermetically sealed ceramic disc housing with integrated low-inductance gate unit casing |
4. Product Introduction & Application Strategy
The ABB 3BHB021400R0002 5SHY4045L0004 is a high-power Asymmetric Integrated Gate-Commutated Thyristor (IGCT) module with an integrated low-inductance gate driver unit. Primarily utilized in heavy-duty medium voltage converters—such as ABB’s flagship ACS 6000 drive platform, active rectifiers, static synchronous compensators (STATCOM), and locomotive traction converters—this device handles peak voltage blocks up to 4500V. By integrating the gate driver board directly onto the thyristor disc housing, the IGCT achieves incredibly fast, snubberless turn-off switching speeds while operating at lower conduction losses than equivalent IGBT modules.
Within heavy process industries (such as rolling mills, gas compressors, marine propulsion, and wind farm transmission links), the IGCT is a mission-critical asset. Because these modules operate under intense thermal stress and carry high load currents, aging gate driver capacitors or silicon wear can lead to sudden gate failure.
Sourcing this component as a certified New Surplus unit is vital. Refurbished or pulled semiconductors often hide underlying crystal damage, thermal micro-cracks, or dry electrolytic capacitors within the gate unit. Having a factory-fresh, zero-hour surplus module available guarantees immediate field replacement, bypassing long lead times and restoring your multi-megawatt systems safely.

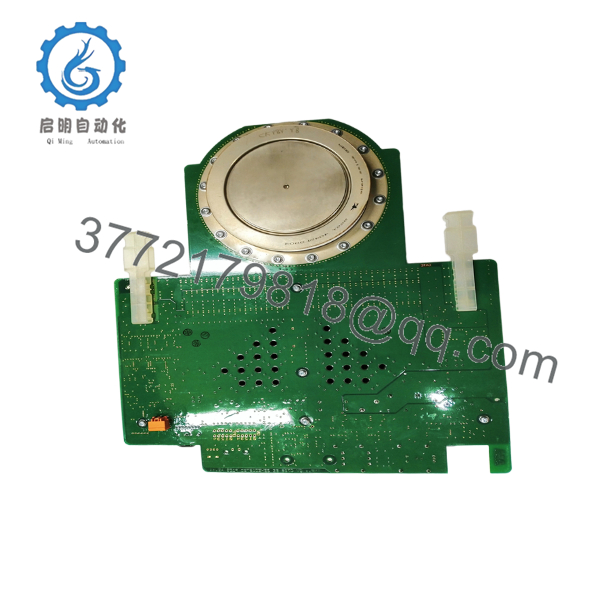

- 3BHB021400R0002 5SHY4045L0004

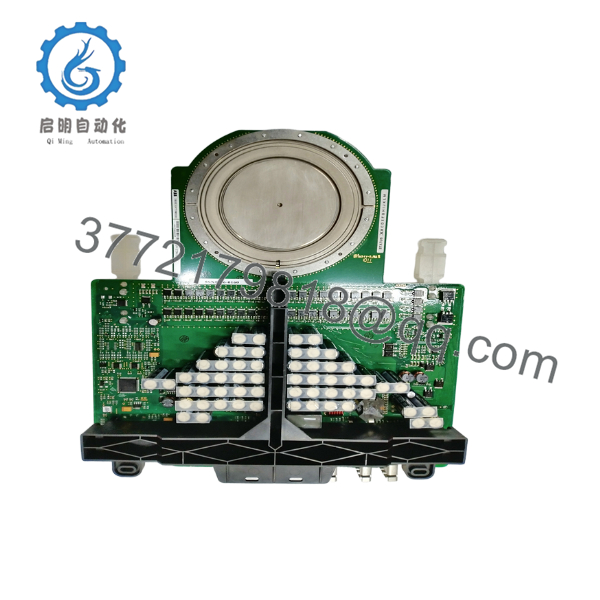

- 3BHB021400R0002 5SHY4045L0004
5. Installation & Commissioning Best Practices
Stage 1: Safety & DC Bus Discharge
Before handling the converter stack, implement strict lock-out/tag-out (LOTO) protocols. Isolate both the main high-voltage AC feeds and auxiliary low-voltage controls. Ensure that all DC link capacitors are fully discharged. Verify that the voltage across the converter bus is at 0V using calibrated high-voltage measuring equipment. Wear an ESD wrist strap connected to a verified earth ground.
Stage 2: Extraction & Surface Prep
Disconnect the auxiliary 24 VDC power and fiber-optic communication cables from the integrated gate unit. Release the clamp pressure on the presspack heatsink assembly. Gently slide the failed IGCT out of the stack guide. Before inserting the new module, clean the contact surfaces of both the heatsinks and the new 3BHB021400R0002 disc using an approved solvent. Apply a micro-thin layer of high-conductivity thermal joint compound to the contact faces.
Stage 3: Precise Mechanical Clamping
Insert the new IGCT module, checking that the orientation matches the surrounding stack layout. The presspack design relies on uniform contact pressure to manage high thermal dissipation and electrical conductivity. Tighten the stack clamping mechanism evenly to the exact kilonewton (kN) specification provided by the ABB system documentation.
⚠️ CLAMPING PRESSURE WARNING: Under-tightening the stack leads to high contact resistance, causing thermal runaway and immediate device destruction. Over-tightening can crush the internal silicon wafer. Always use a calibrated torque wrench/tension gauge to ensure the clamping pressure meets specifications.
Stage 4: Fiber Optic & Power-On Checks
Connect the high-integrity fiber-optic communication lines and plug in the 24 VDC auxiliary power harness. Before applying high voltage to the primary converter, energize the auxiliary control circuits to verify that the integrated gate unit initializes correctly, status feedback loops show “Ready,” and no fiber-optic link faults are reported at the master PLC.
6. Frequently Asked Questions (FAQ)
What is the benefit of the integrated gate unit on the 5SHY4045L0004?
The integrated gate unit ensures exceptionally low internal inductance between the gate driver circuits and the thyristor wafer. This allows the drive system to turn off thousands of amperes in microseconds without requiring heavy, expensive snubber circuits, greatly reducing overall footprint and thermal output.
Is this unit compatible with both liquid-cooled and air-cooled systems?
Yes. The 3BHB021400R0002 is designed as a double-sided presspack module. It can be integrated into either liquid-cooled cold plates or high-efficiency forced-air heatsink clamps, provided the physical mounting frame matches its 91mm footprint and appropriate clamping tension is applied.
Is this ABB IGCT module brand new?
Yes. This is a Brand New Surplus unit. It has not been salvaged from decommissioned equipment, nor has it undergone third-party rebuilding. The assembly is supplied in pristine condition with factory-clean contact faces, unblemished gate circuitry, and untouched fiber-optic ports.
What warranty covers this high-voltage power semiconductor?
We back this New Surplus 3BHB021400R0002 / 5SHY4045L0004 module with our comprehensive 1-year operational warranty from your date of purchase. If a component or material defect occurs during this window, we handle replacement or repair immediately, shielding your operating budget from the risks of refurbished alternatives.
