Key Technical Specifications
- Model: 5SHX3545L0016
- Manufacturer: ABB
- Device type: IGCT module / power semiconductor
- Rated voltage: 4,500 V
- Rated current: 3,545 A
- Package diameter: 91 mm
- Application: High-power medium-voltage conversion
- Cooling: Not verified from ABB source; confirm against OEM datasheet before installation
- Condition: New or surplus depending on seller listing
- Related part reference: 3BHB020720R0002 appears in paired listings
Product Introduction
ABB 5SHX3545L0016 is an IGCT power semiconductor used in high-power, medium-voltage conversion systems. Public listings identify it as an ABB IGCT module with a 4,500 V rating, 3,545 A rating, and 91 mm package size.
This part belongs in serious power hardware, not control-level I/O. Before ordering, confirm the exact gate drive, mechanical footprint, cooling arrangement, and matched companion parts, because a wrong substitution here can stop a drive train fast.

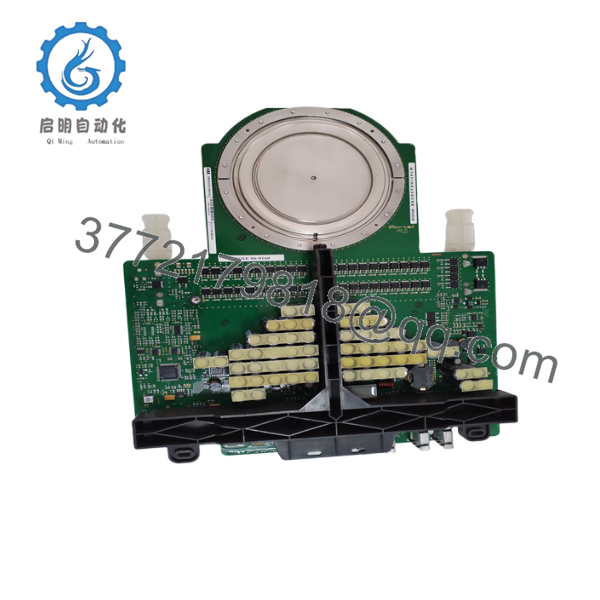

- 5SHX3545L0016

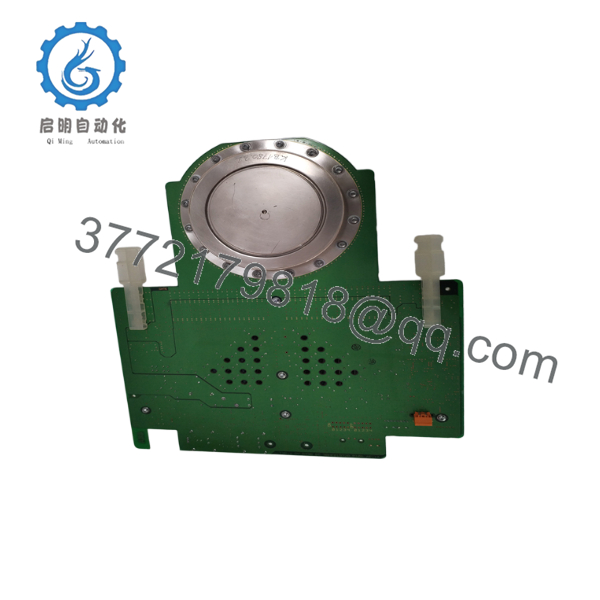

- 5SHX3545L0016
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Converter will not start | Gate drive fault or missing enable | ✅ High | Read drive fault code, verify gate supply and interlocks | Check control power and driver first |
| Fast fuse blows on startup | Shorted IGCT or downstream power stage fault | ✅ High | Measure insulation and diode/semiconductor test offline | Isolate the power stage before replacing |
| Phase output missing | Open device, failed gate drive, or control board issue | ✅ High | Compare phase voltages and gate signals across all legs | Swap only after verifying the driver and upstream supply |
| Overtemperature trip | Cooling problem or overload | ✅ High | Check cooling circuit, airflow, and heat sink condition | Fix thermal path before condemning the module |
| Uneven current sharing | Mismatch in parallel devices or aging hardware | ✅ Medium | Compare current waveforms and device temperatures | Inspect matched devices as a set |
| Repeated nuisance faults after replacement | Wrong revision or incompatible gate unit | ✅ High | Compare part number, revision, and gate interface | Match the exact ABB configuration before install |
If you are stuck, contact technical support with photos, fault codes, and the OEM datasheet or drive nameplate details.
Frequently Asked Questions (FAQ)
Q: What is ABB 5SHX3545L0016?
A: It is an ABB IGCT power semiconductor module used in high-power medium-voltage applications. Public listings also describe it as a 4,500 V, 3,545 A device.dcsmro+3
Q: Is this a controller or an I/O board?
A: No. This is a power semiconductor, not a PLC card, sensor, or control module. It handles large current switching in the power stage.
Q: What voltage and current rating should I expect?
A: Listings repeatedly show 4,500 V and 3,545 A, with a 91 mm package size. Treat those as listing-confirmed values and verify them against the OEM datasheet before use
A: Only if the gate drive, mechanical fit, cooling, and companion components match exactly. Power semiconductors are unforgiving, and small mismatches can cause immediate faults or damage.
Q: Is it new original or refurbished?
A: Seller listings vary between new stock, surplus, and replacement-oriented inventory. State the exact condition you can document; do not guess.
Q: Why is this part hard to source?
A: IGCT modules sit in the high-power end of ABB systems, so availability depends on exact revision and application family. Public listings show it in specialized power-electronics channels rather than general automation stock.
Q: What should I check before ordering?
A: Confirm the exact part number, the gate drive interface, cooling method, and the mechanical mounting arrangement. That saves a lot of rework on the power cabinet side.
