ABB AO810V2 0-20mA 4-20mA 14-Bit S800 I/O Module

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The ABB AO810V2 (3BSE038415R1) is an 8-channel analog output module built for the S800 I/O platform. It converts digital control commands from System 800xA or Advant OCS controllers into precise 0 to 20 mA or 4 to 20 mA current loops. These loops control variable speed drives, control valves, and current-to-pressure (I/P) positioners. The module incorporates cyclic serial readback diagnostic routines to confirm that the physical output accurately mirrors the D/A converter’s targeting logic.

From an inventory management standpoint, maintaining AO810V2 spares in New Surplus condition is essential to minimizing Total Cost of Ownership (TCO). Analog outputs control primary plant actuators, meaning a single channel failure can immediately halt processing lines. Choosing used or refurbished modules introduces substantial risks of signal drift, degraded digital-to-analog components, and immediate failures under heavy load. A verified New Surplus spare on-site ensures your facility retains factory-grade calibration, bypasses the lengthy lead times of direct manufacturer orders, and avoids costly plant downtime.

AO810V2

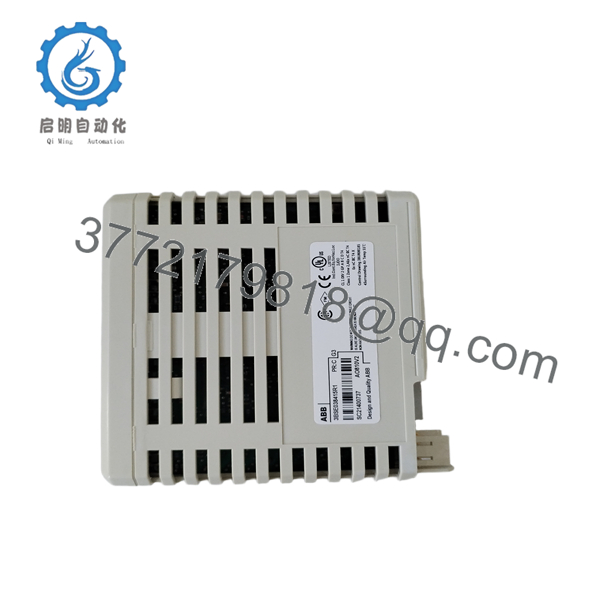

AO810V2

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Isolate the external 24 V DC process power supply powering the output loops to prevent short circuits during the swap.
2. Fasten a grounded ESD wrist strap to your wrist and connect it to the system rack cabinet structure.
3. Use your control system engineering station to record the exact channel configuration parameters and current state.

Stage 2: Removal

1. Release the upper and lower locking latches on the AO810V2 module housing.
2. Pull the module straight forward along the Module Termination Unit (MTU) guides. Avoid twisting the unit to prevent bending the delicate Modulebus pins on the backplane.
3. Slide the removed card directly into an ESD-safe protective shielding bag.

Stage 3: Installation (Clone & Seat)

1. Examine the mechanical keying code (Set to AE for this module type) on the replacement unit to ensure it matches the MTU slot.
2. Carefully align the module housing with the MTU guides.
3. Press the module firmly inward until the locking latches snap into place, confirming a secure backplane mating.

Stage 4: Power-On & Testing

1. Re-engage the external 24 V DC process power supply.
2. Monitor the diagnostic LEDs on the module front panel. The green R (Run) LED must light up steadily, while the red F (Fault) and yellow W (Warning) LEDs should remain off.
3. Force a low-level test current (e.g., 4.0 mA) to each configured channel from the engineering workstation to verify loop continuity and control valve tracking.

6. Firmware/Software Versions & Upgrade Notes

The AO810V2 is the direct functional successor to the legacy AO810 module. While it offers hardware refinements and improved noise immunity, it relies on system-specific firmware definition files. Ensure your controller platform’s S800 I/O driver package is updated to recognize the V2 hardware designation.

During emergency hardware swaps, avoid downgrading the onboard firmware of a newly manufactured surplus module to match old, unpatched system firmware. Doing so can erase factory calibration tables and cause permanent communication faults. Instead, verify compatibility in a test rack environment or contact procurement to source an exact hardware revision matching your active cluster configuration.

7. Frequently Asked Questions (FAQ)

What is the difference between an original AO810 and this AO810V2 module?

The AO810V2 is a second-generation hardware revision designed by ABB to improve long-term thermal management, component reliability, and noise suppression. It is a direct physical replacement for the older AO810, but your controller software must support the updated hardware profile definition to ensure full diagnostic functionality.

What happens to the outputs if communication with the controller is lost?

The AO810V2 features an Output Set predetermined State (OSP) safety routine. If the Modulebus communication link drops, the module automatically forces all 8 outputs to pre-configured safe values (e.g., 0 mA, 4 mA, or hold last value) to prevent hazardous field conditions.

Why should I choose a New Surplus unit over a cheaper refurbished AO810V2?

Refurbished analog output modules frequently suffer from degraded D/A converters, aging output transistors, and drift in internal reference voltages. These issues cause uncalibrated signal offsets that affect valve position precision. Buying our New Surplus units ensures zero component wear, factory-level calibration, and a long, reliable operational lifespan in demanding process control environments.

Is this module hot-swappable on the MTU?

Yes. The S800 I/O system allows hot-swapping under power. However, pulling an active AO810V2 instantly interrupts all 8 active control loops. Ensure that affected processes are set to safe, manual control limits before extracting the module to prevent system trips.

What warranty terms do you provide for this spare?

Our New Surplus AO810V2 modules come with a full 12-month replacement warranty starting from the date of shipment. If any component failure or diagnostic fault occurs under normal operating conditions, we will replace the module immediately from our active inventory.

The AO810V2 delivers eight high-precision 14-bit unipolar analog current outputs for S800 fieldbus architectures. It provides cyclic readback validation on all active current loops to guarantee accurate control valve positioning and system safety.
