ABB CP435-T-ETH 7-Inch TFT HMI Panel 24V DC

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB CP435-T-ETH is a 7-inch widescreen HMI panel that provides process visualization, alarm logging, and machine control via Modbus, AC500, and standard Ethernet protocols. Industrial plants deploy this terminal inside control cabinets to interface directly with field PLCs.

Because ABB transitioned the CP400 series to limited lifecycle status, sourcing genuine New Surplus units prevents costly panel redesigns. Second-hand or worn screens pose severe risks of touchscreen drift, failed backlights, and sudden communication failures that dump production lines into emergency stop states. Maintaining an on-site New Surplus unit guarantees an instant drop-in replacement, lowering Total Cost of Ownership (TCO) and securing your active production line against obsolete hardware downtime.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) procedures on the 24 V DC supply cabinet power before opening the panel enclosure.
2. Strap on a grounded ESD wrist cuff connected to the cabinet frame to prevent static discharge from damaging backplane electronics.
3. Inspect the mounting cutout (231 mm x 176 mm frame size) and verify the panel gasket is clean and intact.
4. Photograph all rear cable routing, DIP switch arrays, and serial pin connectors on the existing module prior to removal.

Stage 2: Removal

1. Unplug the 24 V DC power terminal block, RJ45 Ethernet cable, and COM serial connectors.
2. Loosen the screw clamps securing the HMI panel inside the enclosure cutout.
3. Carefully slide the legacy panel straight forward out of the cutout to avoid damaging surrounding cabinet wiring.

Stage 3: Installation (Clone & Seat)

1. Match the DIP switch settings on the rear of the new CP435-T-ETH to mirror the original unit exactly.
2. Insert the new panel through the front panel cutout and tighten the mounting clamps evenly to achieve an IP65 perimeter seal.
3. Reattach the dedicated protective earth (PE) ground lead directly to the terminal’s grounding screw.
4. Reconnect the serial ports, Ethernet jack, and 24 V DC power block.

Stage 4: Power-On & Testing

1. Measure the incoming voltage across the 24 V DC leads with a digital multimeter to confirm it falls between 20.4 V DC and 27.6 V DC.
2. Apply power and monitor the boot sequence on the 7-inch TFT display.
3. Verify the Ethernet communication handshake with the connected PLC via status LEDs and network ping checks.
4. Load the application project via CP400Soft over Ethernet or USB and perform a point-to-point touch test across all screen zones.

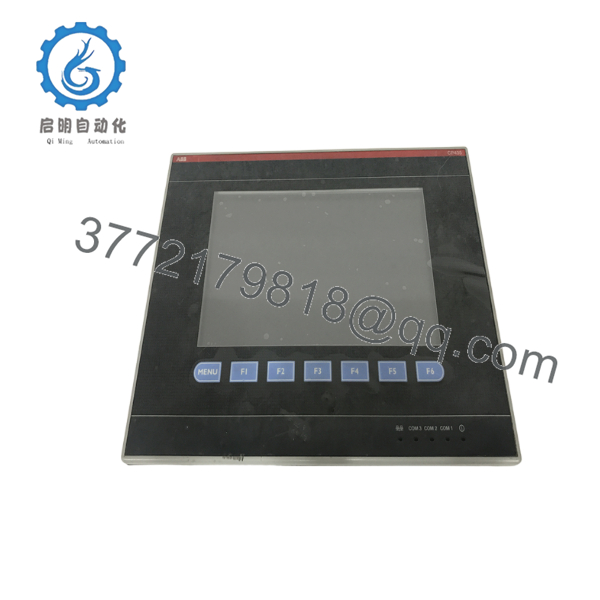

CP435-T-ETH

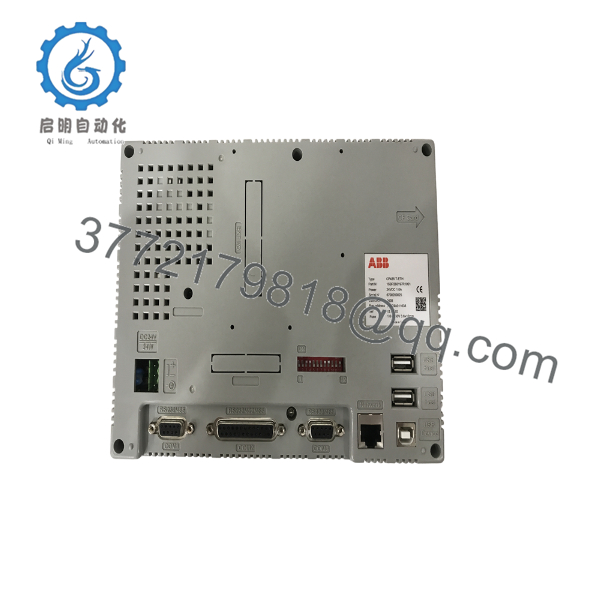

CP435-T-ETH

Firmware/Software Versions & Upgrade Notes

• Configuration Tool: CP400Soft (Version 11.13 or higher recommended for full parameter field support).
• Firmware Compatibility: Ensure the target firmware image aligns with your runtime PLC driver definitions (e.g., Modbus RTU / AC500 drivers).
• Migration Risks: Upgrading runtime OS firmware mid-operation can alter internal memory mapping structures and corrupt retentive recipe data stored in the 512 KB RAM. Always backup the .cpa or project binary file using CP400Soft prior to pushing firmware updates or performing hardware swaps.

Frequently Asked Questions (FAQ)

Is this unit genuinely new or pulled from a decommissioned cabinet?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification—including live power-on and port checks—to ensure true OEM-level performance.

Why is New Surplus priced higher than refurbished options online?

Refurbished parts frequently hide degraded CCFL backlights, dried electrolytic capacitors, or worn touchscreen resistive layers. While a refurbished screen might save a few hundred dollars initially, a single unexpected screen failure can halt production and cost tens of thousands of dollars in unplanned downtime. New Surplus buys 100% operational reliability and full operational lifespan.

Is the ABB CP435-T-ETH an obsolete or end-of-life part?

Yes, ABB placed the CP400 panel series into limited lifecycle status. Because OEMs no longer produce these units for active series distribution, holding a New Surplus spare in your inventory is essential to prevent costly retrofits and panel cut-out modifications when an existing panel fails.

Can I hot-swap this HMI panel while the cabinet is energized?

No. Always disconnect the 24 V DC power connector before removing or installing communication leads and mounting brackets. Hot-swapping risks voltage spikes across serial communications ports, which can damage internal RS232/RS485 transceiver ICs.

Does the panel retain recipe data when system power is turned off?

Yes. The CP435-T-ETH contains 512 KB of battery-backed RAM and an integrated real-time clock (RTC) powered by an internal lithium cell. This holds active recipe registers and alarm logs intact during plant shutdown periods.

What warranty and verification documentation comes with the unit?

Every CP435-T-ETH ships in its original ESD packaging with a full quality inspection report, verifiable serial numbers, and a comprehensive 1-year warranty backing its electrical and mechanical operation.
