3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | IDM-96 |
| Product Type | Digital Power Multimeter |
| Mounting | 96 × 96 mm panel cutout |
| Measurement System | Single-phase and three-phase AC networks |
| Electrical Parameters | Voltage, Current, Active Power, Reactive Power, Apparent Power, Frequency, Power Factor, Energy |
| Harmonic Analysis | Up to the 63rd harmonic (model dependent) |
| Accuracy Class | Typically Class 0.5 (configuration dependent) |
| Communication | Optional RS-485 with Modbus RTU |
| Auxiliary Power Supply | 85–265 VAC or 90–300 VDC (variant dependent) |
| Current Inputs | 1 A or 5 A CT input versions |
| Voltage Inputs | Up to 500 VAC (configuration dependent) |
The publicly available ABB documentation identifies the IDM-96 as a configurable multifunction digital panel meter with optional Modbus RTU communication and harmonic measurement capabilities. Exact specifications depend on the ordering code (for example, N00392 or N00407 variants).
4. Product Introduction
The ABB IDM-96 is a multifunction digital panel meter designed for industrial switchboards, motor control centers, power distribution panels, and process automation systems. It continuously measures key electrical parameters, allowing operators to monitor power quality, load conditions, and energy consumption from a single instrument.
Unlike a basic voltmeter or ammeter, the IDM-96 combines multiple electrical measurements, harmonic analysis, and optional Modbus RTU communication in a standard 96 × 96 mm enclosure. It is commonly installed in power plants, manufacturing facilities, water treatment plants, and large commercial electrical distribution systems.

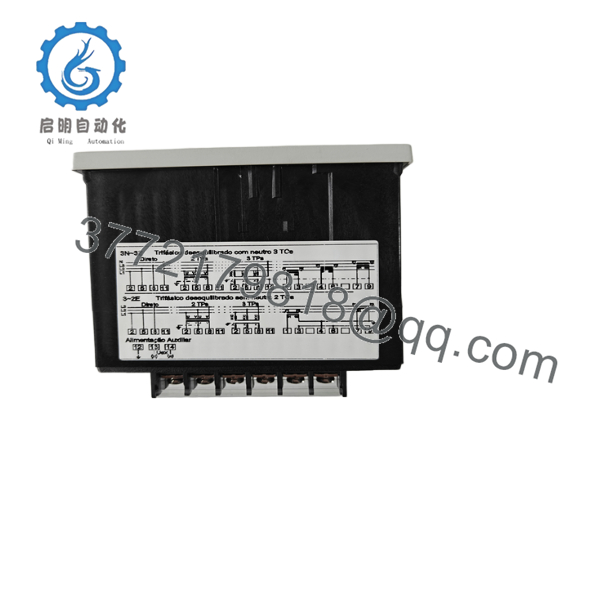

- IDM-96

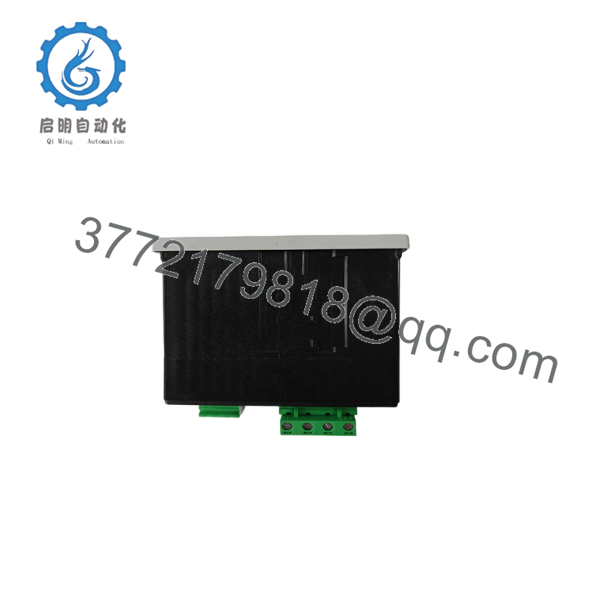

- IDM-96
5. Installation & Configuration Guide
Stage 1 – Pre-Installation Preparation (10 minutes)
⚠️ Safety First
- Notify operations before isolating the electrical panel.
- Apply Lock-Out/Tag-Out procedures.
- Verify all measurement circuits are de-energized.
- Confirm CT secondary circuits are safely shorted before disconnecting.
- Wear appropriate PPE when working inside energized switchgear.
Required Tools
- ESD wrist strap (for communication option boards)
- Digital multimeter
- Insulated screwdrivers
- CT ratio documentation
- PT ratio documentation
- Torque screwdriver
Before Installation
- Record existing CT and PT ratios.
- Document Modbus address and baud rate if replacing an existing meter.
- Verify the auxiliary supply voltage matches the new instrument.
Stage 2 – Removing the Existing Meter
- Label every voltage and current connection.
- Disconnect the auxiliary power supply.
- Remove communication wiring.
- Release the panel mounting brackets.
- Remove the instrument from the front of the panel.
⚠️ Never open-circuit a live current transformer (CT). Always short the CT secondary before disconnecting the meter.
Stage 3 – Installing the New IDM-96
- Verify the replacement ordering code.
- Insert the meter into the 96 × 96 mm panel opening.
- Secure the mounting clamps.
- Connect voltage inputs.
- Connect CT inputs using the documented polarity.
- Connect the auxiliary power supply.
- Configure CT ratio, PT ratio, communication settings, and display parameters.
Installation Checklist
- ✔ Correct wiring polarity
- ✔ CT ratio configured
- ✔ PT ratio configured
- ✔ Modbus address assigned
- ✔ Auxiliary supply verified
Stage 4 – Power-On & Commissioning
- Apply auxiliary power.
- Verify the display initializes normally.
- Confirm voltage readings.
- Confirm current readings under load.
- Compare measurements with a calibrated reference meter.
- Verify Modbus communication if installed.
⚠️ Troubleshooting
No display
- Verify auxiliary power.
- Check supply voltage range.
- Inspect input fuses.
Incorrect current reading
- Verify CT ratio programming.
- Check CT polarity.
- Confirm the correct 1 A or 5 A configuration.
Communication failure
- Verify Modbus address.
- Confirm baud rate and parity settings.
- Inspect RS-485 wiring termination.
6. Frequently Asked Questions (FAQ)
Q1. Can the IDM-96 measure three-phase systems?
Yes. The IDM-96 supports both single-phase and three-phase electrical systems. Configuration depends on the wiring arrangement and the specific ordering code.
Q2. Does the IDM-96 support Modbus communication?
Many IDM-96 configurations include an optional RS-485 Modbus RTU interface for integration with PLCs, DCS platforms, SCADA systems, and energy management software. Verify the installed hardware option before purchasing.
Q3. Can I replace an older IDM-96 without changing panel cutouts?
In most cases, yes. The instrument uses the standard 96 × 96 mm panel format widely used in industrial electrical equipment. Always confirm the depth and terminal layout before ordering.
Q4. What is the most common commissioning mistake?
Incorrect CT programming. I’ve seen technicians install the meter perfectly, only to discover that the displayed current is exactly five times too high because the CT ratio remained at the factory default. Verify CT and PT ratios before putting the meter into service.
Q5. Does the IDM-96 perform harmonic analysis?
Yes. Depending on the hardware version, the instrument can measure Total Harmonic Distortion (THD) and harmonic components up to the 63rd harmonic, making it useful for monitoring power quality in facilities with variable frequency drives and other nonlinear loads.
Q6. Is the IDM-96 still available?
The IDM-96 has been on the market for many years, and some variants are now considered legacy products. New surplus inventory and professionally refurbished units are often available, but you should verify the exact ordering code (for example, N00392 or N00407) to ensure electrical compatibility with your installation.
