3. Key Technical Specifications
- Number of Inputs: 16 digital inputs
- Resolution: 1 millisecond time-stamping
- Input Voltage Options: 24/48/125 VDC or 125 VAC (via termination unit)
- Power Requirements: +5 VDC, ±5% at ~300-350 mA typical
- Microprocessor: 16-bit running at 10 MHz
- Memory: Onboard for event buffering
- Communication: Via I/O expander bus to Harmony controller (Function Code 242)
- Max Modules: Up to 63 IMSED01 per I/O expander bus segment (with one IMSET01)
- Termination: Uses NTDI01 unit for field wiring
- Dimensions: 17.8 cm x 5.1 cm x 33.0 cm (standard module)
- Weight: Approx. 0.4 kg
- Isolation: Isolated input channels
4. Product Introduction
The ABB IMSED01 is a Sequence of Events Digital Input Module for the Infi 90 and Harmony control systems. It captures and time-stamps up to 16 digital field inputs at 1 ms resolution to provide accurate event sequencing data to the controller.
Plant engineers rely on this module for post-trip analysis, alarm tracking, and compliance reporting in power generation, process plants, and other high-speed event monitoring applications. It integrates cleanly with existing Harmony racks and pairs with the IMSET01 for full time synchronization when needed.

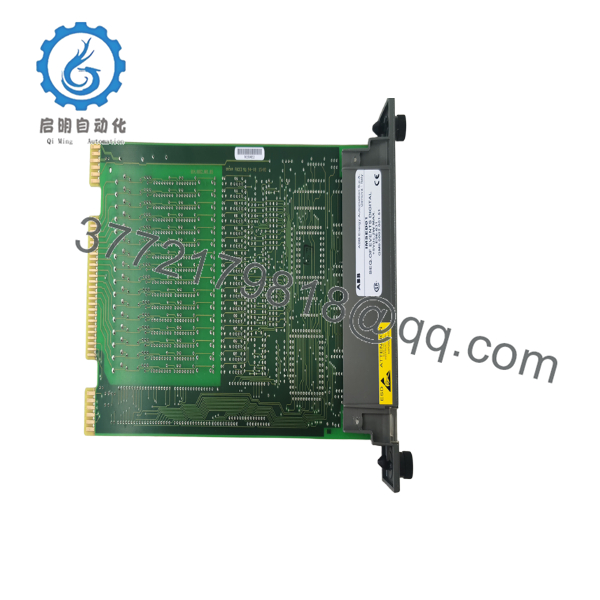

- IMSED01

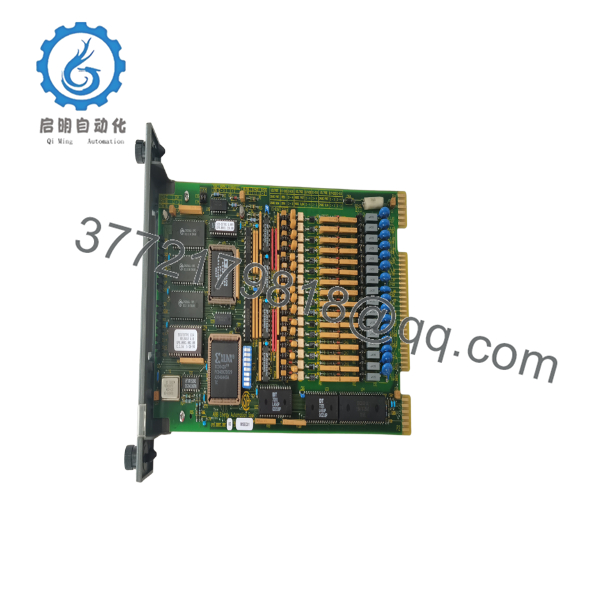

- IMSED01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No events recorded | Input wiring or signal level mismatch | ✅ High | Measure voltage at field terminals during event; confirm software configuration (FC 242) | Verify input type settings and termination unit wiring |
| Missed or delayed timestamps | Bus communication overload or noise | ✅ Medium | Check controller diagnostics for I/O bus errors | Reduce module count per segment or improve shielding |
| Module not recognized by controller | Incorrect slot addressing or expander bus fault | ✅ High | Confirm module address jumpers and bus cable integrity | Reseat module and check expander bus connections |
| False or chatter events | Contact bounce or electrical noise | ✅ High | Review input filter settings in configuration | Adjust debounce timing in function code parameters |
| High current draw or overheating | Short in field wiring | ❌ Low | Measure backplane current and inspect inputs | Isolate and repair field side wiring or contacts |
Gather module status, event logs, and wiring photos before contacting support if basic checks do not resolve the issue.
6. Frequently Asked Questions (FAQ)
What is the difference between IMSED01 and IMSET01? The IMSED01 handles 16 SOE digital inputs only. The IMSET01 adds time synchronization link processing for the full distributed SOE system.
How many IMSED01 modules can I install? Up to 63 per I/O expander bus segment when paired with one IMSET01. Total system capacity depends on your specific Harmony controller configuration.
Is this module hot-swappable? No. Power down the affected I/O bus or rack section before installation or removal to avoid bus faults or damage.
What termination hardware is required? Use the NTDI01 termination unit for field wiring connections. It provides the necessary isolation and surge protection for the inputs.
How accurate is the time stamping? 1 millisecond resolution across captured events when the system is properly synchronized. Actual performance depends on overall network timing.
What condition are your IMSED01 units? Offered as New Original / New Surplus with full traceability. Each unit undergoes functional testing in a Harmony rack environment before shipment.
Do you provide test reports? Yes. We include verification of input channel operation, bus communication, and basic diagnostics. Full test videos or data available upon request.
