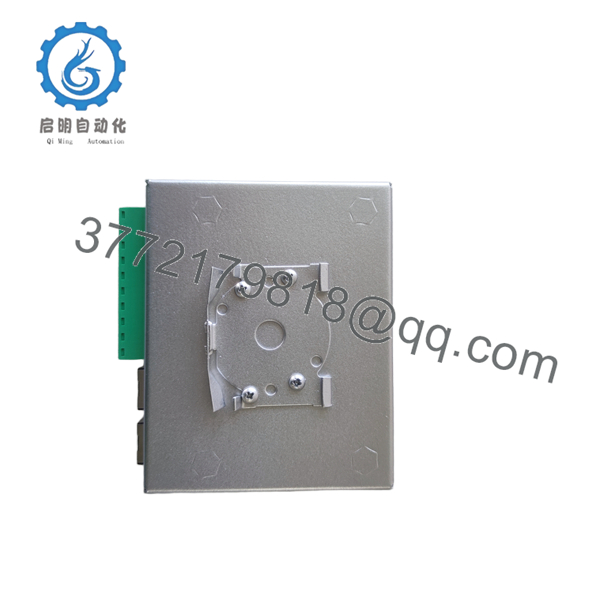

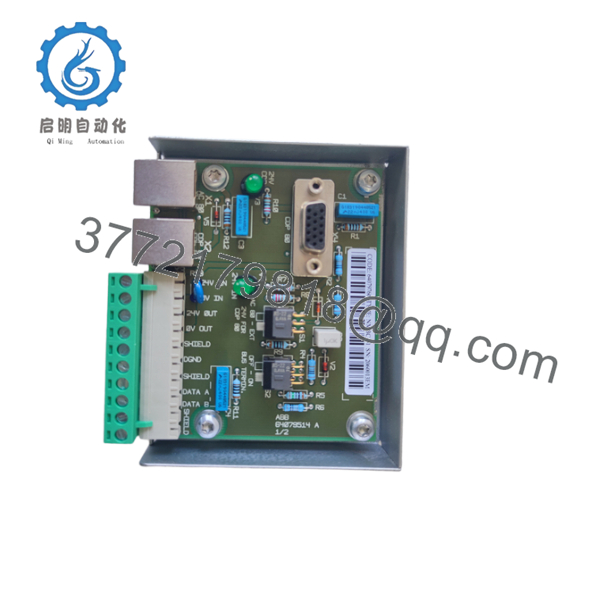

ABB NMBC-01 Modbus Adapter for ABB Drives

  • Model: NMBC-01 (64079760)
  • Brand: ABB
  • Series: Drive Communication Options
  • Core Function: Modbus network connectivity
  • Product Type: Modbus Connection Module
  • Key Specs: RS-485 Modbus RTU, optical isolation, up to 100m transmission
  • Condition: New Original / New Surplus
Get a Quote
Categories: , , , , SKU: NMBC-01 Brand:

Description

3. Key Technical Specifications

  • Protocol: Modbus RTU (Master/Slave capable)
  • Interface: Electrical (RJ45/terminal block) with optical isolation
  • Transmission Distance: Up to 100 meters (Ethernet variant aspects or standard RS-485)
  • Baud Rates: Standard Modbus rates (up to 115.2 kbps typical)
  • Power Supply: Supplied by drive or 24 VDC
  • Connectors: Plug-in to drive option slot
  • Indicators: Status LEDs for communication activity
  • Isolation: Optical isolation on bus side
  • Mounting: Internal drive option slot
  • Compatibility: Select ABB drive families (verify exact model)

4. Product Introduction

The ABB NMBC-01 (64079760) is a Modbus Connection Module that enables seamless integration of ABB drives into Modbus networks. It provides reliable RS-485 communication for monitoring, control, and data exchange with PLCs or SCADA systems.

Technicians use this module in retrofits and new installations where Modbus RTU is the preferred fieldbus due to its simplicity and widespread adoption. It handles parameter access, commands, and diagnostics without requiring complex configuration.

NMBC-01
NMBC-01
NMBC-01
NMBC-01

5. Troubleshooting Quick Reference

Symptom Possible Cause Relevance to this Part Quick Check Method Recommendation
No communication with master Wrong baud rate or address ✅ High Verify drive and module parameters match master settings Set correct station address (1-247) and baud rate
Intermittent comms Cable noise or termination issues ✅ High Check RS-485 wiring polarity and termination resistor Install 120 ohm termination at bus ends; use shielded cable
Module not detected by drive Improper seating ❌ Low Confirm module fully seated in option slot Power cycle drive and check option slot recognition
Data errors or CRC faults Ground potential difference ✅ Medium Measure ground voltage between devices Ensure common ground reference or use repeaters
LED status shows no activity Cable disconnection ✅ High Inspect physical connections and master polling Verify master is actively polling the drive address

Use drive panel or software to view Modbus diagnostics. Capture error counters before contacting support.

6. Frequently Asked Questions (FAQ)

What protocol does the NMBC-01 support? Modbus RTU over RS-485. It acts as a slave device for most drive applications.

Is this module plug-and-play? It requires basic parameter setup in the drive for address, baud rate, and parity. Refer to the specific drive manual for exact parameters.

Can it be used with any ABB drive? Compatible with many legacy and current ABB drive families. Confirm exact compatibility for your drive model before ordering.

How do I terminate the bus? Use a 120 ohm resistor at each end of the RS-485 line. Many modules include jumper settings for termination.

What is the part number association? 64079760 is the specific identifier for the NMBC-01 Modbus connection variant.

Condition and testing? New Surplus stock. Each unit is verified for communication functionality in a test setup with a Modbus master simulator. Test report available.

Warranty? 1-year functional warranty. Fast shipping on in-stock units. Let us know your drive model for configuration assistance.
