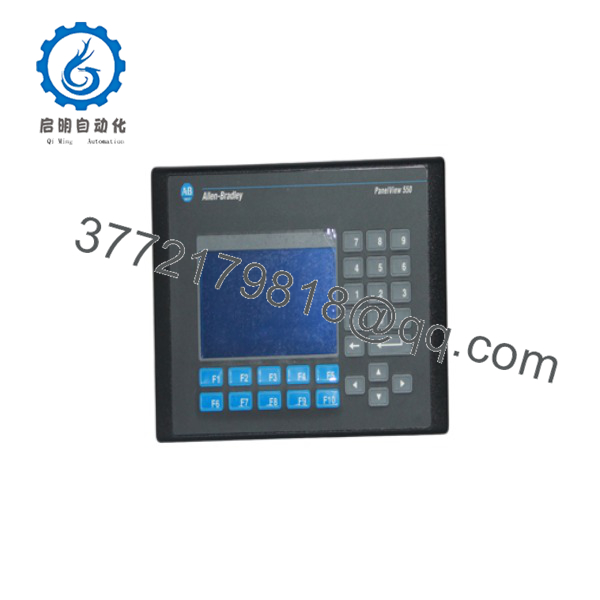

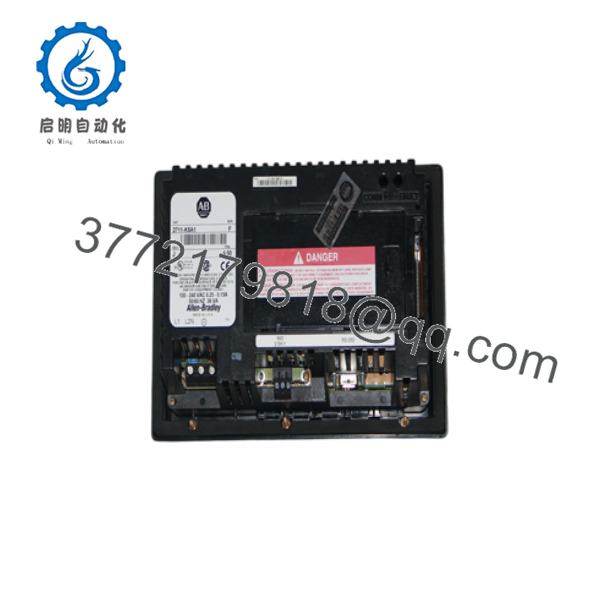

Allen-Bradley 2711-K5A1 5.5-Inch Monochrome HMI with Remote I/O

  • Model: 2711-K5A1
  • Brand: Allen-Bradley (Rockwell Automation)
  • Series: PanelView 550 Standard
  • Core Function: 5.5-inch monochrome operator interface with keypad
  • Product Type: HMI / Operator Terminal
  • Key Specs: 256 × 128; RIO + RS-232 printer; 85–264 V AC
  • ⚠️ Obsolete Model – Limited Stock Available
  • Condition: New Original / New Surplus
Get a Quote
Categories: , , , , SKU: 2711-K5A1 Brand:

Description

3. Key Technical Specifications

Parameter Value
Display Type Monochrome transflective LCD with LED backlight (blue mode)
Display Size 5.5 inches
Display Area 120 × 60 mm (4.75 × 2.38 in)
Resolution 256 × 128 pixels
Backlight Life 100,000 hours (LED)
Operator Input Keypad with 10 function keys (F1–F10), numeric keys, navigation
Application Memory 170 KB runtime; 240 KB nonvolatile (objects, text, bitmaps)
Communication Ports Remote I/O (RIO); RS-232 printer port
Input Voltage 85–264 V AC
Input Frequency 47–63 Hz
Enclosure Rating NEMA Type 12/13, 4X (indoor), IP54, IP65
Status Indicators COMM (green), Fault (red)
Configuration Software PanelBuilder32
Operating Temperature 0 to 55 °C (32 to 131 °F)
Weight (approx.) 1.2–1.3 kg (2.7–2.9 lb)

4. Product Introduction

The Allen-Bradley 2711-K5A1 is a PanelView 550 Standard operator terminal. It features a 5.5-inch monochrome transflective LCD display with 256 × 128 resolution and a keypad interface that includes ten programmable function keys (F1–F10).

The terminal communicates via a Remote I/O (RIO) port for connection to Allen-Bradley PLCs and includes an RS-232 printer port. It is powered by 85–264 V AC and provides 170 KB of application runtime memory plus 240 KB of nonvolatile memory. The unit is designed for panel mounting in industrial environments and is configured with PanelBuilder32 software. This model is part of the discontinued PanelView Standard family.

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10–15 min) ⚠️ Safety First: Disconnect all power sources. Verify the panel cutout matches the required dimensions (approximately 144 × 243 mm). Wear an ESD wrist strap when handling the terminal. Tools Required: ESD strap, screwdriver, multimeter, RIO cable (Belden 9463 or equivalent), RS-232 printer cable if used. Data Backup: Upload the existing application from the old terminal using PanelBuilder32 if possible. Record RIO node address, baud rate, and any printer settings.

Stage 2: Removing the Old Terminal (8–12 min)

  1. Confirm power is removed.
  2. Disconnect the RIO cable and RS-232 printer cable. Label both.
  3. Disconnect AC power wiring.
  4. Release the mounting hardware and remove the terminal from the panel. ⚠️ Retain the old terminal until the replacement is fully tested and the application is verified.

Stage 3: Installing the New Terminal (10–15 min)

  1. Verify the unit is marked 2711-K5A1 and note the series letter.
  2. Insert the terminal into the panel cutout from the front and secure with the appropriate mounting hardware.
  3. Connect AC power (85–264 V AC), observing polarity and grounding requirements.
  4. Connect the RIO network cable and, if required, the RS-232 printer cable.
  5. Ensure the front gasket is properly seated for the enclosure rating. Self-Checklist: [ ] Correct cutout size [ ] Mounting hardware tight [ ] Power and communication cables secure [ ] Series letter recorded.

Stage 4: Power-On & Testing (15–30 min)

  1. Apply AC power. Observe the COMM and Fault status LEDs.
  2. Connect a programming PC running PanelBuilder32 and download or verify the application.
  3. Confirm RIO communication with the PLC and verify all screens and function keys.
  4. Test any printer functionality if used.
  5. Place the system in normal operation and monitor for faults. ⚠️ Troubleshooting Note: A solid red Fault LED usually indicates a hardware or configuration problem. No RIO communication is most often caused by an incorrect node address, baud rate mismatch, or missing terminators on the RIO network.
2711-K5A1

2711-K5A1

2711-K5A1

2711-K5A1

6. Frequently Asked Questions (FAQ)

Q: Can the 2711-K5A1 be hot-swapped? No. Always remove AC power before installing or removing the terminal. Power must be off during all wiring changes.

Q: Is the 2711-K5A1 still in production? No. The PanelView Standard (including the 550 series) was discontinued years ago. Remaining units are new surplus or refurbished. For new designs, migrate to PanelView Plus 7 or PanelView 5000 series terminals.

Q: What software is required? PanelBuilder32 is used to develop and download applications. Compatible versions support the firmware range typically found on these terminals (approximately 1.00–4.48).

Q: What is the difference between keypad-only and keypad/touch models? The 2711-K5A1 is keypad-only. Models with a “B” prefix (e.g., 2711-B5A1) include both keypad and touchscreen input.

Q: Why is the price lower than historical OEM list price? These are genuine surplus units from excess inventory. They are original Allen-Bradley terminals that have never been installed in a running system, but they are no longer available through standard Rockwell channels. Functional testing and warranty are provided.

Q: What cable is used for the RIO port? Belden 9463 (or Allen-Bradley equivalent). Use proper RIO connectors and terminators at both ends of the network.

Q: Is the backlight replaceable? Yes on many series. The replacement backlight kit is typically catalog number 2711-NL1. Confirm compatibility with the specific series of your terminal before ordering.
