AMK DT7-17-20-E00 A2525CD DYNASYN AC Servo Motor

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The AMK DT7-17-20-E00 A2525CD is a high-precision permanent magnet synchronous AC servo motor engineered for demanding motion control tasks in CNC machine tools, packaging lines, printing presses, and robotic automation systems. Featuring high torque density and an integrated A2525CD multi-turn absolute optical encoder, this motor ensures rapid acceleration and rigid position feedback without requiring homing cycles.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Keeping this motor as New Surplus inventory is an essential operational insurance policy. Because this legacy AMK motor model is discontinued by the manufacturer, sourcing an exact drop-in replacement during a sudden stator insulation failure or bearing collapse is nearly impossible through standard distribution. Sourcing genuine New Surplus protects your plant from weeks of unscheduled machinery downtime while bypassing the high failure rates, worn keyways, and degraded insulation typical of second-hand repairs.

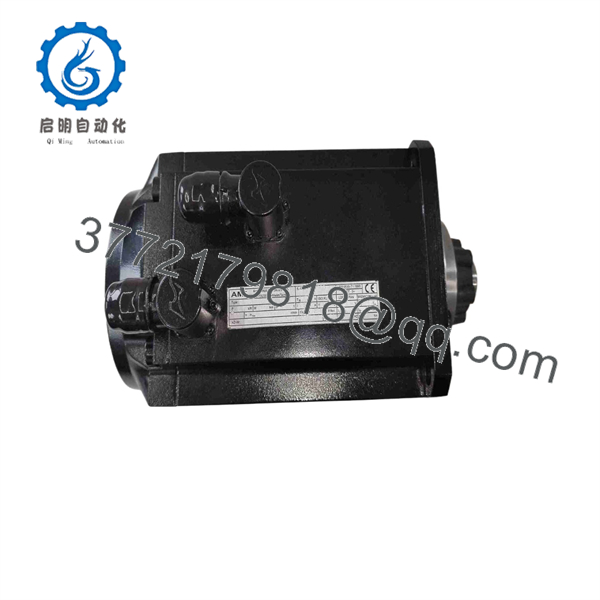

DT7-17-20-E00 A2525CD

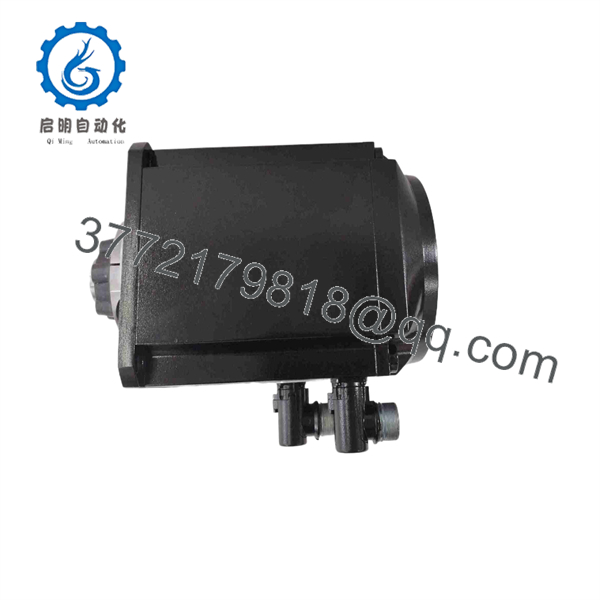

DT7-17-20-E00 A2525CD

Installation & Configuration Guide

1.Pre-Installation Preparation & Safety:Prerequisite.

Initiate complete Lock-Out/Tag-Out (LOTO) on the incoming line reactor and connected AMK inverter drive. Confirm that the DC bus capacitors have fully discharged before touching motor power connectors. Inspect the shaft keyway, mounting flange, and feedback connector pins for transport protection coatings or damage. Take reference photos of the existing motor’s coupling alignment, terminal wiring, and grounding connections.

2.Mechanical Uncoupling & Motor Removal:

Remove protective guarding around the mechanical drive coupling or gear reducer. Unbolt the coupling hubs using proper mechanical pullers—never apply direct axial hammer strikes to the shaft to avoid damaging internal precision bearings or optical encoder discs. Label and disconnect the main power connector and feedback cable. Unbolt the mounting fasteners from the motor flange and carefully lift the motor from its mounting base.

3.Mechanical Mounting & Shaft Alignment:

Align the new DT7-17-20-E00 A2525CD motor flange with the machine’s mounting face and hand-tighten the mounting bolts. Use a dial indicator to verify radial and axial runout within ±0.03 mm to prevent premature bearing wear and vibration. Torque the flange mounting bolts evenly in a cross pattern to manufacturer specifications. Secure the coupling hub to the keyway without applying axial shock loads to the shaft.

4.Electrical Wiring & Commutation Verification:

Connect the heavy-duty power cable (U, V, W, PE) and secure the feedback encoder cable to the rear connector, ensuring 360° shield grounding at the connector backshell. Apply control power to the AMK inverter and verify that the drive recognizes the absolute encoder interface. Jog the motor at low speed to confirm correct rotation direction, smooth operation, and normal thermal readings.

Firmware/Software Versions & Upgrade Notes

• Absolute Encoder Data Interface: The code specifies an integrated multi-turn absolute encoder. Ensure that the connected AMK drive firmware (e.g., AIPEX parameter software) is configured for the matching feedback protocol and resolution settings.
• Commutation Angle (Commutation Offset): AMK permanent magnet motors require strict alignment between the encoder zero position and the rotor magnetic field. Installing a New Surplus factory-assembled motor guarantees factory-calibrated commutation offsets; never loosen or rotate the rear encoder housing on the motor body.
• Thermal Sensor Matching: Verify that the motor thermal monitoring channel in the drive parameter list is set to match the integrated temperature sensor (KTY84-130 or PTC) to prevent false over-temperature faults (F11 / E04).
• Drive Parameter Loading: When swapping motors, reload the specific motor electronic nameplate parameter file (.par) into the drive controller to match the current-loop gains and continuous thermal current limits (I^2t).

Frequently Asked Questions (FAQ)

Why is this New Surplus AMK motor a better investment than sending our failed unit out for repair?

Motor rewinds often degrade core magnetic permeability, reduce insulation ratings, and alter stator slot fill ratios. Rebuilding feedback encoders also requires specialized optical alignment tooling that third-party repair shops rarely possess. A New Surplus DT7-17-20-E00 unit provides original factory winding geometry, factory-aligned absolute feedback, and zero runtime hours.

Is this AMK DT7-17-20-E00 motor guaranteed to be unused?

Yes. Our New Surplus inventory consists exclusively of brand-new, unused motors sourced from cancelled automation projects, machine builder reserves, or strategic warehouse stock. They feature clean shaft keyways, pristine mounting flanges, original insulation resistance levels, and zero operating hours.

How do you verify the quality of legacy AC servo motors?

Every DT7-17-20-E00 motor undergoes rigorous inbound quality inspection. We perform high-voltage (Hi-Pot) insulation testing across all stator windings, measure phase-to-phase resistance balance, inspect shaft runout, and verify absolute encoder signal communication on dedicated test stands prior to ESD-safe packaging.

What causes immediate drive tripping (overcurrent or commutation fault) after motor replacement?

The most common causes are swapped motor power phase lines (swapping U and V phases causes positive feedback runaway), damaged cable shielding introducing noise into the absolute encoder lines, or incorrect parameter file selection in the drive software. Verify phase wiring and cable shielding prior to enabling the drive loop.

Can this motor be installed in liquid-cooled applications?

While some DT series motors support liquid cooling jackets, the convection-cooled model relies on natural surface air dissipation. Ensure adequate free space around the motor frame and keep cooling fins free of dirt buildup to maintain proper operating temperatures.

What warranty coverage comes with this New Surplus motor?

This New Surplus unit comes complete with our comprehensive 1-to-2 year replacement warranty. Should any manufacturing defect or performance failure occur under standard operating conditions within the warranty period, we will immediately supply a replacement unit from our emergency stock.
