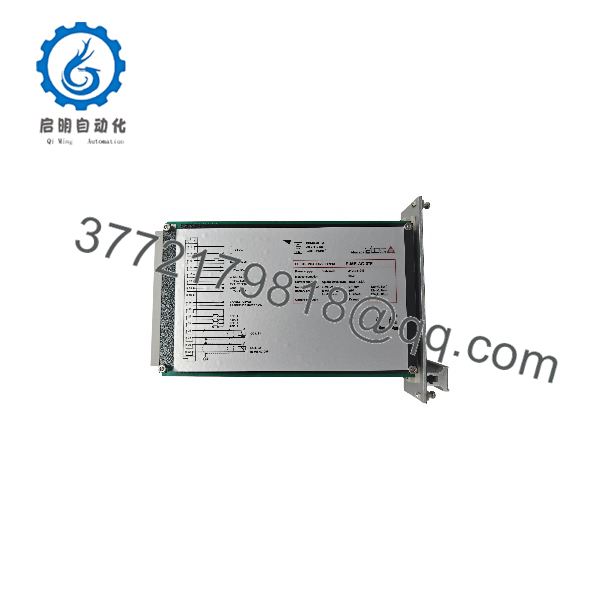

The Atos E-ME-AC-05F is an analog electronic driver card engineered to control non-feedback proportional directional and pressure valves. By converting standard analog command signals (voltage or current) into high-frequency Pulse Width Modulation (PWM) current outputs, the E-ME-AC-05F regulates hydraulic coil excitation, minimizing hysteresis and ensuring smooth mechanical spool positioning in industrial hydraulic systems.

Securing the Atos E-ME-AC-05F as New Surplus provides a reliable solution to reduce Total Cost of Ownership (TCO) and eliminate extended lead times for hydraulic electronic spares. Driver card failures in press lines, plastic injection molding machinery, or steel mill hydraulics lead to instant line stoppages due to uncontrolled valve drift or loss of hydraulic pressure. Unlike refurbished cards that carry invisible thermal stress on power transistors, dried-out smoothing capacitors, or drift-prone trim pots, our New Surplus inventory guarantees zero operating hours, full component service life, and immediate plug-and-play installation.

E-ME-AC-05F

E-ME-AC-05F

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Lock-Out/Tag-Out (LOTO): Isolate 24 VDC control power and depressurize main hydraulic accumulators/pumps before connecting driver wiring.
2. ESD Protection: Wear a grounded ESD wrist strap when handling the card or adjusting calibration trim potentiometers.
3. Documentation: Record potentiometer multi-turn dial settings (Ramp, Bias, Scale) and jumper positions on the outgoing card. Photograph terminal wiring landing positions.

Stage 2: Removal

1. Unplug screw-terminal plug blocks or release the Eurocard card-edge connector.
2. Release the card holder latches or unbolt the module from the DIN rail / rack chassis.
3. Carefully extract the card from its housing frame without touching onboard surface-mount components.

Stage 3: Installation (Clone & Seat)

1. Replicate all jumper configurations (voltage vs. current reference selection) on the new E-ME-AC-05F card.
2. Seat the module firmly into its DIN-rail socket or Eurocard card cage.
3. Re-engage terminal connectors, ensuring power (24 VDC), solenoid coil outputs, and analog signal inputs match system wiring schematics.

Stage 4: Power-On & Testing

1. Apply 24 VDC power and verify that the green PWR status LED lights up solid.
2. Apply a 0–10 V command signal and measure solenoid drive current across test points to confirm proportional output tracking.
3. Fine-tune the BIAS (deadband compensation), SCALE (max flow/pressure gain), and RAMP potentiometers to achieve smooth valve response without hydraulic shock.

Firmware/Software Versions & Upgrade Notes

• Hardware Analog Architecture: The E-ME-AC-05F is a pure analog driver board and does not contain microprocessors or digital firmware. All adjustments are made via onboard multi-turn potentiometers and hardware jumpers.
• Jumper Settings: Ensure input jumpers are correctly positioned for your controller’s output mode (e.g., Jumper set to Voltage Mode for 0–10 VDC inputs or Current Mode for 4–20 mA loop signals).
• Solenoid Resistance Matching: Verify that the output driver configuration matches the coil resistance (typically 3.2 Ω to 12 Ω) of the targeted Atos proportional valve to prevent thermal overload on output transistors.

Frequently Asked Questions (FAQ)

1. Is this Atos E-ME-AC-05F driver card brand new, or has it been used/refurbished?

This unit is guaranteed 100% Original New Surplus. It has never been mounted in a control panel, wired into an active hydraulic cabinet, or energized in a production facility. It remains preserved in factory packaging and undergoes complete visual and pin integrity checks prior to dispatch.

2. Why should I buy New Surplus instead of taking a chance on a refurbished or used card?

Refurbished electronic driver cards from hot, high-vibration hydraulic power unit (HPU) rooms frequently suffer from latent thermal fatigue—such as degraded electrolytic filter capacitors, aged power transistors, and drift-prone adjustment pots. Installing a refurbished card can cause erratic proportional valve hunting or sudden valve lock-ups, leading to severe equipment damage. New Surplus guarantees original factory tolerance and full operating service life.

3. What types of valves does the E-ME-AC-05F driver card control?

The E-ME-AC-05F is designed specifically for Atos proportional directional valves without an onboard position transducer (e.g., DHZO, DKZO, DPZO series without LVDT feedback) or pressure/flow control valves requiring PWM solenoid excitation.

4. Do I need special software or programming tools to calibrate this card?

No, the E-ME-AC-05F requires no digital software or programming tools. Calibration is completed manually using a small insulated screwdriver on the front-facing multi-turn trim potentiometers (BIAS, SCALE, RAMP) while monitoring output test points with a digital multimeter.

5. What warranty coverage is provided with this driver card?

We support this New Surplus Atos E-ME-AC-05F analog driver card with a full 1-year functional warranty. Every card is inspected for physical pin integrity and power-on readiness prior to shipment.
