3. Key Technical Specifications
| Parameter | Specification Value |
| Power Supply Voltage | 24 VDC Nominal (Stabilized, 20 to 30 VDC range) |
| Max Power Consumption | 50 W |
| Current Output Range | Up to 2.5 A max per solenoid channel |
| Format Standard | 7U Eurocard plug-in format (DIN 41494) |
| Front Panel Interface | Potentiometers for bias, scale, ramp time |
| Command Signal Options | 0 to ±10 VDC or 4 to 20 mA configurations |
| Mating Connector | 32-pin DIN 41612 plug type D or F |
| Ramp Generator Time | Adjustable from 0.1 to 5.0 seconds |
| Enclosure Rating | IP00 (Requires subrack or enclosure mounting) |
| Operating Temperature | 0 to +50 °C (+32 to +122 °F) |
4. Product Introduction & Supply Chain Strategy

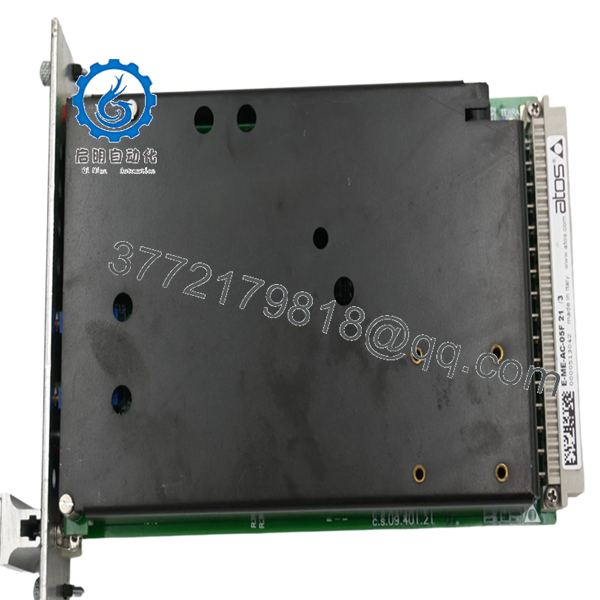

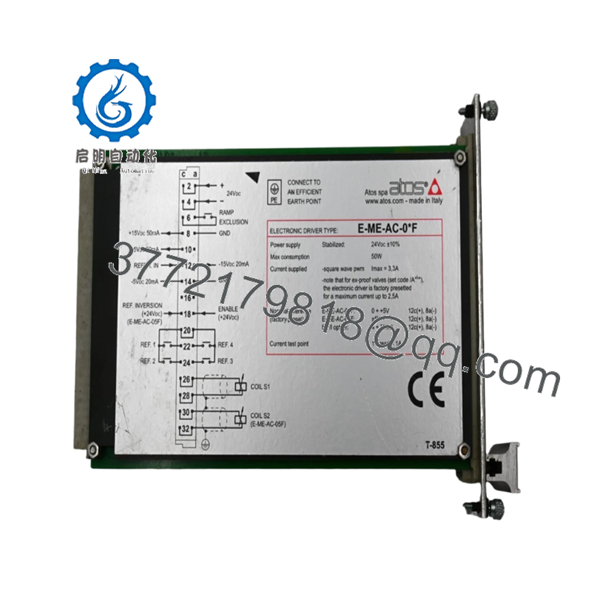

The ATOS E-ME-AC-05F is an analog electronic driver card built in the Eurocard format, designed specifically to control ATOS proportional valves without position transducers. The driver regulates the electrical current sent to the valve’s solenoids, translating low-voltage analog command signals into precise magnetic force to control hydraulic flow and pressure. It features built-in electronic adjustments for bias, scale, and ramp control directly on the front panel, allowing system technicians to tune hydraulic response profiles for heavy industrial machinery.
As ATOS transitions its product lines toward digital fieldbus architectures, legacy analog cards like the E-ME-AC-05F have become difficult to source through traditional factory channels. Procuring this module as a New Surplus asset provides a vital safety net for legacy hydraulic machinery. Opting for a brand-new surplus card eliminates the structural risks of refurbished alternatives, such as thermal component drift and degraded output transistors that cause proportional valves to jitter or stall. This procurement strategy drastically lowers your Total Cost of Ownership (TCO) by avoiding retrofits and preventing catastrophic production bottlenecks caused by an unexpected valve driver failure.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Turn off the main electrical supply to the hydraulic control cabinet and verify that the hydraulic pump motor is locked out.
- Ensure all residual pressure is bled from the hydraulic accumulator lines associated with the proportional valve.
- Put on a grounded ESD wrist strap and connect its terminal to the main grounding strip of the subrack enclosure.
- Document the exact positions of the front-panel tuning potentiometers (Bias, Scale, Ramp) on the active driver card using a high-resolution photograph.
Stage 2: Removal
- Loosen the upper and lower thumb screws or retaining hardware fixing the Eurocard front panel to the chassis rail.
- Grasp the card extractor tabs firmly at both ends of the front plate.
- Pull the card straight outward from the subrack chassis with a steady, uniform force to disengage the 32-pin DIN 41612 backplane connector.
- Slide the card completely out of the chassis guides and place it inside a dedicated anti-static shielding bag.
Stage 3: Installation (Clone & Seat)
- Withdraw the replacement New Surplus E-ME-AC-05F from its sealed factory packaging.
- Verify that the rear 32-pin connector is clear of debris and that no contact pins are bent or tarnished.
- Align the upper and lower edges of the Eurocard board with the card guides inside the vacant subrack slot.
- Slide the module backward until the rear connector makes contact with the backplane socket, then push firmly to seat the pins. Tighten the front panel retaining screws.
Stage 4: Power-On & Testing
- Re-energize the 24 VDC control power circuit to the electronics rack while keeping the main hydraulic pump power off.
- Confirm that the front panel power indicator LED illuminates and that no error lights are triggered.
- Inject a low-level analog command signal (e.g., +1 VDC) from your PLC platform and check that the driver outputs a corresponding current proportional to the signal.
- Safely start the hydraulic system pump and monitor the cylinder or motor movement, adjusting the front potentiometers if necessary to match original system dynamics.
- E-ME-AC-05F
- E-ME-AC-05F
6. Firmware/Software Versions & Upgrade Notes
As a purely analog electronic control module, the E-ME-AC-05F does not utilize microprocessor firmware, runtime operating systems, or programming software. System integration and logic synchronization are managed entirely by physical circuit pathways, onboard logic components, and hardware components.
When replacing older generations or alternative configurations of this amplifier card, you must confirm that the physical jumper positions on the circuit board (such as those selecting voltage vs. current command inputs) are arranged identically to your plant’s original baseline design. Changing jumper layouts without adjusting the incoming PLC analog output card will prevent the proportional valve from responding correctly to command signals and may cause the system to lock up.
7. Frequently Asked Questions (FAQ)
Q: Why does a New Surplus ATOS board command a higher price than a refurbished card?
A: Proportional hydraulic controls require highly stable analog current regulation. Refurbished boards are often exposed to long-term thermal fatigue inside industrial enclosures, which degrades internal capacitors and causes output values to drift over time. This New Surplus card provides zero-hour components, delivering true factory reliability and precise signal output without the risk of early failure common to used hardware.
Q: Are these driver cards shipped in their original factory-sealed boxes?
A: Yes. Our New Surplus units are supplied in their original factory anti-static packaging or high-grade ESD-safe boxes. They are opened exclusively by our engineering teams to perform visual validation and quality tracking audits before final dispatch.
Q: Can this Eurocard module be pulled out or hot-swapped while the 24 VDC rack is powered?
A: No. Removing an analog proportional driver while the subrack is energized can cause an inductive arc across the 32-pin DIN connector. This can damage the gold contact plating and generate voltage spikes that fry sensitive input circuits on the card. Always turn off the 24 VDC control power before extraction.
Q: What happens if the ramp potentiometer is misadjusted on the replacement board?
A: The ramp potentiometer determines how quickly the driver changes its current output when the command signal shifts. If the ramp time is set too long, the proportional valve will respond sluggishly. If it is set too short, the valve will shift abruptly, which can cause hydraulic shock or pressure spikes in your piping. Use your original documentation or photos to set the potentiometers to their correct starting positions.
Q: Does this amplifier card support feedback signals from a valve LVDT position transducer?
A: No, the E-ME-AC series is designed specifically for proportional valves without position transducers (open-loop control). If your system uses a valve with an integral LVDT transducer for closed-loop position control, you will need an alternative driver series, such as the E-ME-T or digital equivalents.
Q: What type of warranty protection covers this New Surplus component?
A: We provide a comprehensive1 year replacement warranty on all New Surplus modules. This commitment matches or exceeds typical OEM new-equipment policies, offering complete financial and operational security for your plant maintenance budgets.
