Key Technical Specifications
- Drive Type: Digital brushless servo control, single-phase input
- Input Voltage Range: 115–230 VAC
- Rated Output: 230 V, approximately 2.5 A continuous (10 A input circuit breaker referenced by at least one specialty distributor)
- Feedback Type: Resolver feedback
- Command Inputs Supported: 0–10 VDC, ±10 VDC standard analog, current loop input, pulse-and-direction input, electronic handwheel/flywheel input
- Logic Power: 24 VDC, customer-supplied external source (option)
- Communication: RS232 serial port
- Optional Interface: CAN bus (resolver feedback configurations only)
- Regeneration: Internal or external regeneration option available
- Mounting/Enclosure: Panel mount, internal power supply
- Compliance: UL and CE approved (per Baldor FlexDrive line-level documentation)
- Motor Pairing: Cross-referenced in Baldor’s FlexDrive datasheet against multiple BSM-series servo motors (e.g., BSM50N and BSM63X frame sizes) at varying speed/current combinations
- ⚠️ Exact operating temperature range, IP rating, and unit weight vary or are unconfirmed across current listings — verify against the official Baldor FlexDrive datasheet or nameplate before specifying.
Product Introduction

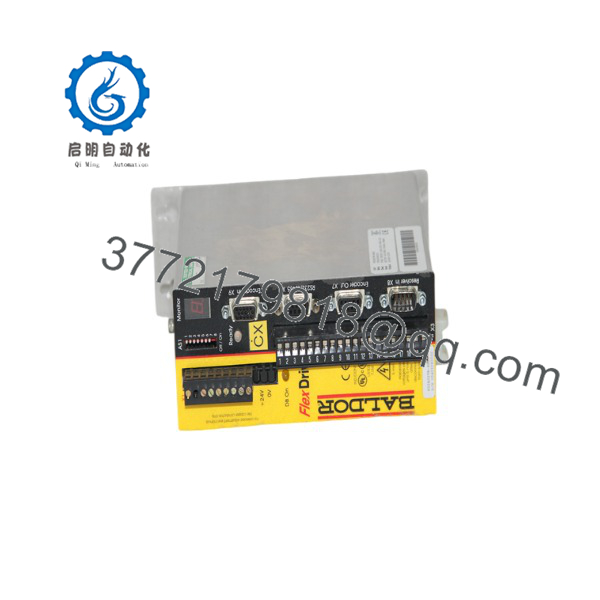

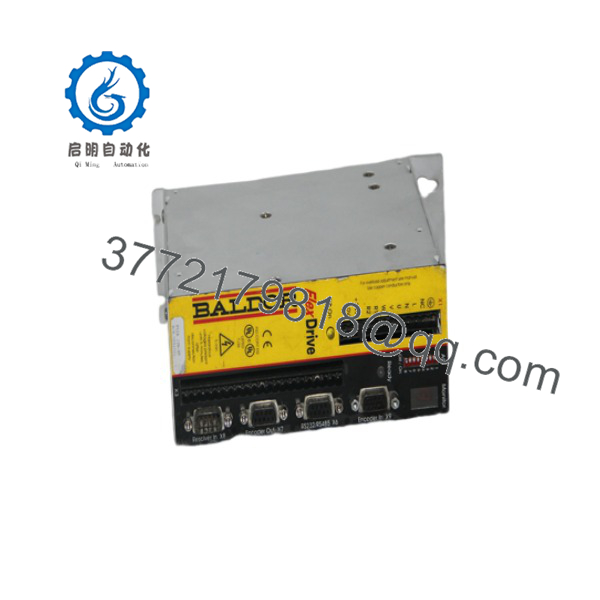

The Baldor FD2A02TR-RN20 is a digital servo drive from Baldor’s FlexDrive series, built to control brushless AC servo motors using resolver feedback. It runs on 115–230 VAC single-phase input and accepts multiple command formats — ±10V analog, current loop, pulse-and-direction, or electronic handwheel — which lets it slot into older motion systems without forcing a rewrite of the command interface.
This drive shows up often as a replacement part on FlexDrive-based systems because Baldor cross-references it against specific BSM-series motor combinations, so swapping in a genuine FD2A02TR-RN20 avoids the guesswork of pairing an unverified drive-motor combination. RS232 connectivity and an optional CAN bus interface (resolver-only) cover both standalone commissioning and networked motion setups.
FD2A02TR-RN20
FD2A02TR-RN20
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Drive won’t power up, no display/status LED | Input voltage out of range or blown input fuse/breaker | ✅ High | Measure incoming line voltage at the input terminals; confirm it’s within 115–230 VAC | Fix input power first — this is the most common no-power complaint on this series |
| Resolver fault or position error at startup | Resolver wiring fault, not necessarily a drive fault | ❌ Low-Moderate | Check resolver cable continuity and connector seating at both motor and drive ends | Isolate resolver wiring before condemning the drive |
| Motor runs rough or hunts at low speed | Tuning/gain settings mismatched to the connected motor | ❌ Low | Confirm the motor model matches one of Baldor’s cross-referenced BSM pairings for this drive | Retune per the motor’s rated combination rather than replacing hardware |
| RS232 communication drops or won’t connect | Cable, baud rate, or port configuration mismatch | ❌ Low | Verify cable pinout and communication settings against the FlexDrive manual | Confirm software-side settings before assuming a hardware fault |
| Drive trips on overcurrent under load | Regeneration option miswired, or load genuinely exceeds rated output | ✅ Moderate | Check internal/external regeneration wiring; measure actual load current against the ~2.5 A rating | If load consistently exceeds rating, this may be a sizing issue, not a drive defect |
If these checks don’t resolve it, send us the drive’s fault code display (if present) and a description of the motor it’s paired with — that narrows down whether it’s a wiring, tuning, or drive-level issue fast.
Frequently Asked Questions (FAQ)
Will this drive work with any brushless servo motor, or does it need to match a specific model?
Baldor’s own FlexDrive documentation cross-references this drive against specific BSM-series motors at particular current and speed ratings — it’s not a universal one-size-fits-all pairing. Check your motor’s exact BSM part number against the cross-reference chart before assuming compatibility.
Can I run this without a resolver?
The documentation we could verify ties this specific model to resolver feedback, including the CAN bus option, which is explicitly resolver-only. If your system uses encoder feedback instead, you likely need a different FlexDrive variant — worth confirming before you order.
Is 24V logic power built in, or do I need to supply it separately?
You supply it. The drive’s logic power is designed to come from a customer-provided external 24 VDC source, not from an internal supply — so budget for that in your panel design if you’re building a new system around this drive.
Can I hot-swap this drive while the motor is running?
No — treat this like any AC servo drive: kill input power and confirm the DC bus has discharged before disconnecting or connecting the unit. Doing it live risks damaging the drive’s power stage and puts you at risk from stored bus voltage.
Why do the specs I find online for this exact drive not all match?
Because a chunk of what’s floating around for this part number looks like generic reseller copy rather than pulled from an actual Baldor datasheet — weight, IP rating, and even some voltage figures conflict between listings. Cross-check anything critical against Baldor’s official FlexDrive documentation or the drive’s own nameplate before you rely on it.
Is this new, refurbished, or used?
Depends entirely on the seller — this model circulates through OEM channels and secondary/repair markets since it’s part of an older Baldor product line. Get a written condition statement (tested-used, refurbished, or new-surplus) before purchase rather than assuming from the listing photo alone.
