3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 16 |
| Input Types | RTD (3-wire or 4-wire) and/or isolated-tip Thermocouple |
| Input Impedance | >1 MΩ per lead |
| Power Consumption | 3 W nominal |
| TC Types Supported | E, J, K, T |
| RTD Types Supported | 100 Ω Pt (α=0.00385 or 0.00392), 120 Ω Ni, 10 Ω Cu |
| Resolution | 1 °C or 1 °F |
| Accuracy (typical) | ±3 °C at +25 °C (internal termination) |
| Front-Panel LEDs | OK, TX/RX, Bypass |
| Dimensions (Monitor) | 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in) |
| Weight | 0.91 kg (2.0 lb) typical |
| Operating Temperature | –30 °C to +65 °C |
| Configuration | 3500 Rack Configuration Software; supports mixed RTD/TC inputs |
4. Product Introduction
The Bently Nevada 145988-02 is the front monitor module for the 3500/65 16-Channel Temperature Monitor. It occupies one full-height front slot in a 3500 rack and conditions up to 16 RTD or isolated-tip thermocouple inputs.
The module compares measured temperatures against user-programmable alert and danger setpoints and is configured via the 3500 Rack Configuration Software. It accepts isolated-tip TCs, 3-wire or 4-wire RTDs, or any combination of the two. This higher channel density makes it the preferred solution when many temperature points (bearings, windings, lube oil, process) must be monitored in a single rack slot.

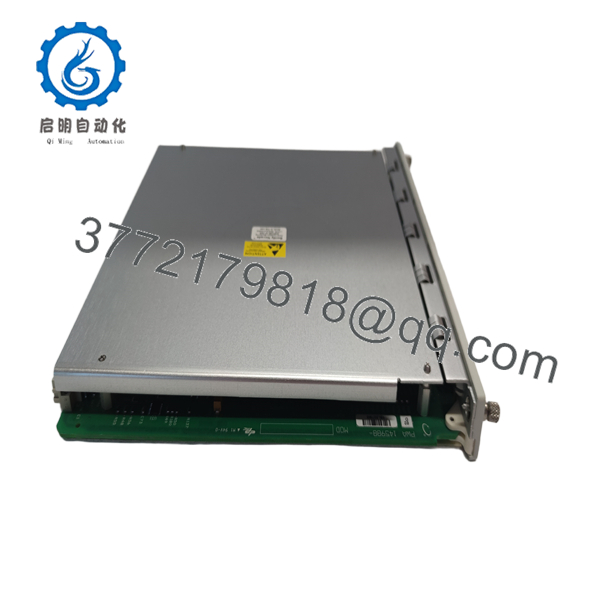

- 3500/65 145988-02

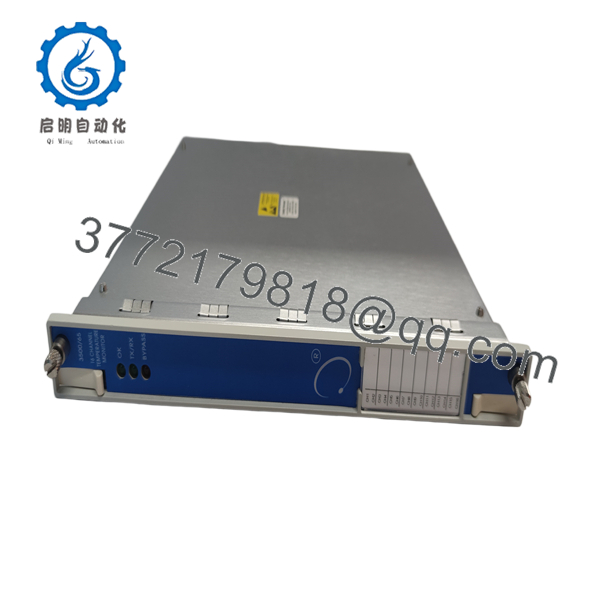

- 3500/65 145988-02
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Channel Not OK | Open/shorted sensor or wrong wiring | ✅ High | Measure sensor resistance or mV at I/O terminals | Verify field wiring and sensor type first |
| Incorrect temperature reading | Wrong sensor type or full-scale range configured | ✅ High | Check channel configuration in rack software | Match software setting exactly to installed sensor |
| Multiple channels drifting | Common-mode noise or ground loop | ✅ Medium | Compare readings with a portable thermometer | Confirm proper shielding and grounding |
| Module will not communicate | Backplane contact or power issue | ❌ Low | Reseat module; verify power supply OK LEDs | Confirm both power supplies online if redundant |
| Intermittent readings after install | Loose connector or ESD damage | ✅ High | Reseat Euro-style connector; inspect pins | Always use ESD strap; torque terminals per manual |
| High residual error on copper RTD | 10 Ω Cu RTD accuracy limitation | ❌ Low | Use platinum RTD if higher accuracy required | Platinum RTDs (α=0.00385) are preferred |
If symptoms persist, capture front-panel LED status, a full diagnostic log from the 3500 Rack Configuration Software, and photos of the I/O module face, then contact technical support.
6. Frequently Asked Questions (FAQ)
Q: How many channels does the 3500/65 provide compared with the 3500/60 or /61? A: The 3500/65 provides 16 channels. The 3500/60 and 3500/61 provide 6 channels each.
Q: Can I mix RTD and thermocouple inputs on the same module? A: Yes. The 3500/65 supports any combination of isolated-tip TCs, 3-wire RTDs and 4-wire RTDs.
Q: Does it support hot-swap? A: The monitor can usually be removed and inserted with the rack powered, but always follow plant lockout procedures and the specific I/O module guidelines.
Q: Why is the price lower than a factory-new unit from Baker Hughes? A: This is New Original / New Surplus stock—genuine Bently Nevada parts that have never been installed in a running system. Units ship with a 1-year warranty after functional verification.
Q: Will my existing configuration file work after replacement? A: Yes, provided the sensor types and full-scale ranges match. Always back up the current configuration and note the exact firmware revision before swapping.
Q: What accuracy can I expect? A: Typical accuracy is ±3 °C at +25 °C for internal termination. Accuracy depends on sensor type, wiring method and full-scale range—consult the datasheet for exact figures.
Q: What is the typical lead time and warranty? A: Units are normally in stock for same- or next-day shipment. All modules carry a 1-year warranty against defects in materials and workmanship.
