Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 128229-01 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product Series | 3500 Machinery Protection System |
| Associated Monitor | 3500/42M Proximitor Seismic Monitor |
| Product Type | Prox/Seismic I/O module with internal terminations |
| Field Termination Type | Internal terminal strip / internal field wiring terminations |
| Monitor Channel Support | Supports one 3500/42M four-channel monitor |
| Supported Transducer Families | Proximitor, accelerometer, Velomitor, and Seismoprobe applications |
| Primary Measurements | Radial vibration, axial position, thrust position, eccentricity, velocity, and acceleration, depending on monitor configuration |
| Input Signal Range | −10 V DC to +10 V DC |
| Module Supply Voltage | 23.9 V |
| Module Supply Current | 45.5 mA |
| Module Power Consumption | 1.09 W for Prox/Accel or Velomitor configuration; verify the installed monitor configuration |
| Internal Module Connector | Euro-style, 10-pin connector header |
| Rack Installation | Rear I/O position associated with the installed 3500/42M monitor slot |
| Hazardous-Area Option | Dependent on the complete 3500/42M monitor order code and system approval option; verify the rack nameplate and project documentation |
| Service Role | Field-signal termination and routing; the monitor front card performs the configurable monitoring and alarm functions |
The OEM 3500/42M datasheet identifies 128229-01 as the Prox/Seismic I/O Module with internal terminations. It supports Seismoprobe inputs and can support Proximitor/accelerometer and Velomitor applications when used with the appropriate 3500/42M configuration. The OEM document specifies 23.9 V, 45.5 mA, and 1.09 W for the listed Prox/Accel and Velomitor configurations.
Product Introduction
The Bently Nevada 128229-01 is the rear I/O module used with a Bently Nevada 3500/42M Proximitor Seismic Monitor. It provides internal field-wire terminations and routes machine-protection signals from proximity probes, accelerometers, Velomitors, or Seismoprobes into the monitor and 3500 rack backplane.
This part is selected when a 3500/42M rack requires an internal-termination I/O configuration rather than an external terminal-block assembly. It does not replace the front 3500/42M monitor by itself. Match the installed monitor order code, sensor type, rack slot, field-wiring arrangement, and certification requirements before ordering.

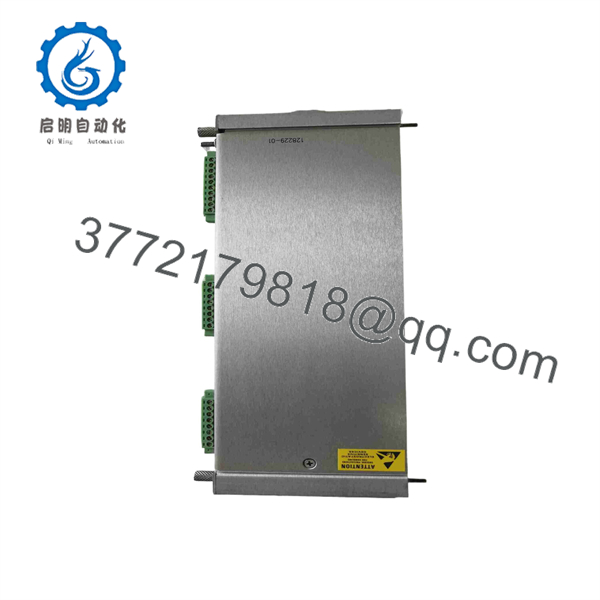

128229-01

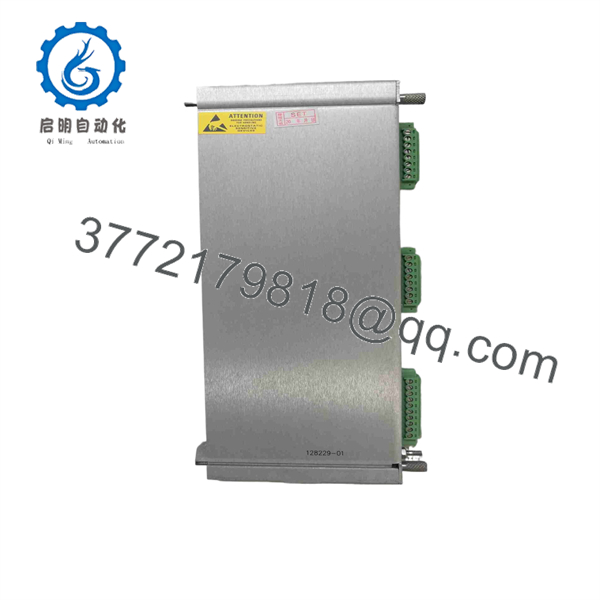

128229-01
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| 3500 monitor shows NOT OK or channel fault | Open probe circuit, shorted cable, failed transducer, incorrect gap voltage, damaged field termination | ✅ Medium | Use the 3500 Rack Configuration Software and monitor diagnostics to identify the failed channel. Measure the transducer supply and signal at the 128229-01 terminals against the approved loop drawing. | Check the probe, extension cable, and field wiring first. Replace the I/O module only after the sensor loop proves healthy. |
| All four channels on one monitor fail together | Rear I/O module not seated, front monitor not seated, rack backplane issue, monitor power problem | ✅ High | Confirm that the 3500/42M front monitor and its corresponding rear I/O module are fully seated in the same slot position. Check rack power and adjacent modules. | Reseat the monitor and 128229-01 with rack power removed under the approved procedure. Replace hardware only if the fault remains isolated to that slot. |
| One channel reads a fixed high or low value | Open signal conductor, short to common, failed sensor, incorrect transducer type, terminal wiring error | ✅ Medium | Disconnect the field cable only under an approved machinery-protection bypass procedure. Measure loop voltage and continuity, then compare with a known-good channel. | Trace the sensor loop before replacing the I/O module. One failed channel is more often a field-device or cable fault. |
| Vibration reading is noisy or unstable | Poor shield termination, cable damage, ground loop, EMI, loose terminal, incorrect sensor cable type | ✅ Medium | Inspect shield/drain-wire termination and terminal torque. Compare waveform and gap voltage with a known-good channel. Check routing near VFD output cables or high-current conductors. | Correct shielding and cable routing first. Do not use software filtering to hide a field-noise problem. |
| No reading after an I/O module replacement | Wrong I/O module type, connector not engaged, field wiring moved incorrectly, monitor configuration mismatch | ✅ High | Verify the installed rear card label is 128229-01. Confirm every field wire against the pre-removal photographs and loop drawings. Review the 3500 configuration file. | Install the correct I/O module for the 3500/42M monitor and restore the original wiring exactly. |
| Alarm activates immediately after replacement | Channel configuration mismatch, wrong sensor type, incorrect gap voltage, alarm setpoint problem, swapped field wires | ✅ Medium | Read channel configuration and alarm setpoints using 3500 Rack Configuration Software. Measure probe gap voltage and confirm the sensor family. | Do not bypass an alarm simply to return equipment to service. Correct the sensor configuration and wiring first. |
| Communication issue appears after servicing the rear card | Front monitor disturbed during service, rack connector not seated, configuration cable or rack communication issue | ❌ Low | Check the front monitor status, rack communication module, and all card seating. Review system event logs. | The 128229-01 is a rear signal-termination module; investigate the monitor, rack, and communications hardware before condemning it. |
| Card shows corrosion, moisture, or burnt terminals | Cabinet ingress, loose conductors, incorrect torque, field-voltage transient, contaminated atmosphere | ✅ High | De-energize the rack, remove the module, and inspect terminals, connector pins, insulation, and board surface under good lighting. | Replace a corroded or heat-damaged module. Correct the cabinet sealing, terminal torque, and source of the electrical stress before installing the replacement. |
❗ Do not confuse the 128229-01 with the front monitor. This is a rear I/O module with internal terminations for a 3500/42M system. It routes field signals; it does not independently perform monitoring, alarm logic, or rack communications. Replacing it will not fix a failed front monitor, a bad proximity probe, or a rack configuration error.
❗ Photograph every terminal and shield before removal. Proximity and vibration loops are sensitive to incorrect signal, common, and shield termination. Take photos of the board label, rack slot, field wires, cable shields, grounding point, and front monitor order code before disconnecting anything.
❗ Do not wire from memory. Similar Bently Nevada I/O modules can have different field termination layouts and sensor support. Confirm the exact 3500/42M wiring diagram, installed sensor family, and configuration file. A crossed probe signal or missing common can create an immediate NOT OK condition.
❗ Protect the machine before testing. This module often supports machinery-protection measurements on turbines, compressors, pumps, and generators. Any bypass, alarm inhibit, or channel test must follow the site’s approved machinery-protection procedure and require the correct operating authorization.
If the source of the problem remains unclear, provide technical support with photos of the front 3500/42M monitor label, rear 128229-01 label, rack slot, terminal wiring, sensor type, gap-voltage readings, diagnostic screenshots, and alarm event logs. Keep these checks in mind and you will save yourself 90% of typical rework time.
Frequently Asked Questions (FAQ)
What is the Bently Nevada 128229-01 used for?
The 128229-01 is a Prox/Seismic I/O Module with internal terminations for the Bently Nevada 3500/42M Proximitor Seismic Monitor. It provides the field-wiring interface between proximity or seismic transducers and the monitor installed at the front of the 3500 rack.
Does the 128229-01 work by itself?
No. It is not a standalone vibration monitor. The 128229-01 must be installed in the rear I/O position associated with a compatible 3500/42M front monitor. The front monitor processes signals, applies configured alarm limits, and communicates within the 3500 system; the rear module provides the field-signal connection path.
Which sensors can I connect to this module?
The OEM datasheet lists the 128229-01 for Seismoprobe use and states that Proximitor/accelerometer and Velomitor applications are also supported through the relevant 3500/42M configuration. Confirm the installed monitor configuration and sensor system before connecting or replacing wiring. A proximity-probe system, velocity sensor, and accelerometer each have different wiring and scaling requirements.
Is 128229-01 interchangeable with external-termination I/O modules?
No, not automatically. The 128229-01 uses internal terminations, meaning field wires land directly on the rear module. External-termination variants use different I/O hardware and cable/terminal arrangements. Match the existing rear I/O-module part number and the rack’s physical wiring method exactly.
Can I hot-swap the 128229-01?
Do not assume it is hot-swappable. Because this module terminates live machine-protection sensor circuits, removing it can create channel faults, alarms, and potentially a protection-system response. Follow the site’s approved protection bypass, alarm-management, lockout, and verification procedure before servicing the rear I/O module.
Will replacing the 128229-01 erase monitor programming?
Normally, the monitor configuration resides in the 3500 system configuration, not in the rear I/O termination module. However, replacement can still cause incorrect readings or alarms if field wiring, shields, sensor type, monitor settings, or module selection do not match the original installation. Save the rack configuration and record all terminal assignments before removal.
Why does my monitor still show NOT OK after I replaced the I/O module?
The usual causes are a failed proximity probe, damaged extension cable, incorrect gap voltage, open or shorted field wiring, wrong transducer configuration, or a problem in the front 3500/42M monitor. Start with the diagnostic channel, sensor-loop measurements, and a comparison against a known-good channel. The rear I/O module is only one part of the measurement chain.
Is the 128229-01 obsolete, and should I stock a spare?
